320-160mm LED display
CATEGORY AND TAGS:Fixed LED Display Fine pitch led display, P1.25_P1.53_P1.667_P1.86_P2_P2.5_P3.076 LED display, ultra slim LED display, wall mount display
universal indoor LED display module P1.25_P1.53_P1.667_P1.86_P2_P2.5_P3.076 LED display 320-160mm series compatible with W640*H480mm, W320*H640mm, W960*H480mm aluminum die casting cabinet for indoor fixed installation led video wall
enquiry- Description
- Specification
W320*H160mm module size is the most commonly used for different pixel pitch including P1.667 P1.86 P2 P2.5
and with aluminum die casting cabinet for indoor fixed installation.
It has different cabinet design and dimensions for most of your indoor LED display application.

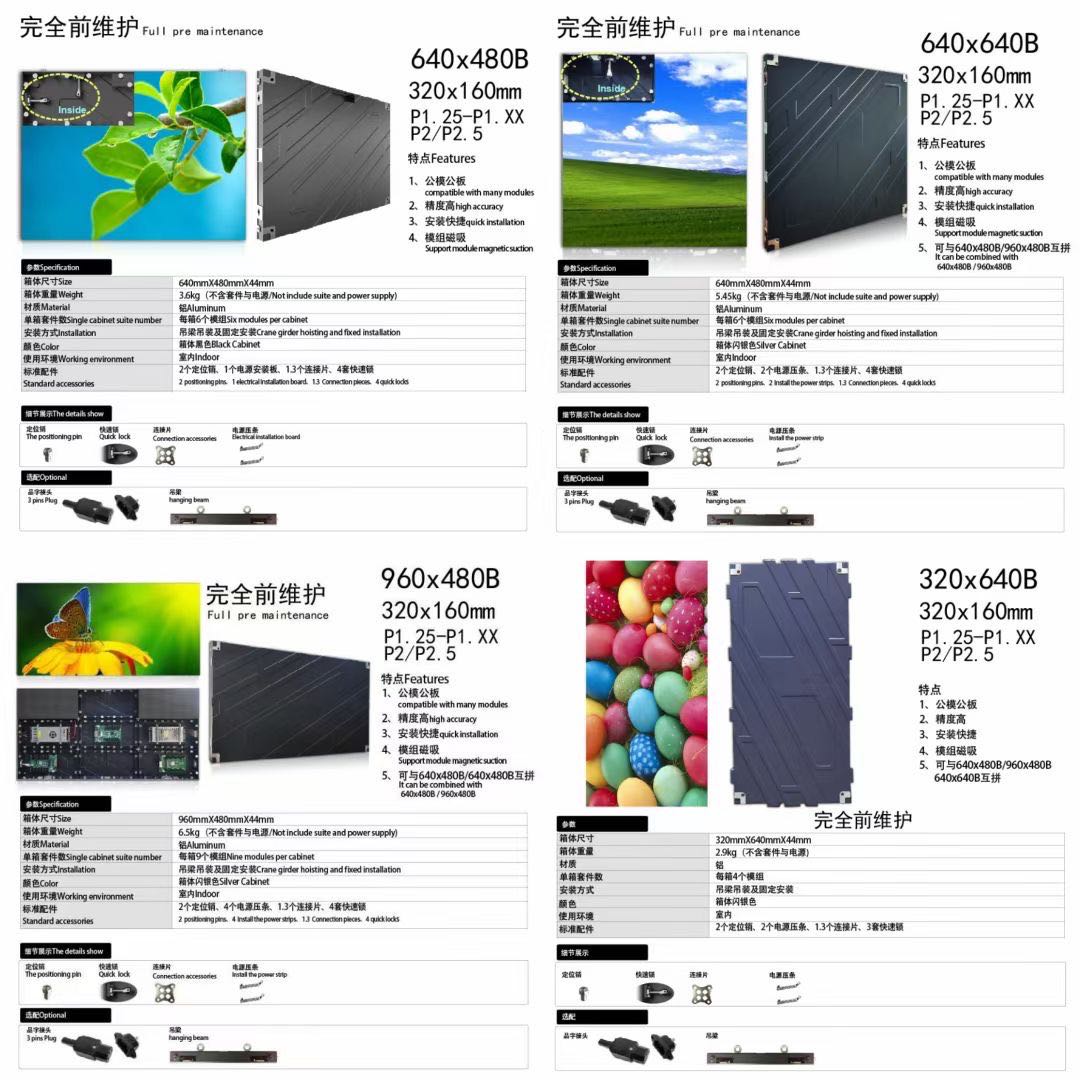

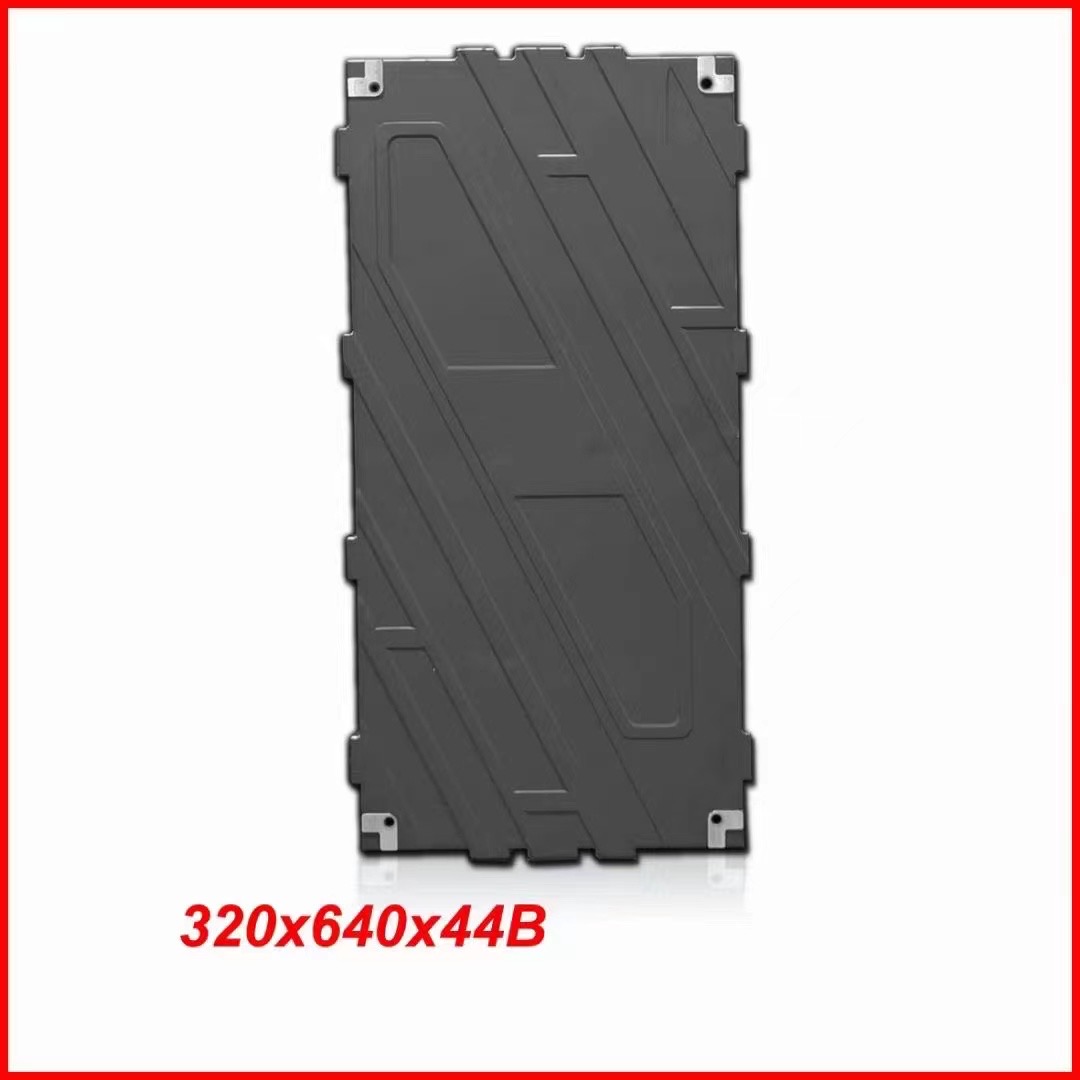

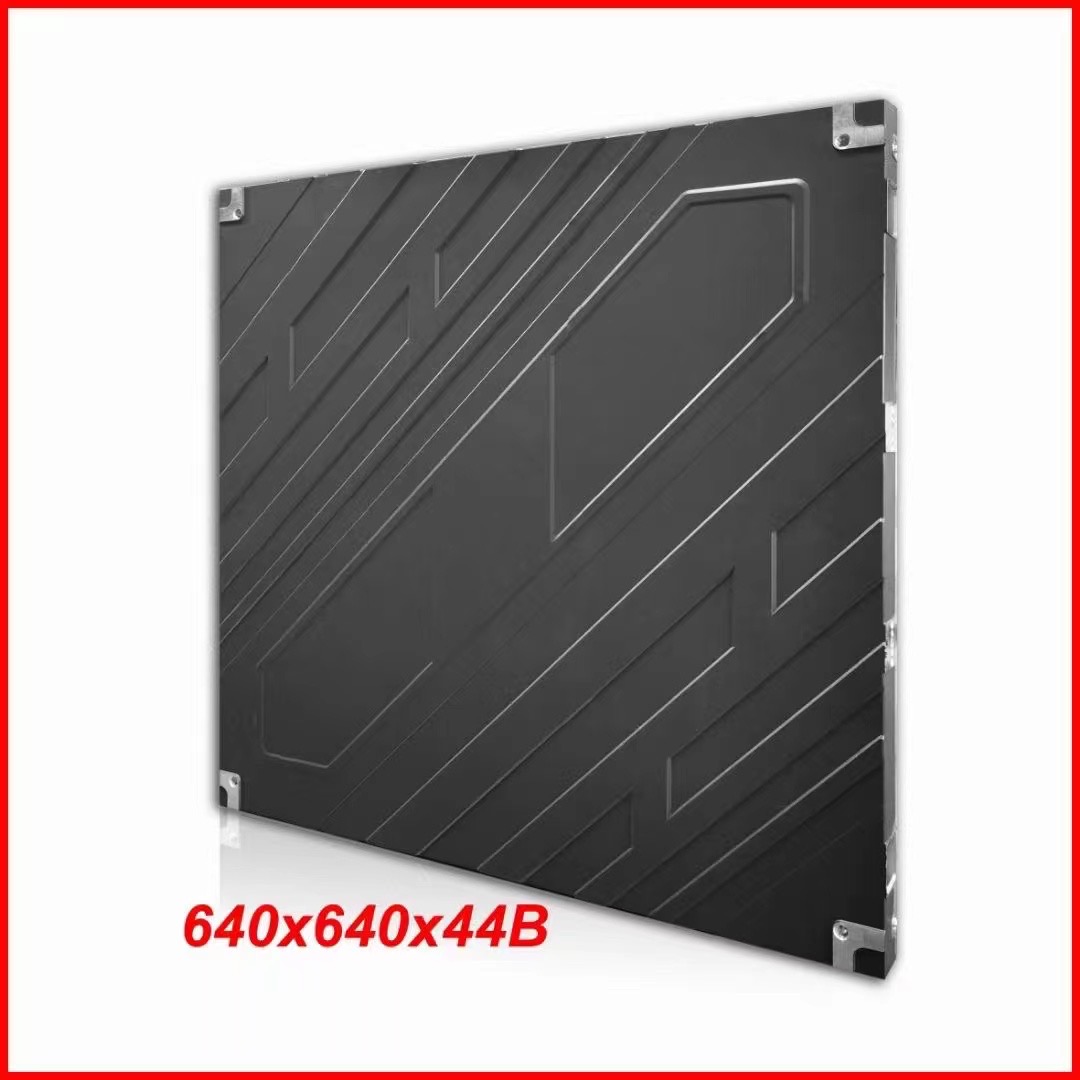

Common cabinet size:W640*H480mm, W640*H640mm, W320*H640mm .etc

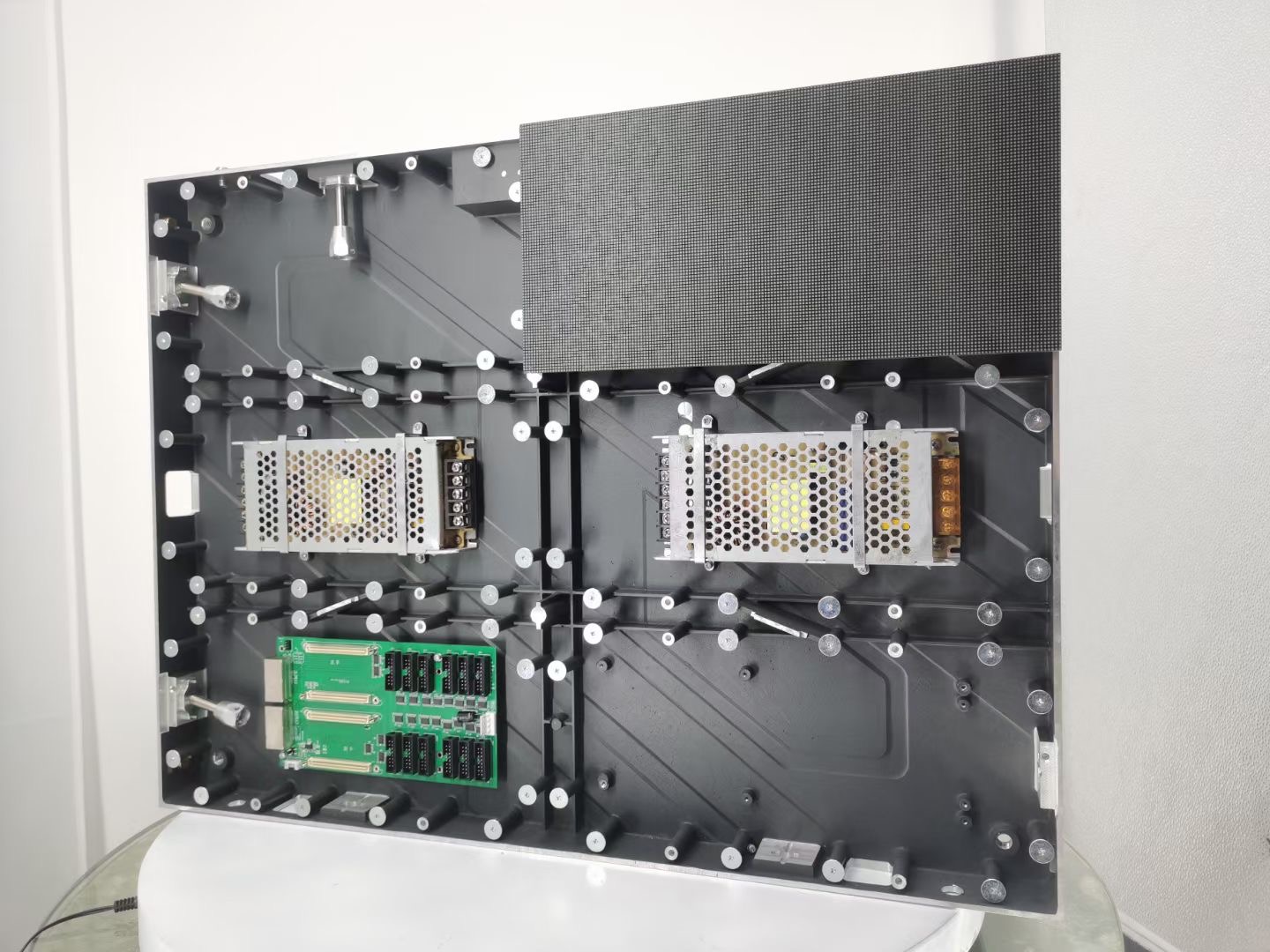

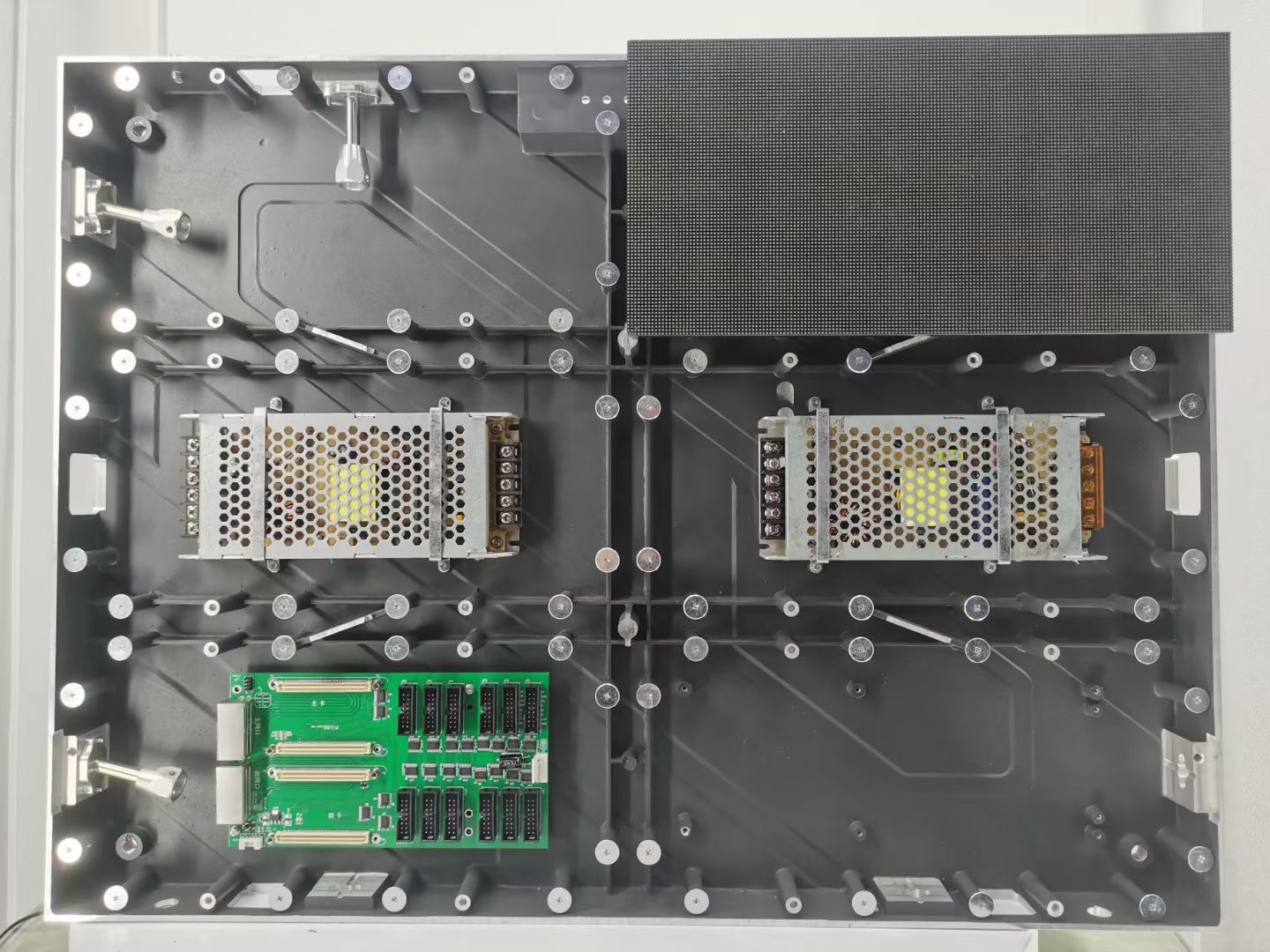

It is totally front service and front installation. ultra slim and light weight.

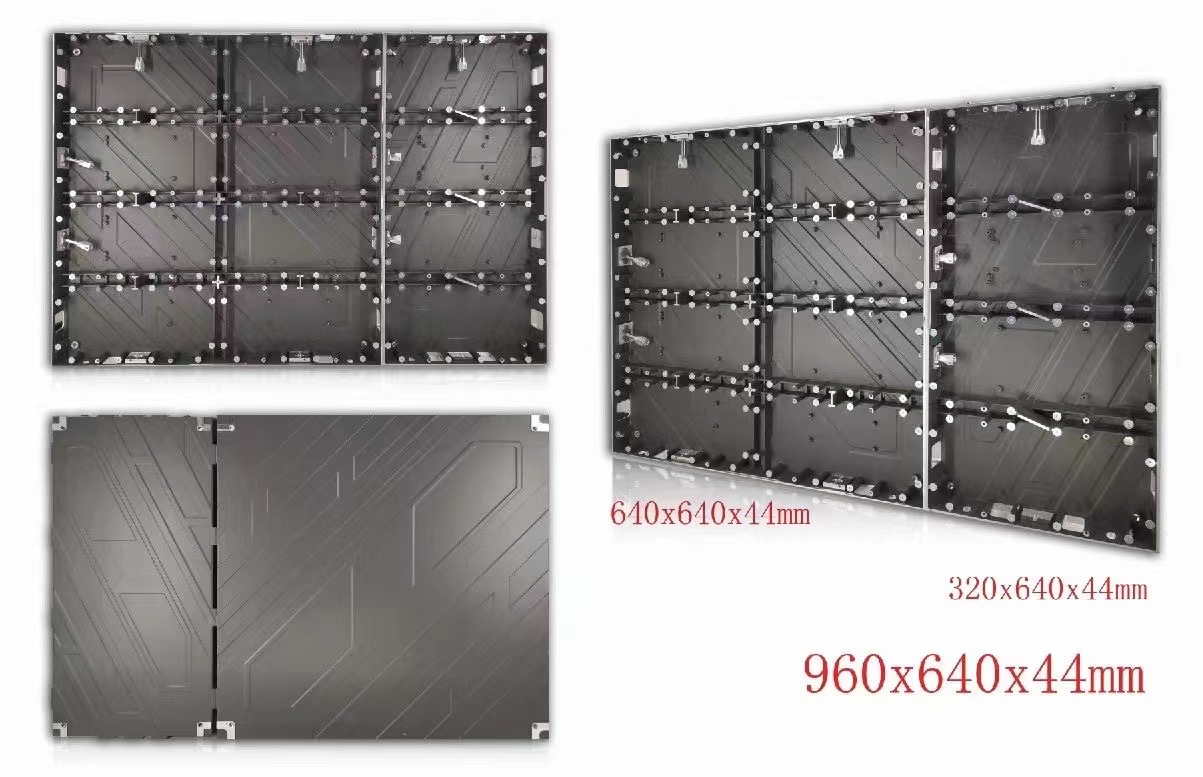

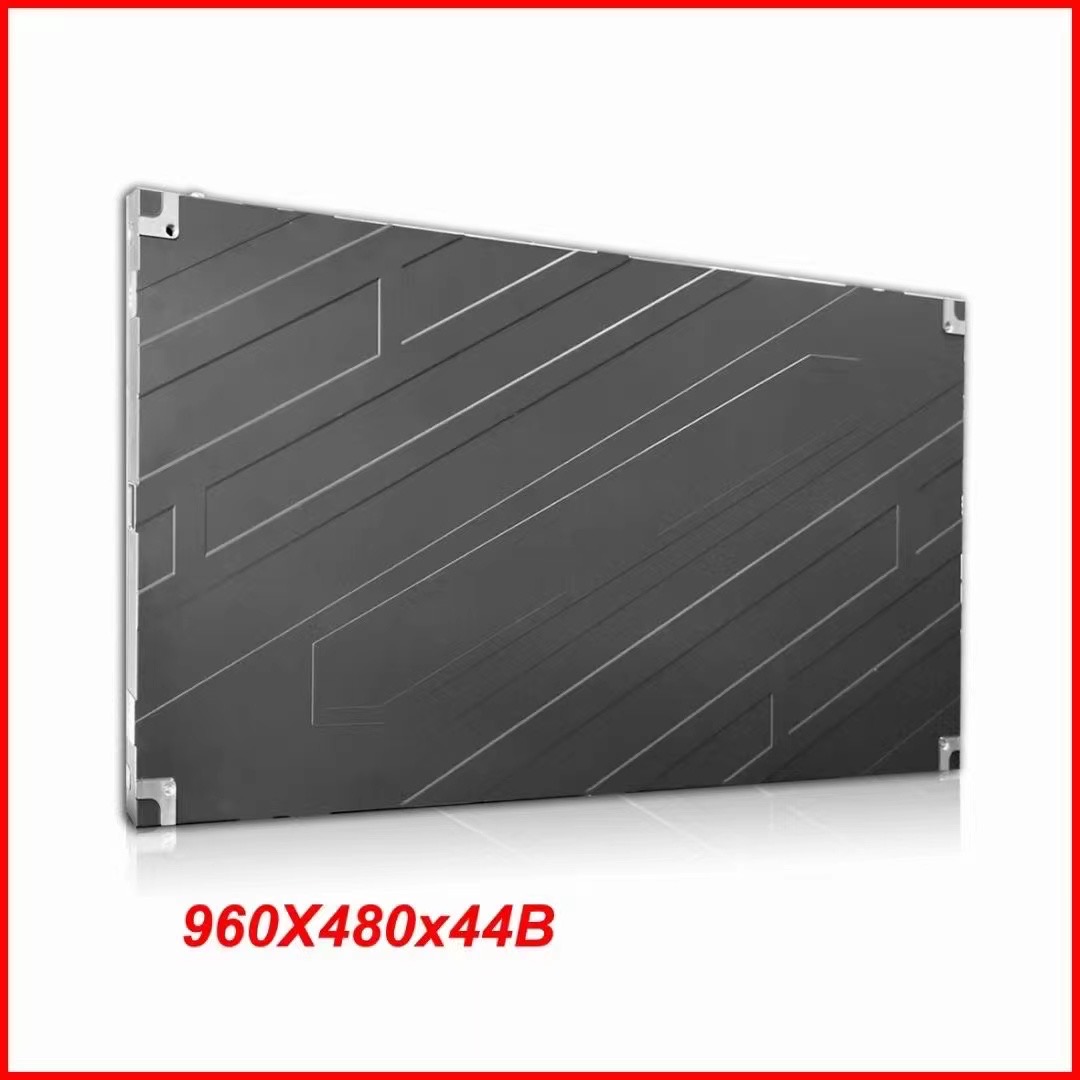

Different cabinet size sample

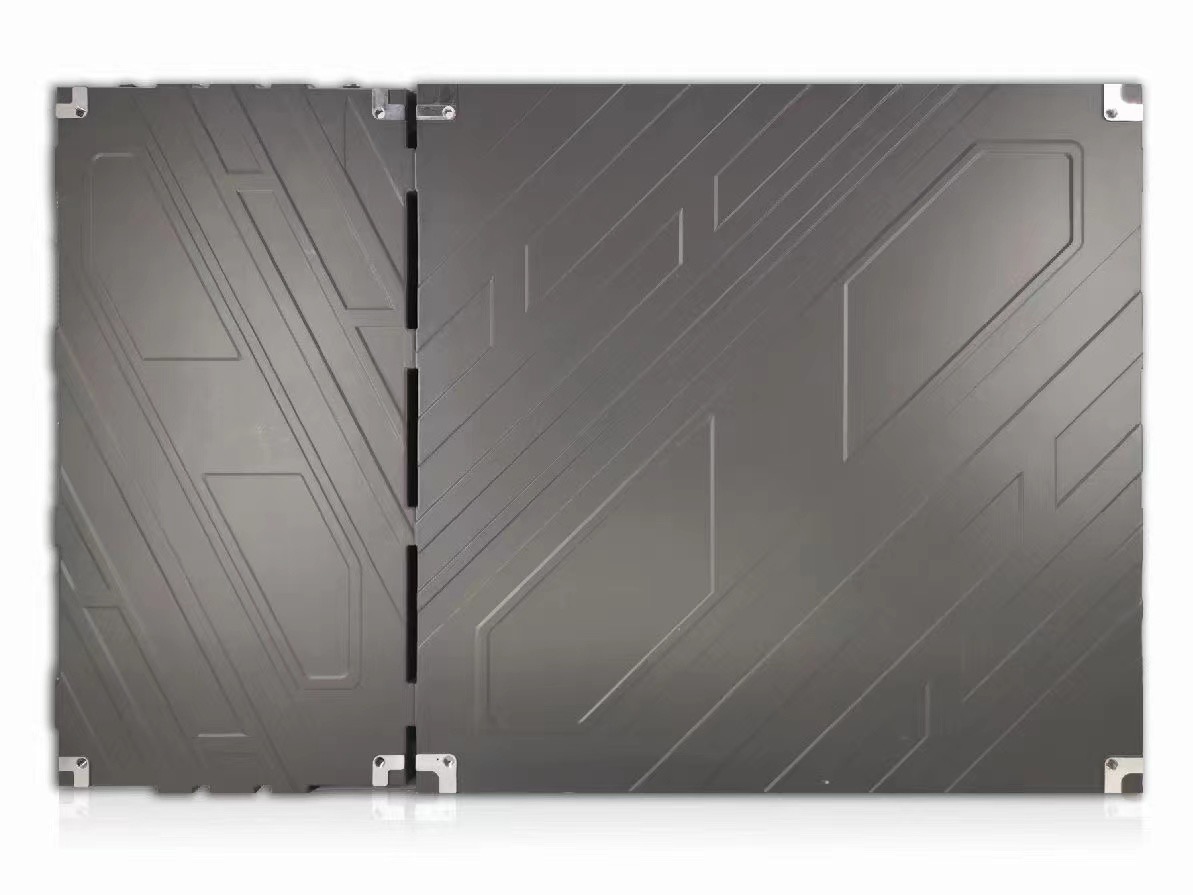

Different size can be put together for combination use

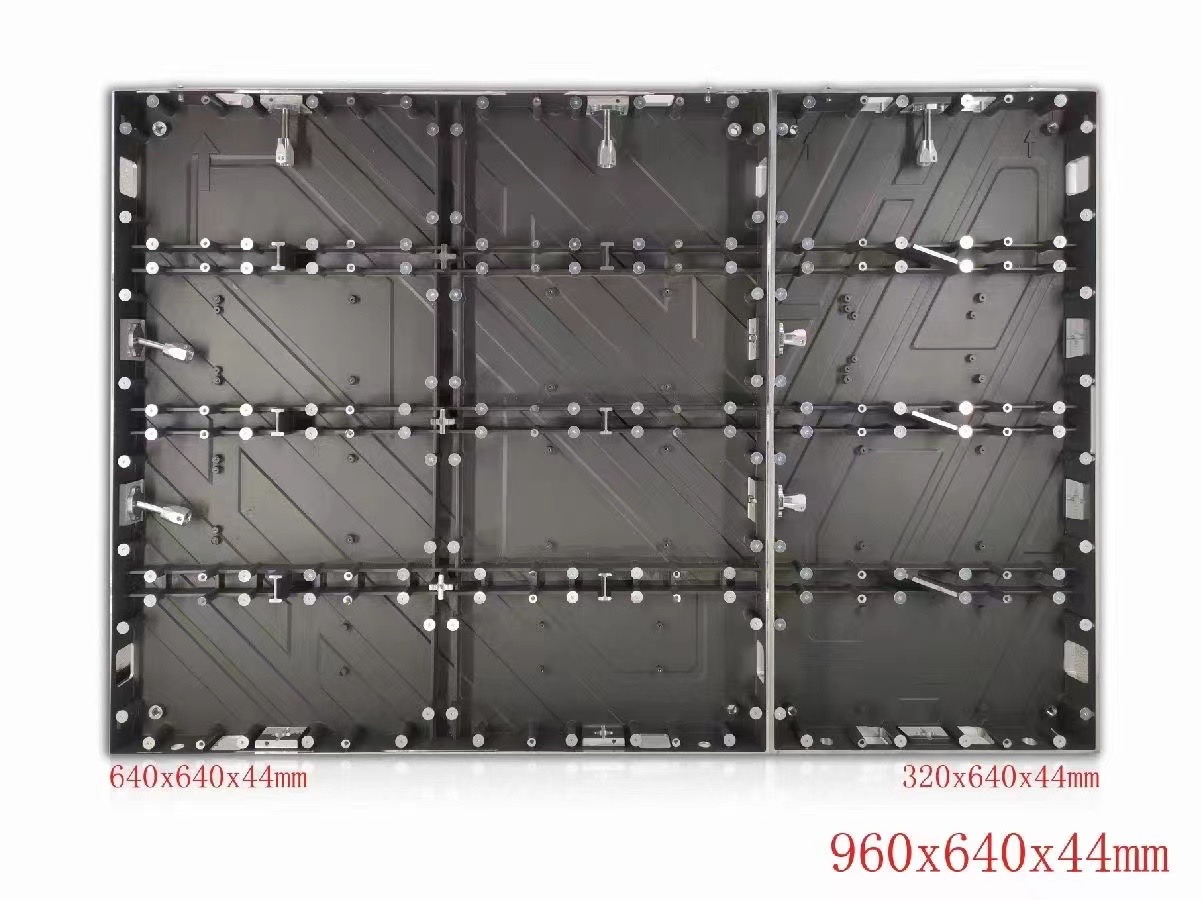

W320*H640 and W640*H640mm combination use

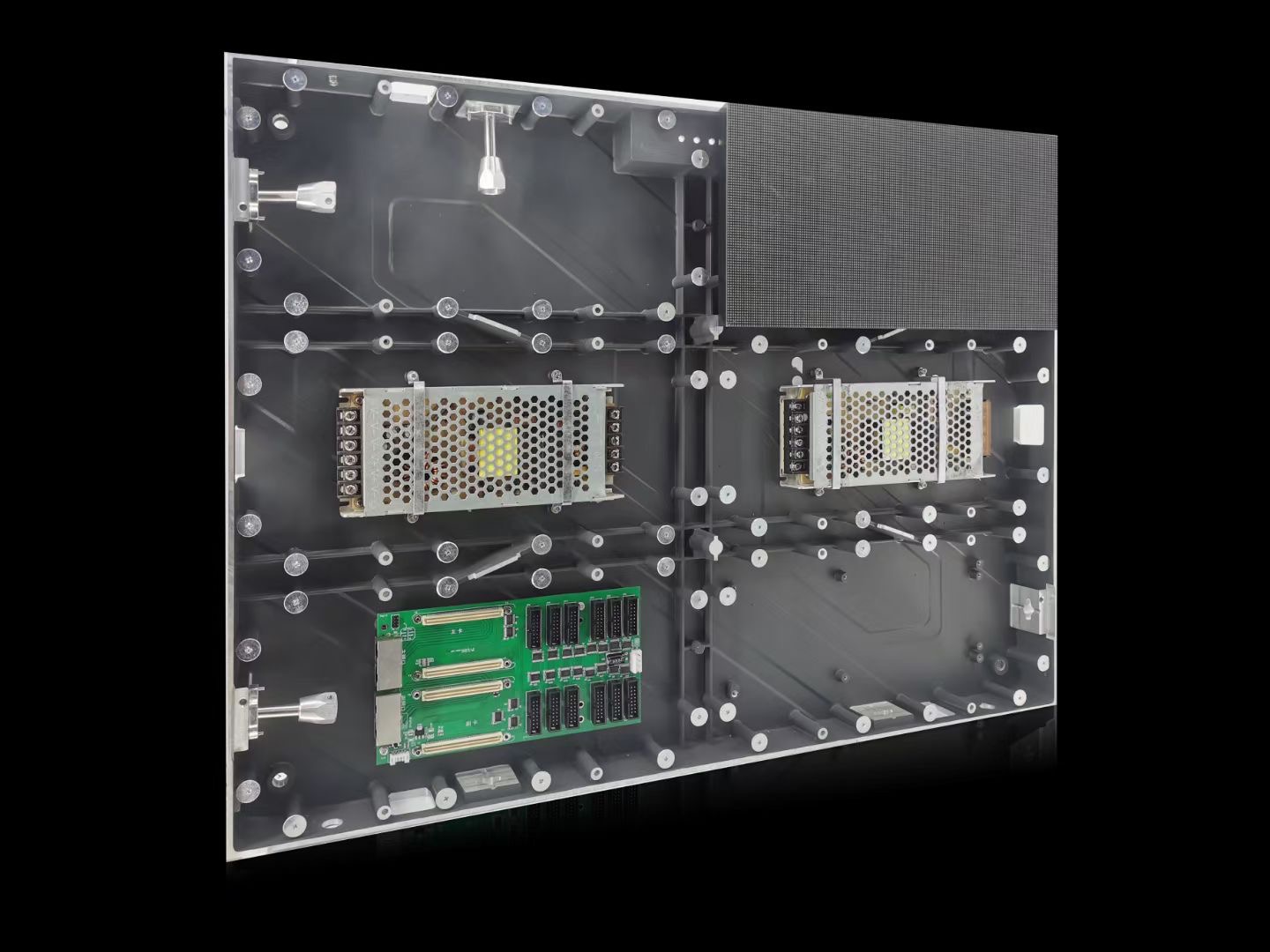

Support dual backup for receiver and power supply

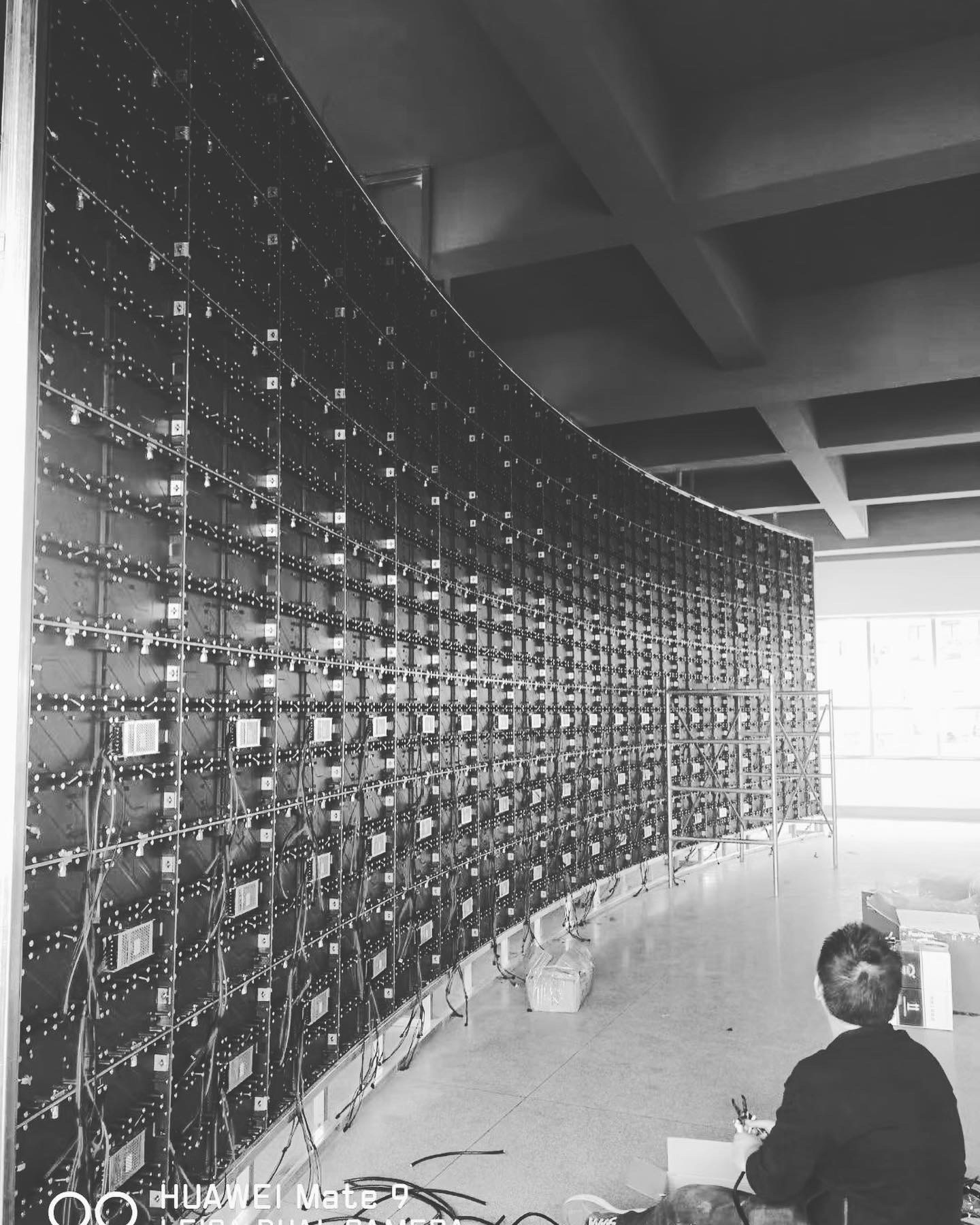

suitable for large area wall mounted LED display video wall.
| Model | P1.25 | P1.53 | P1.667 | P1.86 | P2 | P2.5 | P3.076 |
| LED lamp | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Pixel pitch（mm） | 1.2500 | 1.5380 | 1.6670 | 1.8600 | 2.0 | 2.5 | 3.076 |
| LED Lamp brightness（mcd) | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd |
| LED wavelength(nm) | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm |
| Pixel density （pixels/m2） |
640,000 | 422,500 | 360,000 | 288,900 | 250,000 | 160,000 | 105,688 |
| Module size（mm） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） |
| Module resolution（W×H） | 256×128 | 208×104 | 192×96 | 172×86 | 160×80 | 128×64 | 104×52 |
| Module weight（kg） | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Module Max. power（W） | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Module layout（W×H） | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 |
| Cabinet size（mm） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） |
| Cabinet resolution（W×H） | 512×384 | 416×312 | 384×288 | 344×258 | 320×240 | 256×192 | 208×156 |
| Cabinet Area（m2） | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 |
| Cabinet weight（kg） | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Flatness（mm） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Maintenance way | Front service | Front service | Front service | Front service | Front service | Front service | Front service |
| Cabinet Material | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting |
| Brightness calibration | support | support | support | support | support | support | support |
| Color temperature calibration | support | support | support | support | support | support | support |
| white balance brightness（nits） | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥800（at 6500K）adjustable | ≥800（at 6500K）adjustable |
| color temperature（K） | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable |
| Viewing angle（horizental/Vertical°） | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| lighting center offset | <3% | <3% | <3% | <3% | <3% | <3% | <3% |
| brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max. power（W/m2） | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Ave. power（W/m2） | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Power supply | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） |
| Frame frequency（Hz） | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| Scan rate | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/32scan | constant current,1/32scan |
| Gray scale | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 |
| Refresh rate（Hz） | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| color depth | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Video display | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K |
| working temperature/Humidity（℃/RH） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） |
| Storage temperature/humidity（℃/RH） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） |
