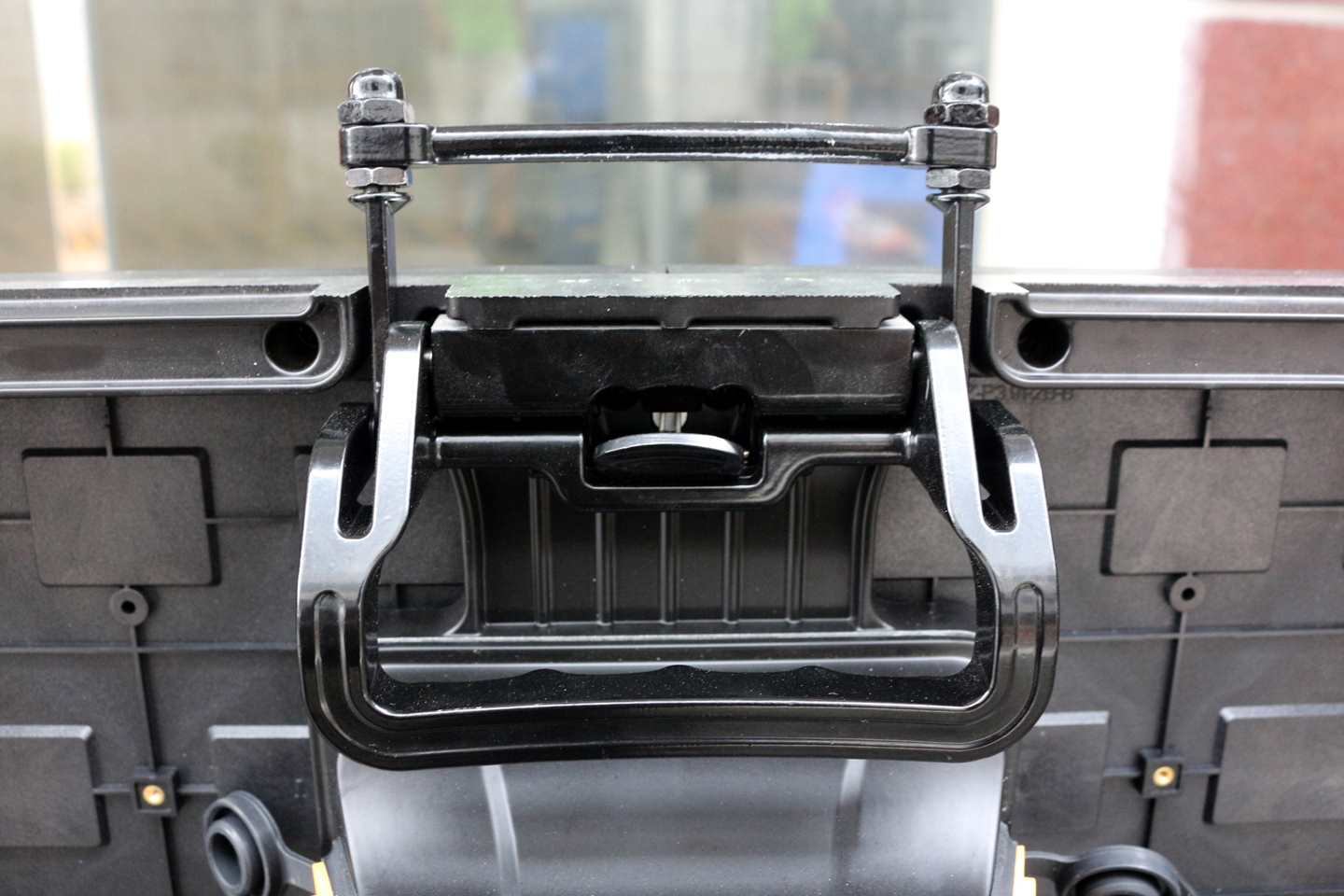

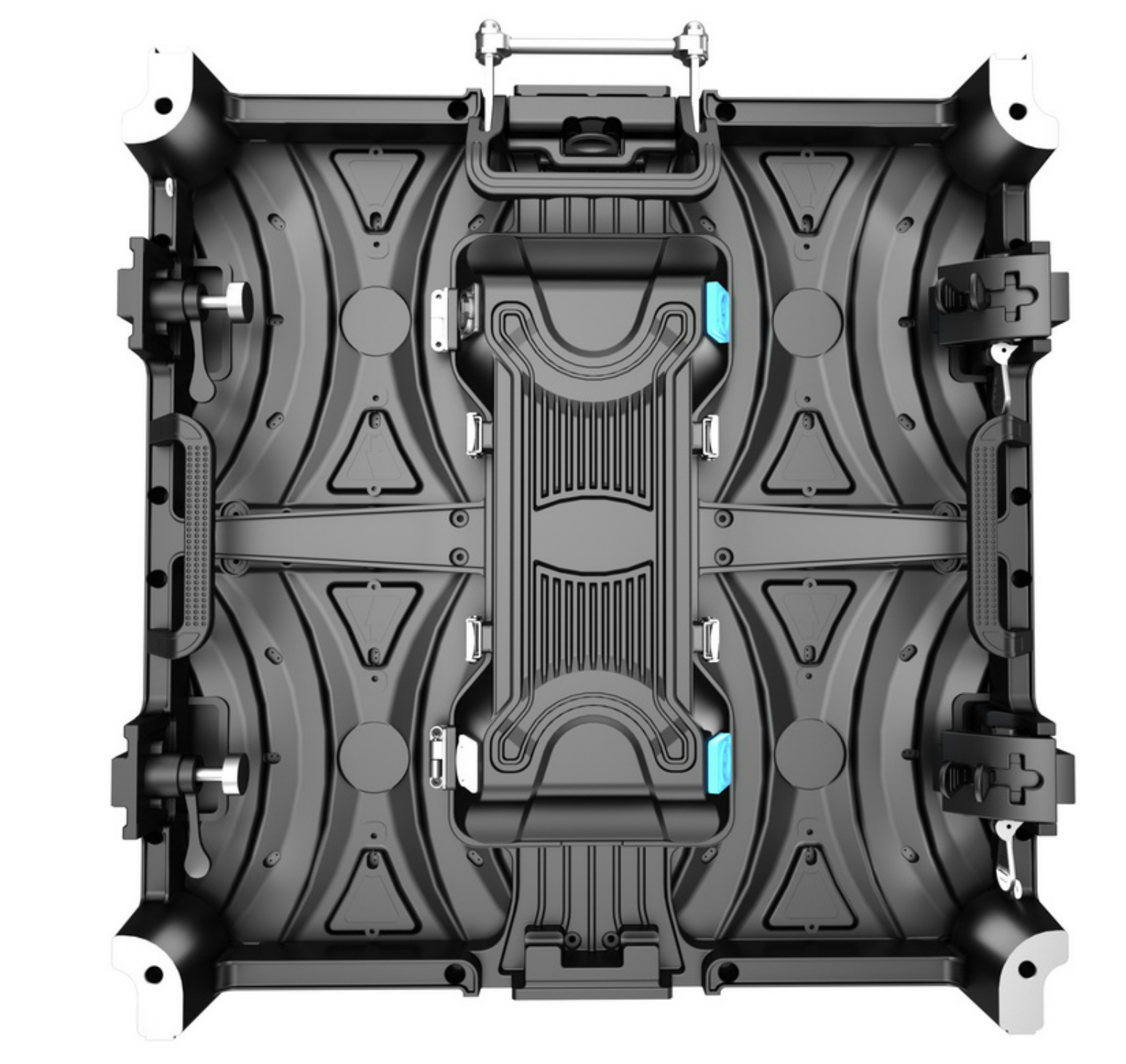

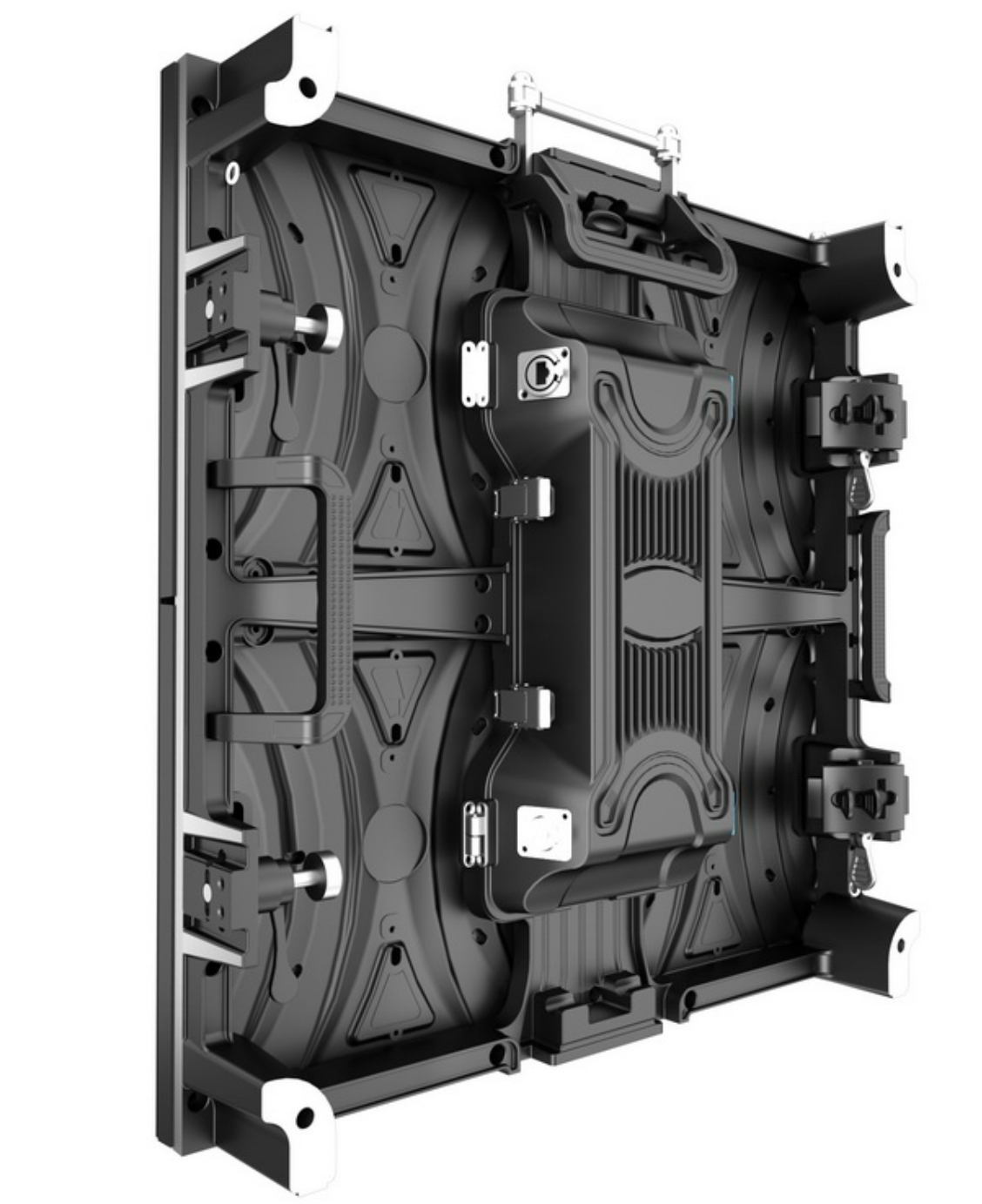

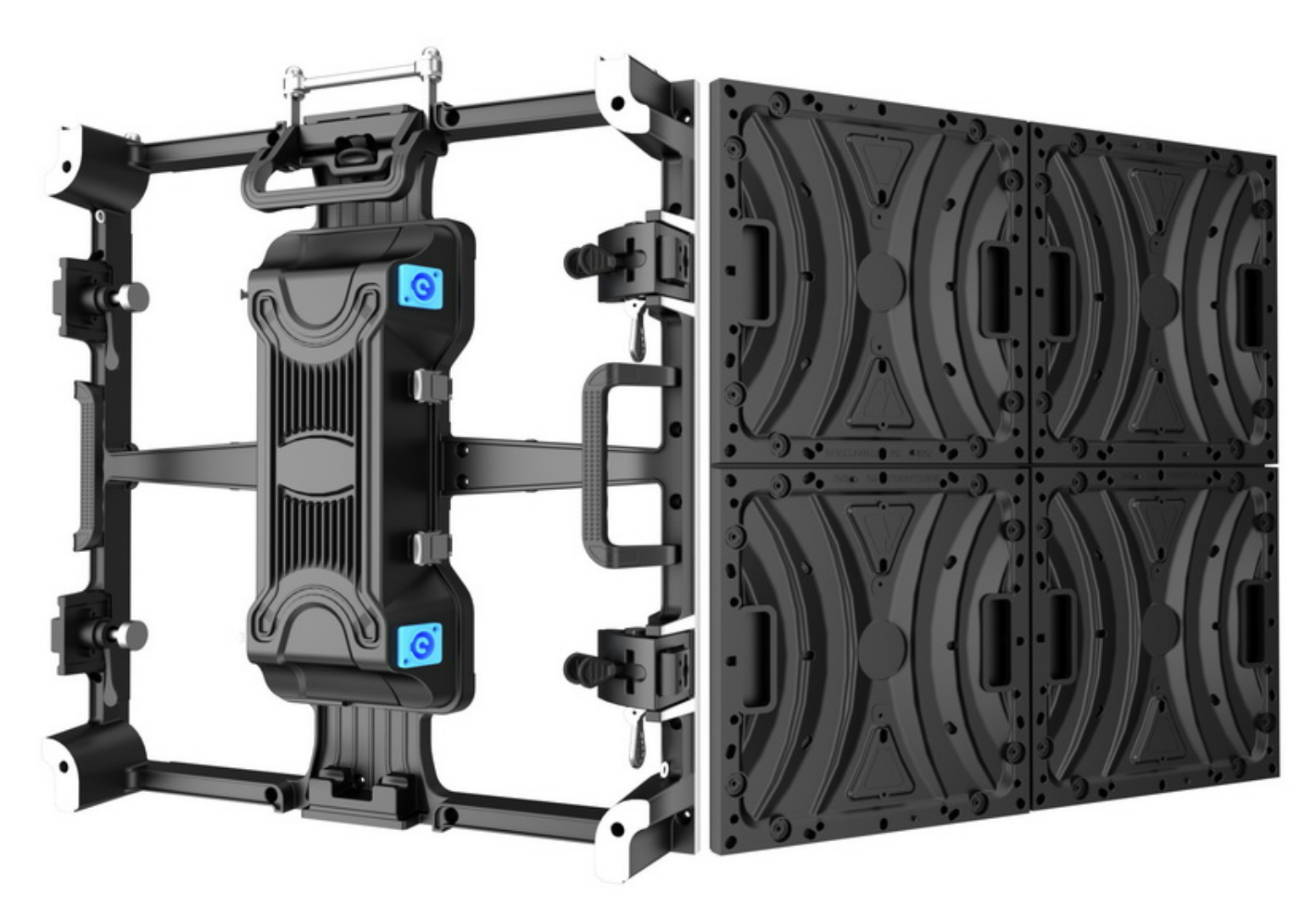

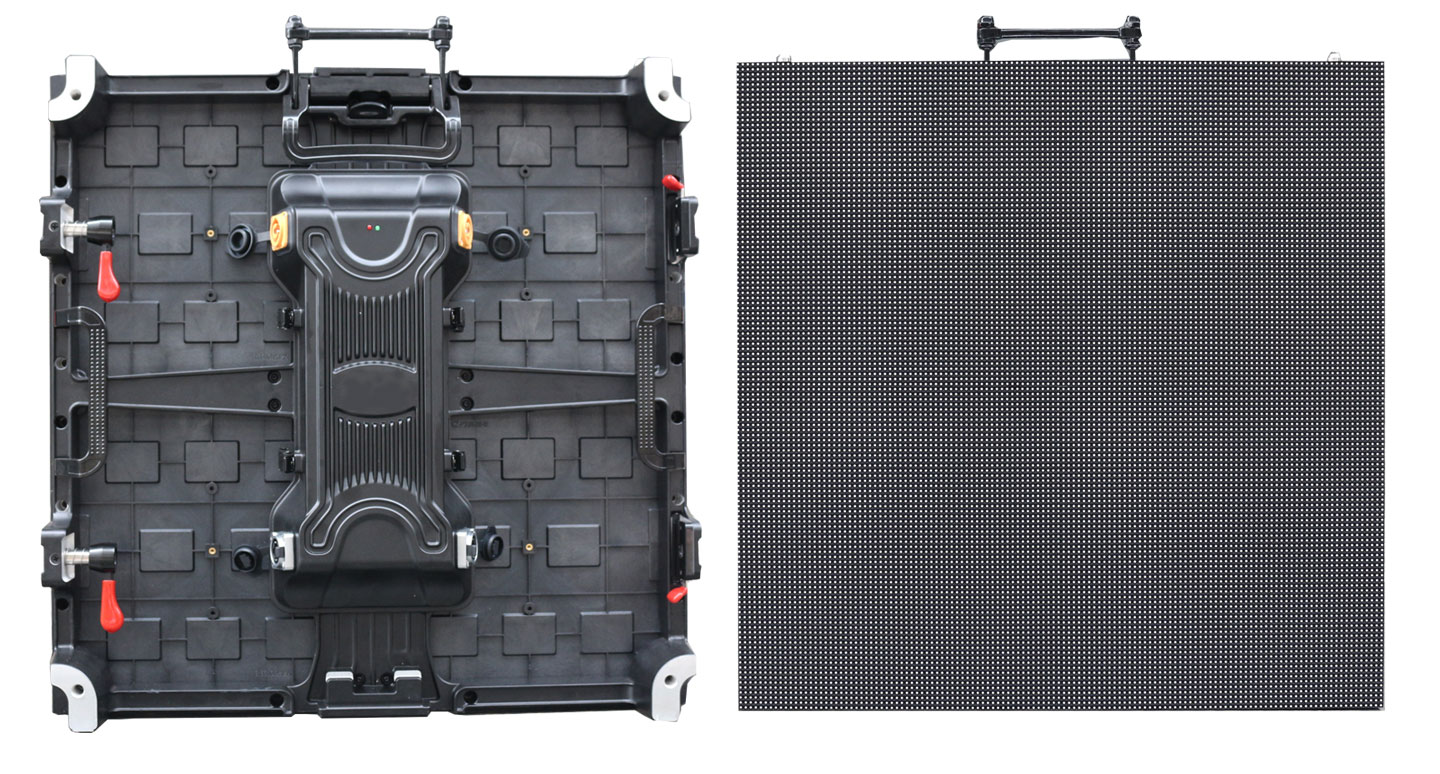

    This 500*500mm type C rental led display cabinet design is for high end event rental. With buckle type lock on top, the installation is easy and fast.

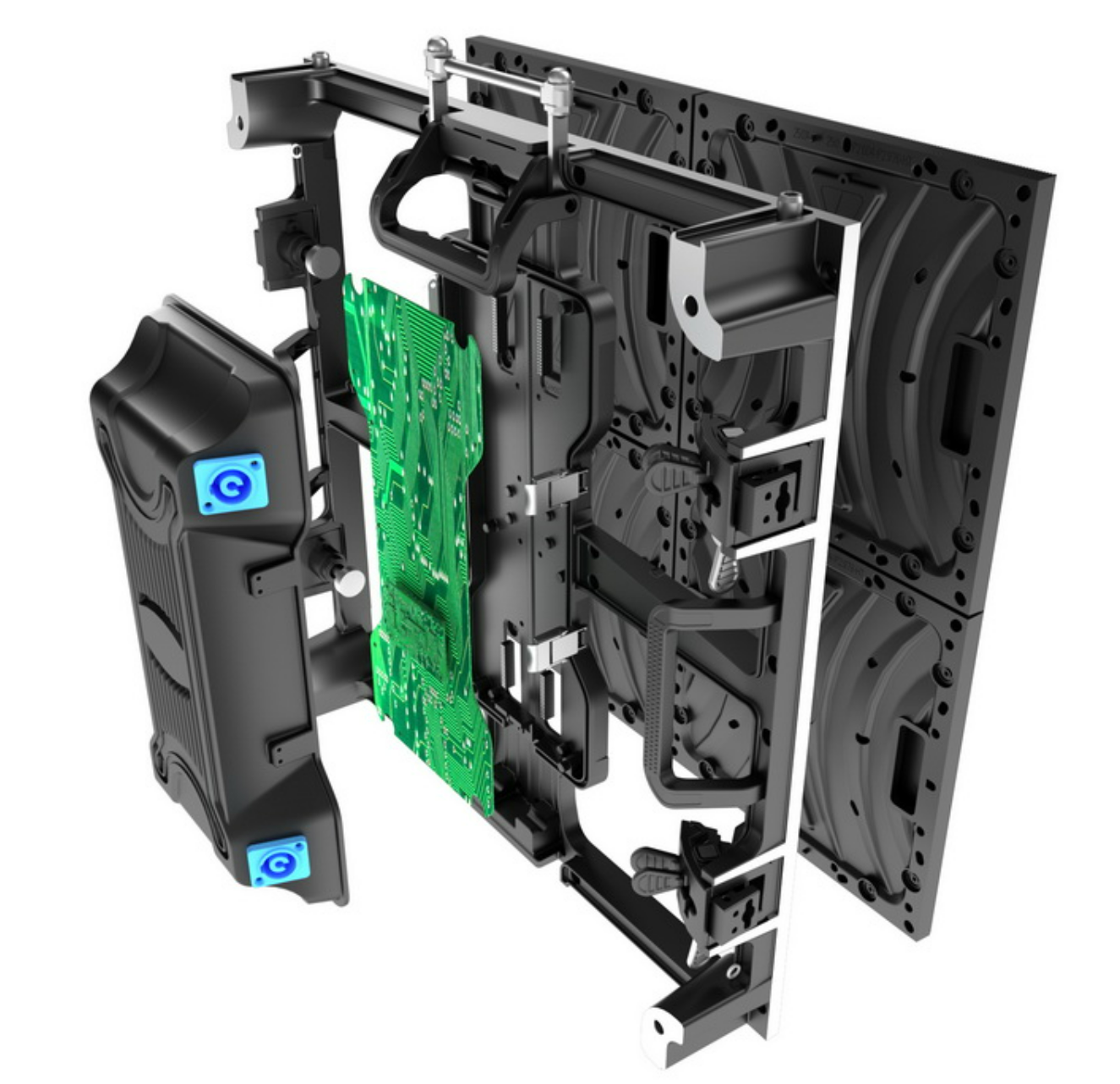

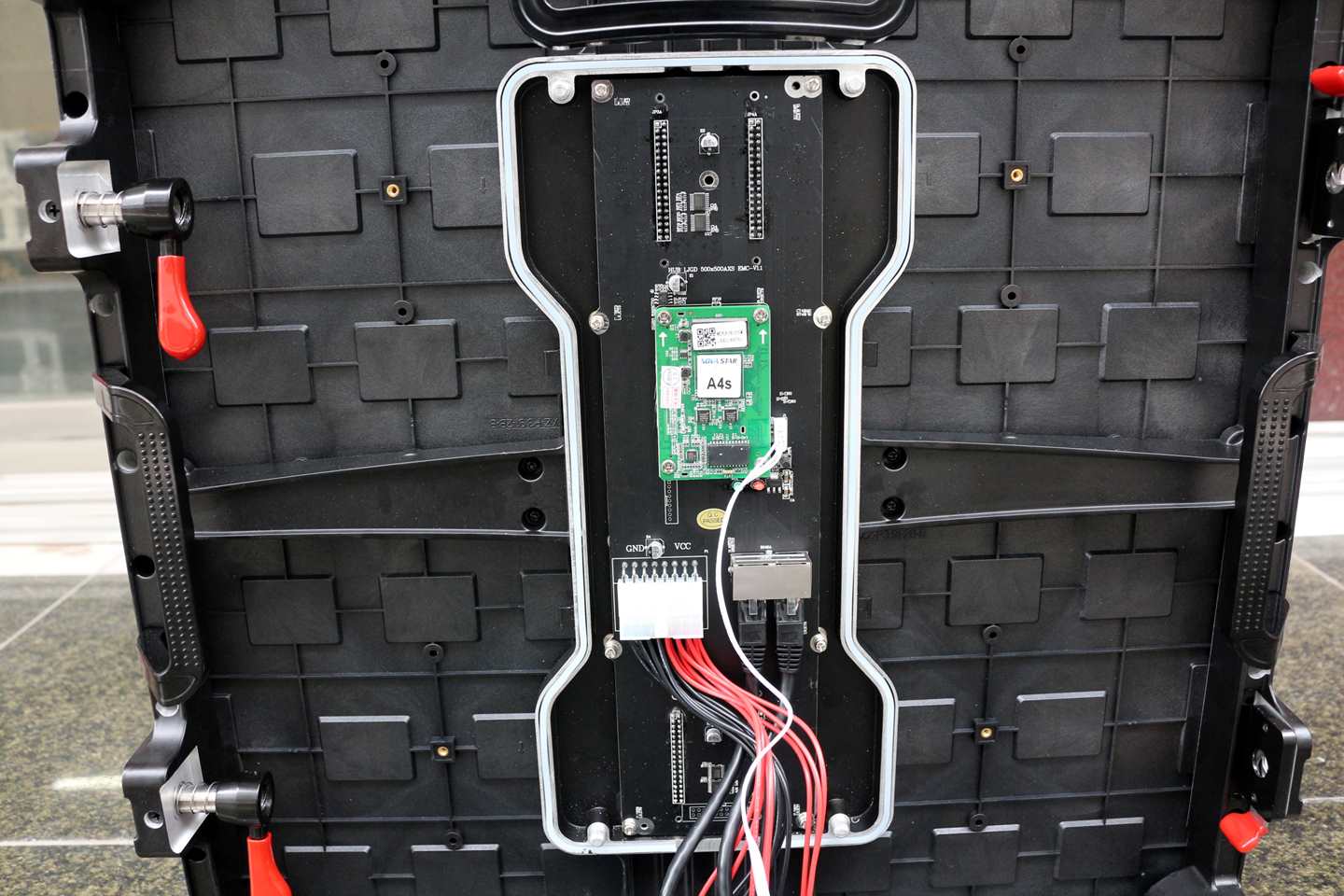

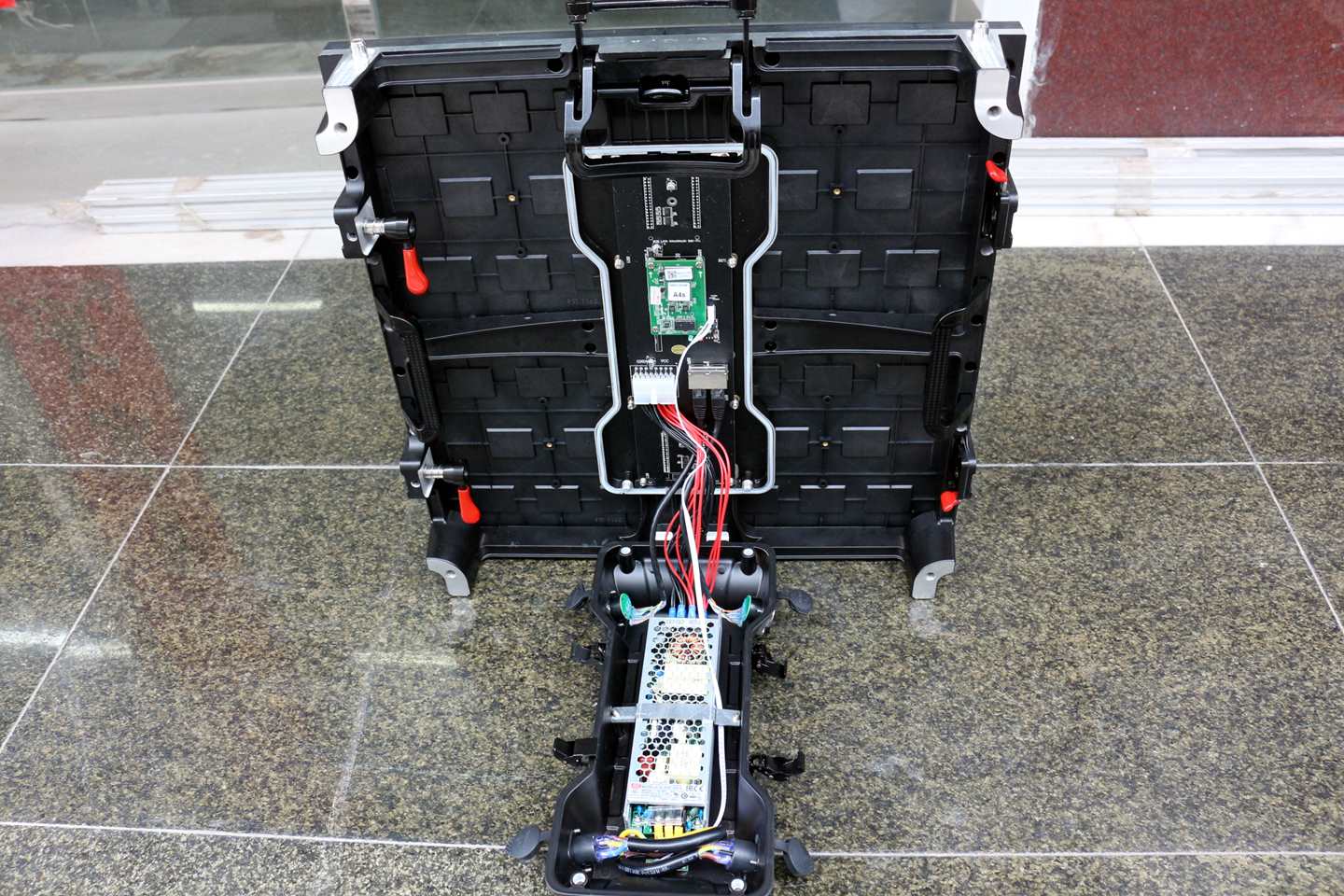

    Also the back cover with power supply and receiving cards can be pulled out fast to change.

    This can be useful while events going on if anything wrong happends.

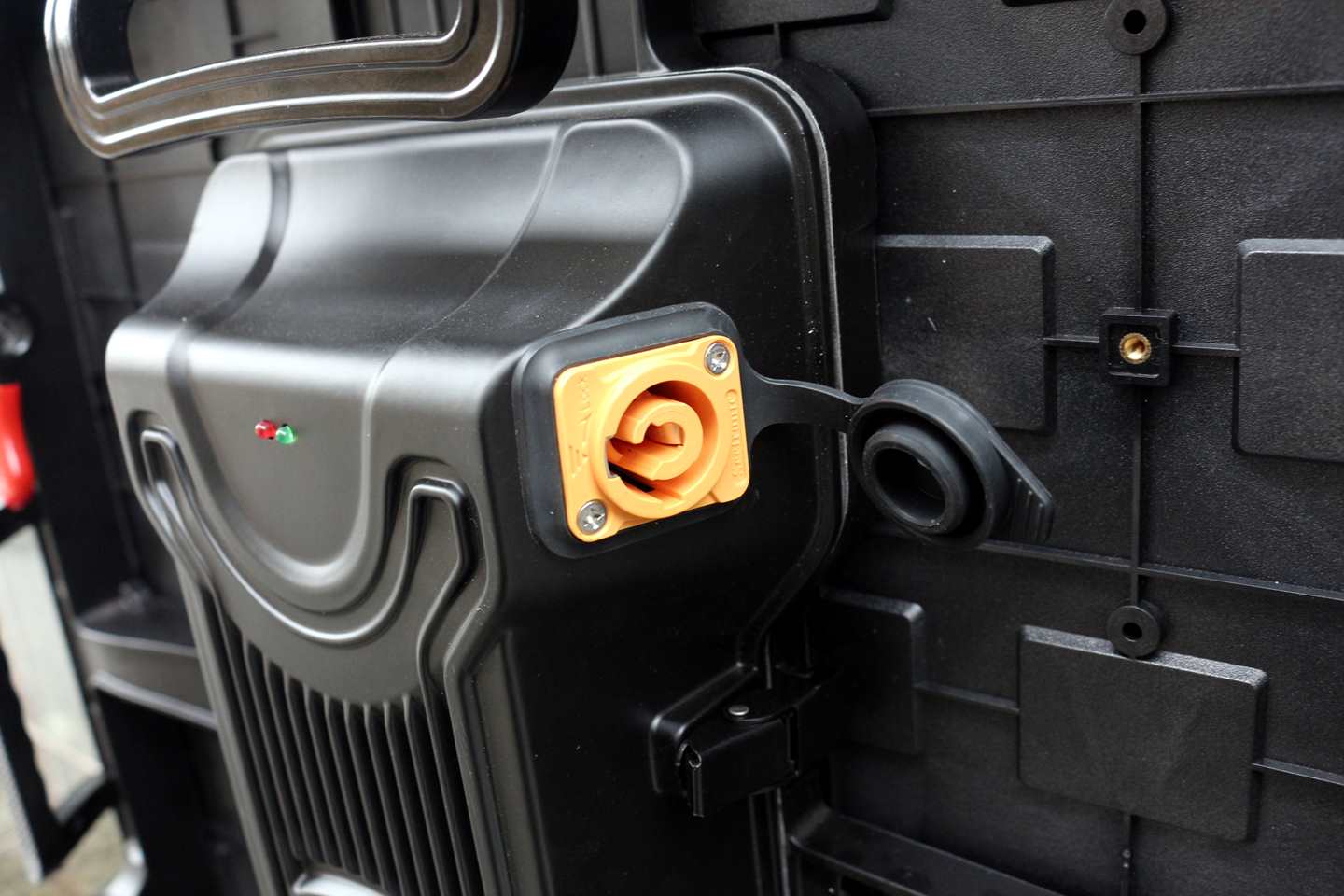

    All the product series use seatronics power and signal connector.

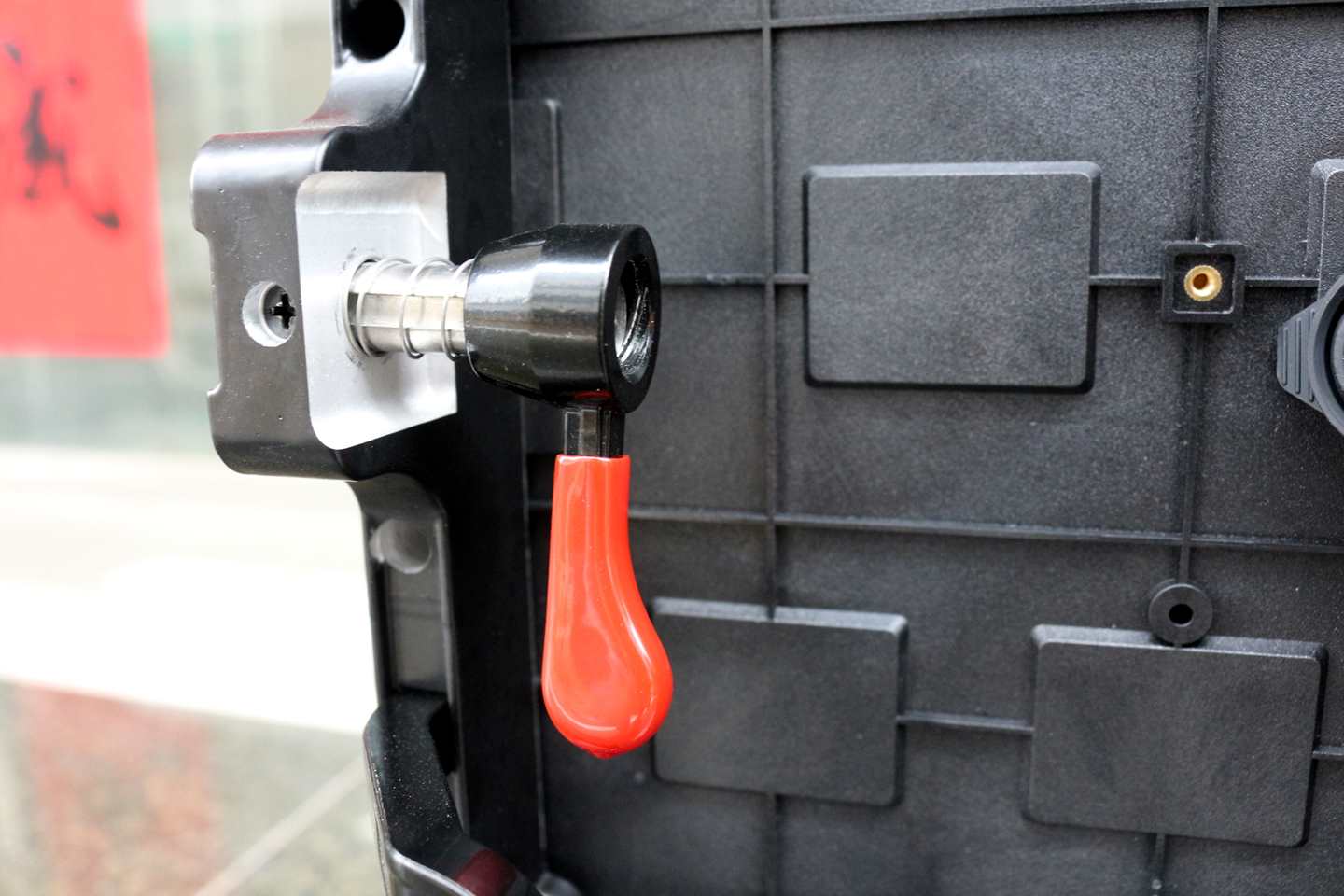

    The fast lock is tight and secure.

    For all your indoor and outdoor events, it can work perfectly.

    Also straight or curved lock cabinet is supported for form convex or concave shape led displays.

    500*500mm Type C event rental led display Series
    Model P2.604-1/32 scan indoor P2.976-1/28 scan indoor P3.91-1/16 scan indoor P3.91-1/16 scan outdoor P4.81-1/13 scan outdoor
    Pixel configuration SMD1515 or SMD2121 black led lamp SMD1515 or SMD2121 black led lamp SMD2121 black led lamp SMD1921 black led lamp SMD1921 black led lamp
    Pixel pitch 2.604mm 2.976mm 3.91mm 3.91mm 4.81mm
    Scan rate 1/32 scanning, constant current 1/28 scanning, constant current 1/16 scanning, constant current 1/16 scanning, constant current 1/13 scanning, constant current
    Module size （W×H) 250*250MM 250*250MM 250*250MM 250*250MM 250*250MM
    Resolution per module W 96 x H 96 pixels W 84 x H 84pixels W 64 x H 64pixels W 64 x H 64pixels W52 x H52pixels
    Standard cabinet dimension(W×H×D) 500×500×85mm 500×500×85mm 500×500×85mm 500×500×85mm 500×500×85mm
    Pixel resolution/cabinet (W×H) 192 x 192pixels 168 x 168pixels 128 x 128pixels 128 x 128 pixels 104 x 104pixels
    Resolution/sqm 147,456 dots/㎡ 112,896 dots/㎡ 65,536dots/㎡ 65,536dots/㎡ 43,264 dots/㎡
    Minimum viewing distance Minimum 2.6 meters Minimum 2.9 meters Minimum 3.9 meters Minimum 3.9 meters Minimum 4.8 meters
    Brightness 900(SMD1515)-1200CD/M2 900(SMD1515)-1200CD/M2 1200CD/M2 4600CD/M2 4500CD/M2
    Gray scale 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps
    Color Number 281trillion 281trillion 281trillion 281trillion 281trillion
    Display Mode Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source
    Refresh rate ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
    Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140
    Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
    Ambient Humidity 10%-99% 10%-99% 10%-99% 10%-99% 10%-99%
    Service access front and rear front and rear front and rear rear rear
    Standard cabinet weight 8.5kgs/cabinet 8.5kgs/cabinet 8.5kgs/cabinet 8.5kgs/cabinet 8.5kgs/cabinet
    Max.Power Consumption Max: 200w/panel Max: 200w/panel Max: 200w/panel Max: 200w/panel Max: 200w/panel
    Protection Level Front/rear: IP43 Front/rear: IP43 Front/rear: IP43 Front: IP65 rear:IP54 Front: IP65 rear:IP54
    Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr 75,000hr 75,000hr
    LED Failure Rate <0,00001 <0,00001 <0,00001 <0,00001 <0,00001
    MTBF > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours
    Input power cable AC110V /220V AC110V /220V AC110V /220V AC110V /220V AC110V /220V
    Signal input DVI DVI DVI DVI DVI
