■ Private mould die casting aluminum cabinet
■ precise assembling
■ uniform color
■designed for touring use
■ uniform color
■ easy to assemble
Downloadenquiry

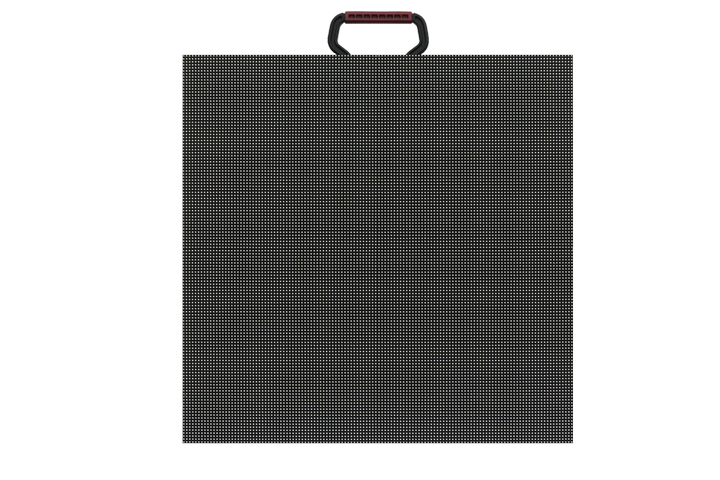

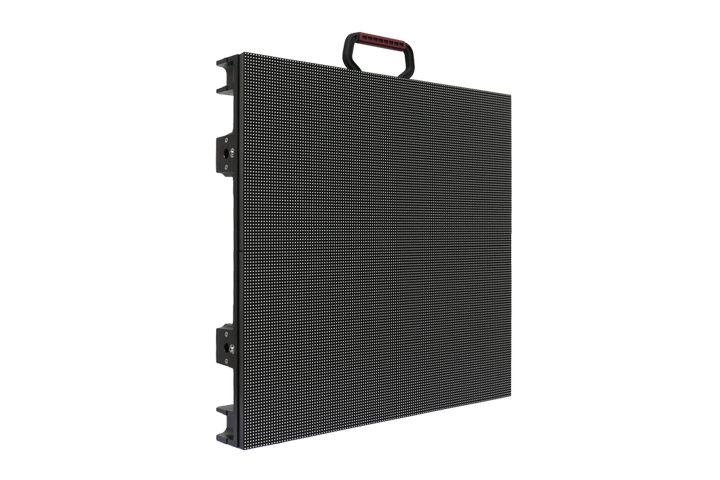

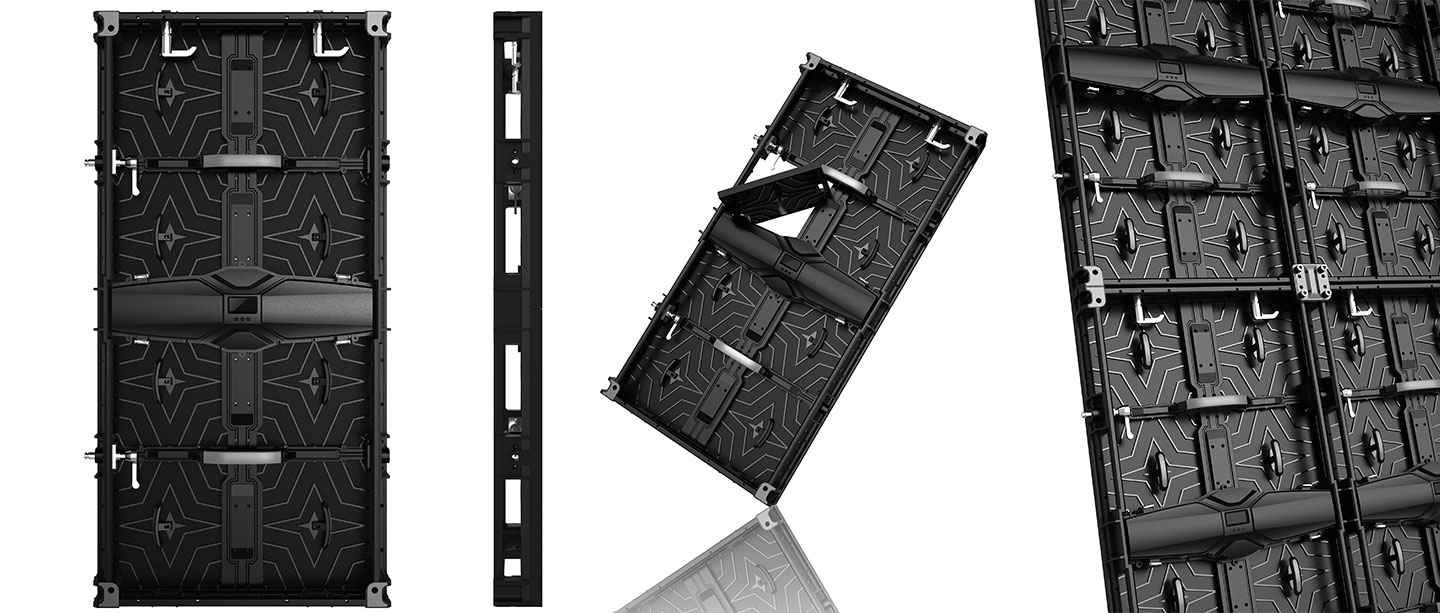

This is a private mould 500*1000mm series high end rental led display.
It supports both front and back service.
500*500 and 500*1000mm cabinet size optional

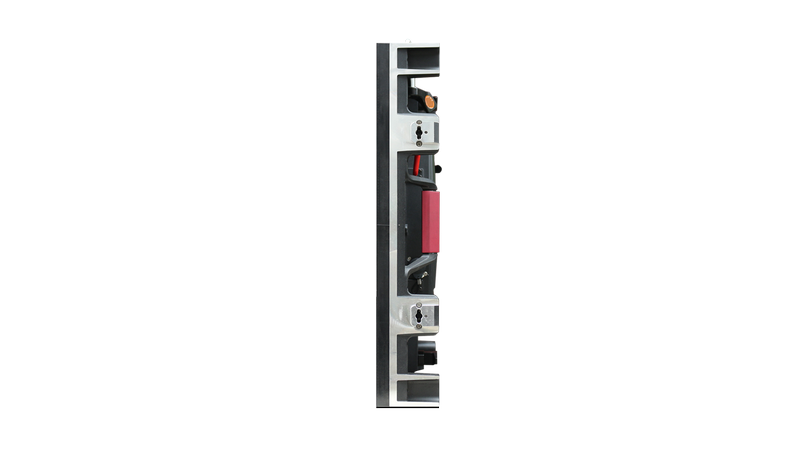

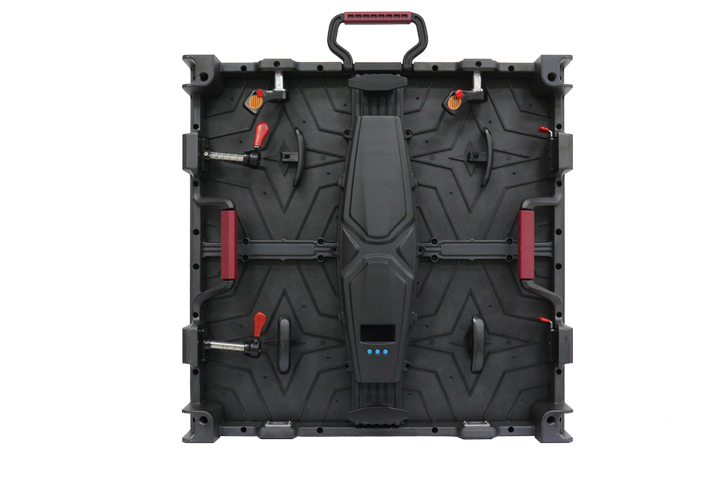

Cabinet structure
Easy to assemble and disassemble. with digital display indicators on the back.
This is a design for high end event and stage rental use.
strong lock, all around frame for easier handling.
Compatible with all indoor and outdoor event rental led display models starting from indoor P1.56, P2.5, P2.604, P2.9, P3.91 outdoor P2.6, 2.976, P3.91, P4.81
Event rental type frame supported
Cabinet support angle adjustable curved lock type assembling for special curved shape LED displays.
500L series 500*500mm event rental led display Series | ||||
Model | P1.56 | P2.5-1/25 scan indoor | P2.976-1/28 scan indoor | P3.91-1/8 scan outdoor |
Pixel configuration | Nationstar SMD1212 | Kinglight SMD1515 | Kinglight SMD1515 | Nationstar SMD1921 |
Pixel pitch | 1.5625mm | 2.5mm | 2.976mm | 3.91mm |
Scan rate | 1/40 scanning, constant current | 1/25 scanning, constant current | 1/28 scanning, constant current | 1/8 scanning, constant current |
Module size (W×H) | 250*250MM | 250*250MM | 250*250MM | 250*250MM |
Resolution per module | W 160 x H 160pixels | W100 x H 100pixels | W 84 x H 84pixels | W 64 x H 64pixels |
Standard cabinet dimension(W×H×D) | 500×500×85mm | 500×500×80mm | 500×500×80mm | 500×500×80mm |
Pixel resolution/cabinet (W×H) | 320 x 320pixels | 200 x 200pixels | 168 x 168pixels | 128 x 128pixels |
Resolution/sqm | 409600 dots/㎡ | 160,000 dots/㎡ | 112,896 dots/㎡ | 65410 dots/㎡ |
Minimum viewing distance | Minimum 1.5 meters | Minimum 2.5 meters | Minimum 2.9 meters | Minimum 3.9 meters |
Brightness | 650CD/M2(nits) | 1200CD/M2(nits) | 1000CD/M2(nits) | 6500CD/M2(nits) |
Gray scale | 16 bit, 65536 steps | 16 bit, 65536 steps | 16 bit, 65536 steps | 16 bit, 8192steps |
Color Number | 281trillion | 281trillion | 281trillion | 281 trillion |
Display Mode | Synchronous with video source | Synchronous with video source | Synchronous with video source | Synchronous with video source |
Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
Viewing angle(degree) | H/160,V/140 | H/160,V/140 | H/160,V/140 | H/160,V/140 |
Temperature range | -20℃ to +60℃ | -20℃ to +60℃ | -20℃ to +60℃ | -25℃ to +70℃ |
Ambient Humidity | 10%-99% | 10%-99% | 10%-99% | 10%-99% |
Service access | front and rear | front and rear both ways. | front and rear | rear |
Standard cabinet weight | 7.5kgs/cabinet | 7.5kgs/cabinet | 7.5kgs/cabinet | 8kgs/cabinet |
Max.Power Consumption | Max: 150w/Cabinet | Max: 200w/panel | Max: 200w/panel | Max: 640w/sqm |
Protection Level | Front/rear: IP43 | Front/rear: IP43 | Front/rear: IP43 | Front: IP65 Rear: IP54 |
Lifetime to 50% brightness | 75,000hr | 75,000hr | 75,000hr | 75,000hr |
LED Failure Rate | <0,00001 | <0,00001 | <0,00001 | <0,00001 |
MTBF | > 10.000 hours | > 10.000 hours | > 10.000 hours | > 10.000 hours |
Input power cable | AC110V-220V | AC110V-220V | AC110V-220V | AC110-220V |
Signal input | DVI HDMI | DVI HDMI | DVI HDMI | DVI |
