the cabinet design is ultra slim and totally front service. Modules can be sucked out by a specially designed vacuum sunction tool, and the cabinet can be fixed directly on the wall or on a bracket from the front side.

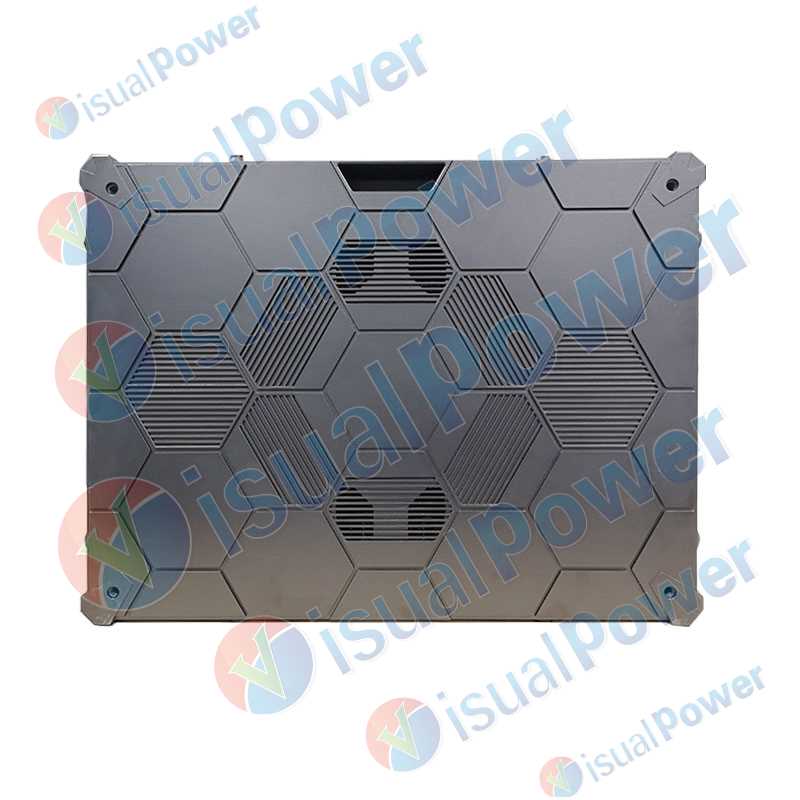

640*480mm indoor fine pitch led display is the most popular design recently. with 4:3 ratio cabinet and compatible with many different model of pixel pitches including P1.25, P1.53, P1.86,P1.667, P2, P2.5.

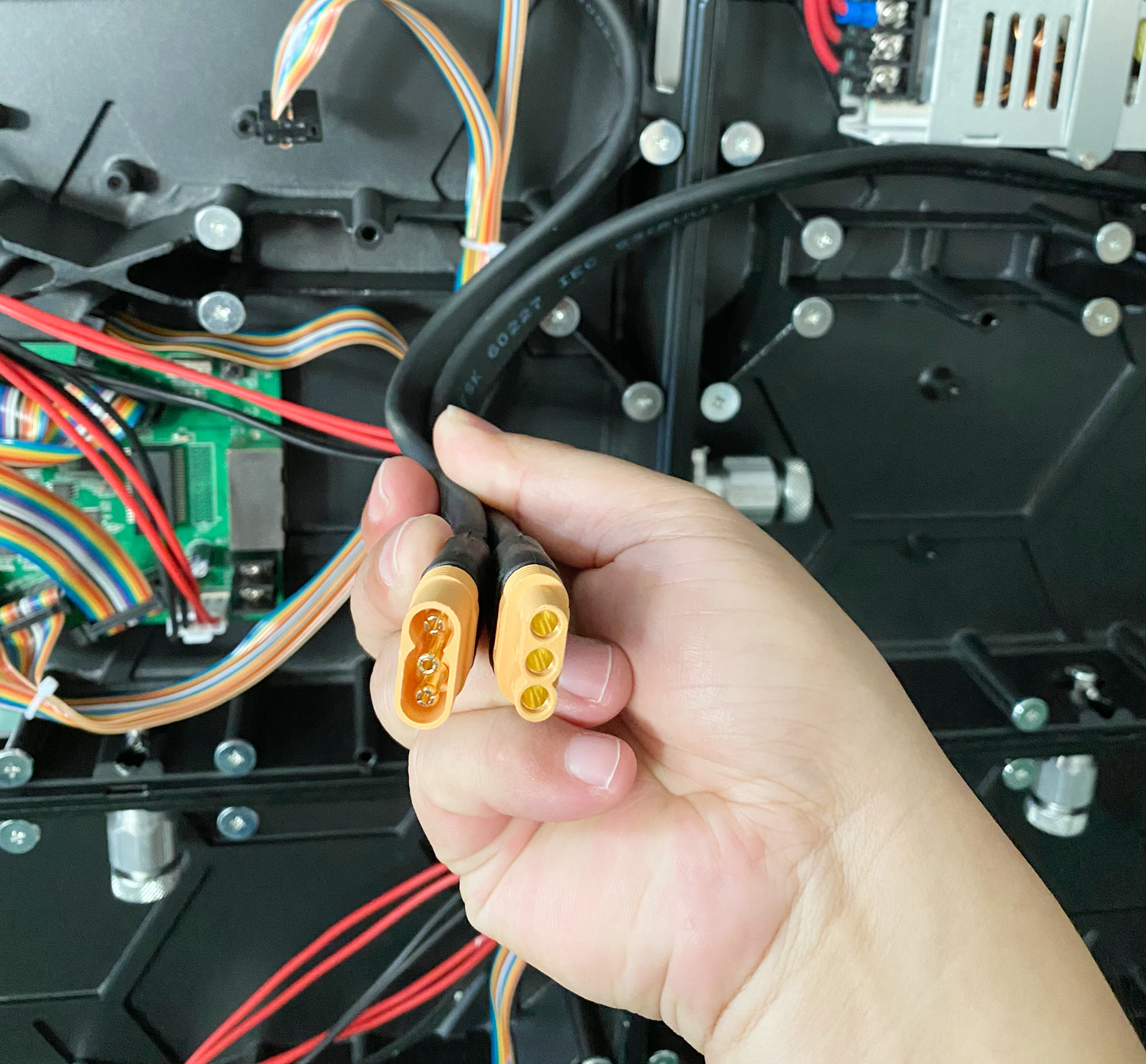

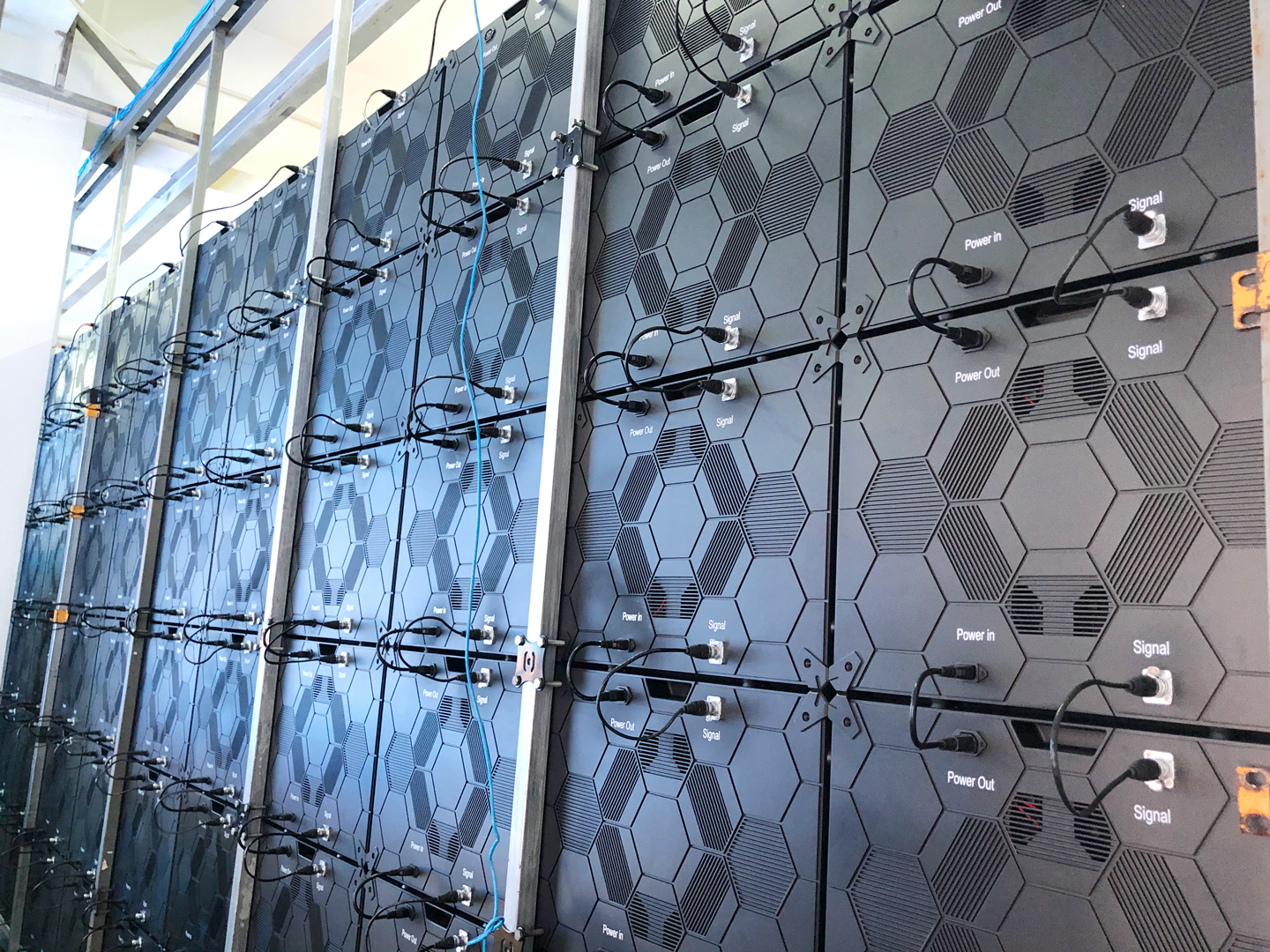

The power and signal cables can go between the cabinets, or use connectors behind.
All parts are front service, front installation.
Indoor fine pitch 640-480mm cabinet series | |||||||
Model | P1.25 | P1.53 | P1.667 | P1.86 | P2 | P2.5 | P3.076 |
LED lamp | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
Pixel pitch(mm) | 1.25 | 1.538 | 1.667 | 1.86 | 2 | 2.5 | 3.076 |
LED Lamp brightness(mcd) | R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
LED wavelength(nm) | 619-624nm 522-526nm 469-474nm |
619-624nm 522-526nm 469-474nm |
619-624nm 522-526nm 469-474nm |
619-624nm 522-526nm 469-474nm |
619-624nm 522-526nm 469-474nm |
619-624nm 522-526nm 469-474nm |
619-624nm 522-526nm 469-474nm |
Pixel density | 640,000 | 422,500 | 360,000 | 288,900 | 250,000 | 160,000 | 105,688 |
(pixels/m2) | |||||||
Module size(mm) | 320(W)×160(H) | 320(W)×160(H) | 320(W)×160(H) | 320(W)×160(H) | 320(W)×160(H) | 320(W)×160(H) | 320(W)×160(H) |
Module resolution(W×H) | 256×128 | 208×104 | 192×96 | 172×86 | 160×80 | 128×64 | 104×52 |
Module weight(kg) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
Module Max. power(W) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Module layout(W×H) | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 |
Cabinet size(mm) | 640(W)×480(H)×70(D) | 640(W)×480(H)×70(D) | 640(W)×480(H)×70(D) | 640(W)×480(H)×70(D) | 640(W)×480(H)×70(D) | 640(W)×480(H)×70(D) | 640(W)×480(H)×70(D) |
Cabinet resolution(W×H) | 512×384 | 416×312 | 384×288 | 344×258 | 320×240 | 256×192 | 208×156 |
Cabinet Area(m2) | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 |
Cabinet weight(kg) | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Flatness(mm) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Maintenance way | Front service | Front service | Front service | Front service | Front service | Front service | Front service |
Cabinet Material | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting |
Brightness calibration | support | support | support | support | support | support | support |
Color temperature calibration | support | support | support | support | support | support | support |
white balance brightness(nits) | ≥650(at 6500K)adjustable | ≥650(at 6500K)adjustable | ≥650(at 6500K)adjustable | ≥650(at 6500K)adjustable | ≥650(at 6500K)adjustable | ≥800(at 6500K)adjustable | ≥800(at 6500K)adjustable |
color temperature(K) | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable |
Viewing angle(horizental/Vertical°) | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
lighting center offset | <3% | <3% | <3% | <3% | <3% | <3% | <3% |
brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
Contrast ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
Max. power(W/m2) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Ave. power(W/m2) | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Power supply | AC90~264V,frequency 47-63(Hz) | AC90~264V,frequency 47-63(Hz) | AC90~264V,frequency 47-63(Hz) | AC90~264V,frequency 47-63(Hz) | AC90~264V,frequency 47-63(Hz) | AC90~264V,frequency 47-63(Hz) | AC90~264V,frequency 47-63(Hz) |
Frame frequency(Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
Scan rate | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/32scan | constant current,1/32scan |
Gray scale | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 |
Refresh rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
color depth | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Video display | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K |
working temperature/Humidity(℃/RH) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) |
Storage temperature/humidity(℃/RH) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) | -20 – 60 / 10%-85%RH(no condensation) |
