Eiffel series event rental led display
CATEGORY AND TAGS:Event rental led display 480*480mm, 500*500mm, event rental led display, P1.875, P2.5, P2.6, P3.91, P4.8

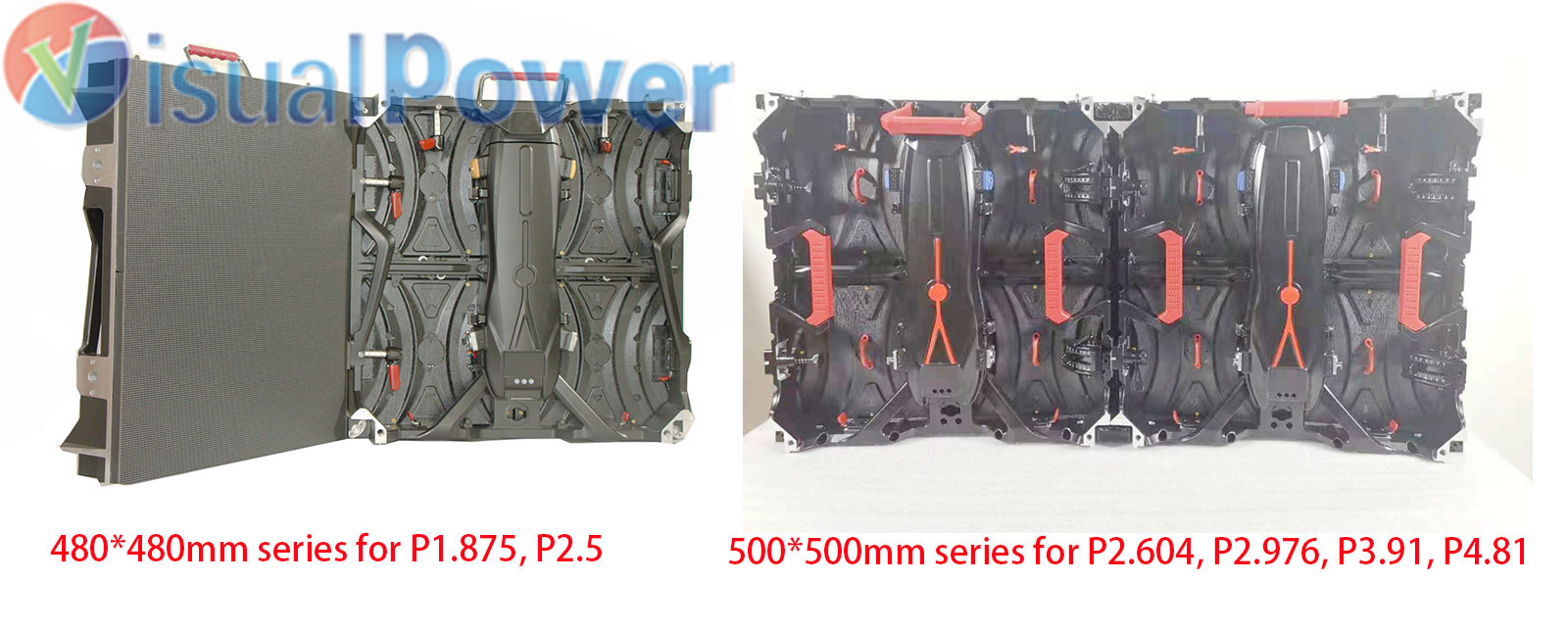

- Uniform cabinet size for differnet pixel pitch
- 480*480mm for P1.875, P2.0 and P2.5
- 500*500mm for P2.604, P2.9, P3.91 and P4.81
- indoor and outdoor compatible
- Front service or rear service support
- modular design for power and signal
- anti-colliding design
- precise mould die casting aluminum cabinet
- Description
- Specifications
Eiffel series event rental led display is Visualpower new private mould design. it combines most of the advantages of state-of-art led display designs into a whole new series of pixel pitches, covering most of the popular models of event rental led displays.

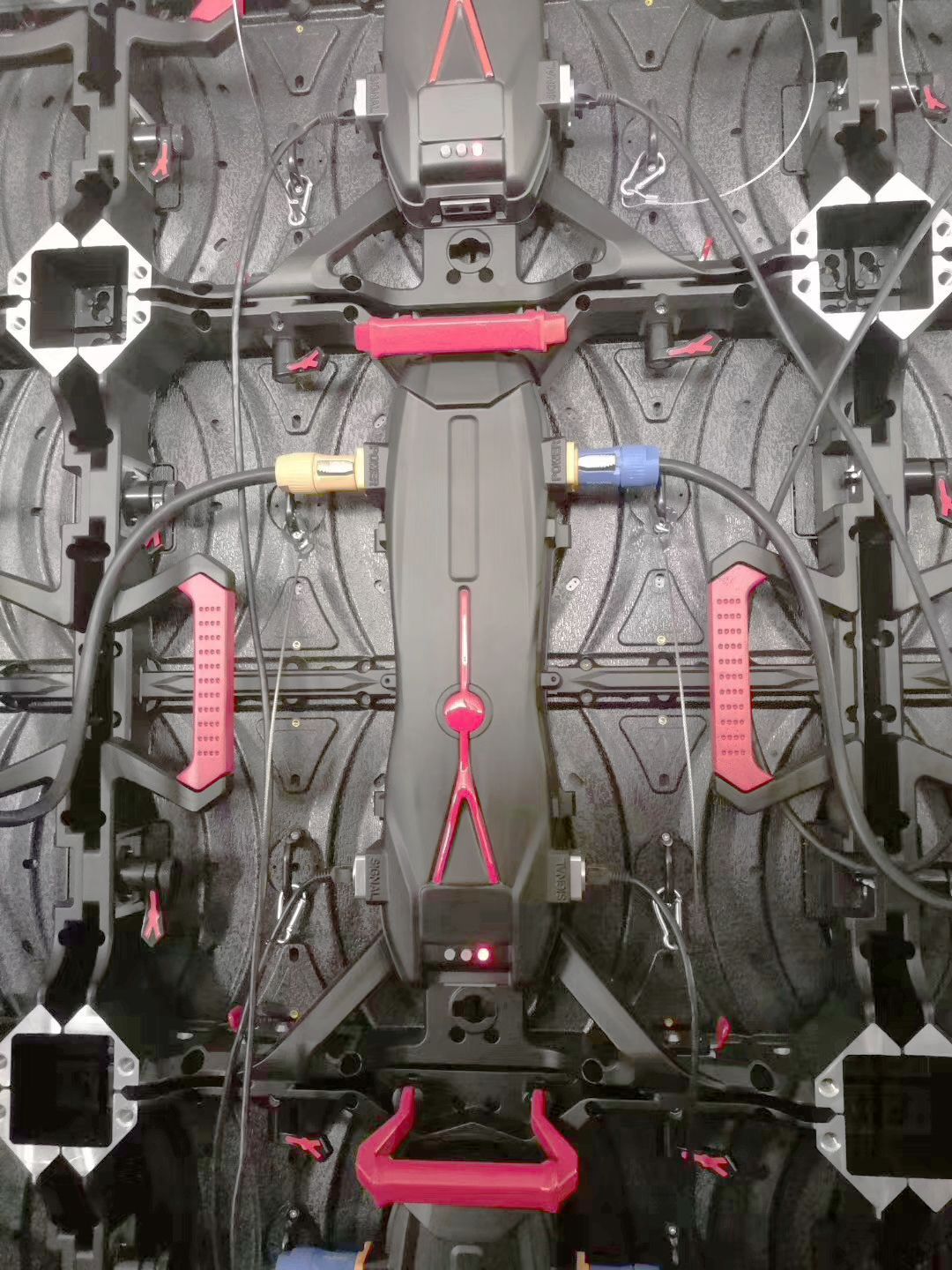

Inspired by the art design of eiffel tower shape, the locks and back cover of the cabinet design is also in the eiffel tower shape. the whole cabinet is just a piece of art.
Uniform cabinet size design,suitable for most popular event rental led displays in the market. sutiable for updating the pixel pitch in the future.

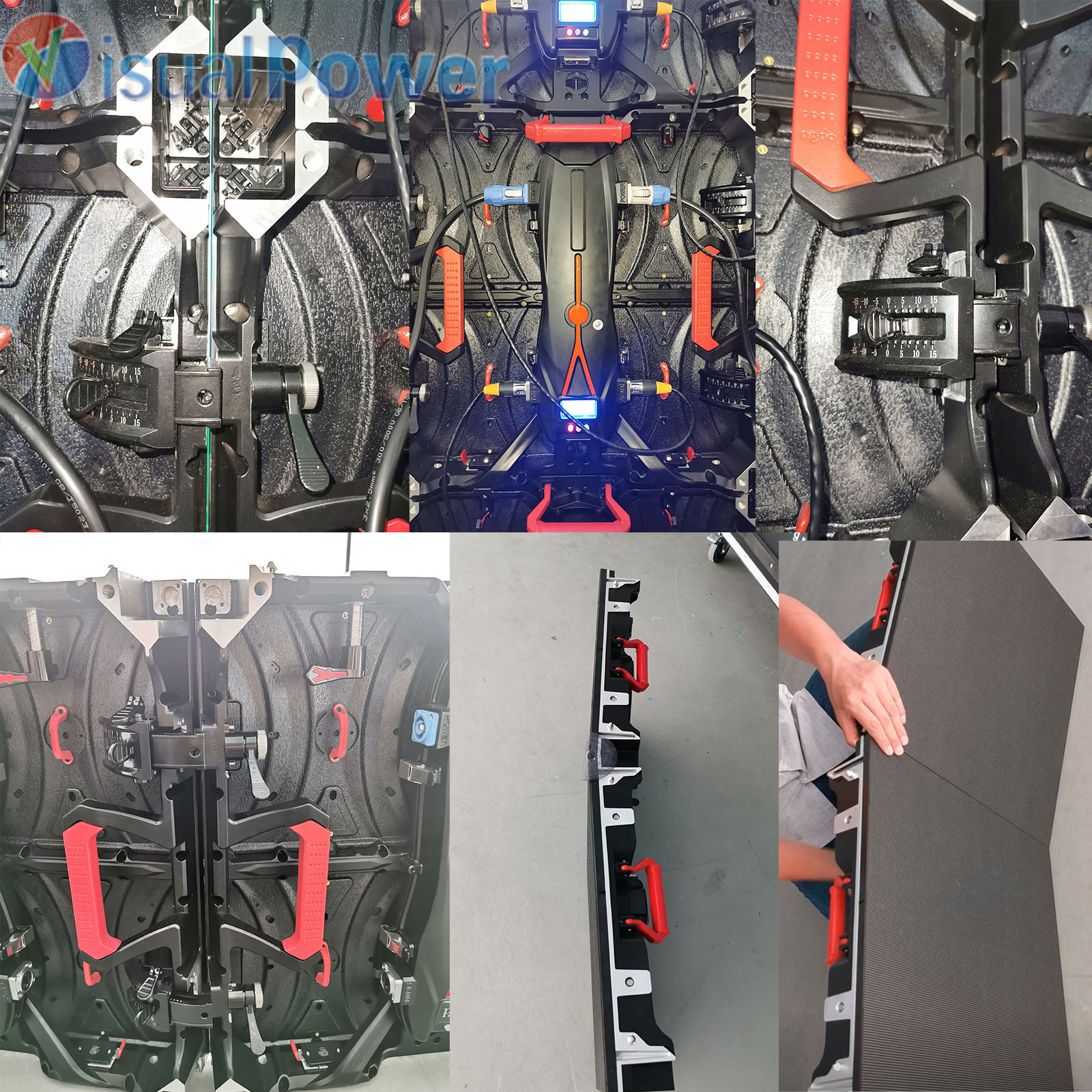

With curved lock system, can form both convex and convace shape led displays for special events. and with two locks each side to make sure tight and seamless assembling.

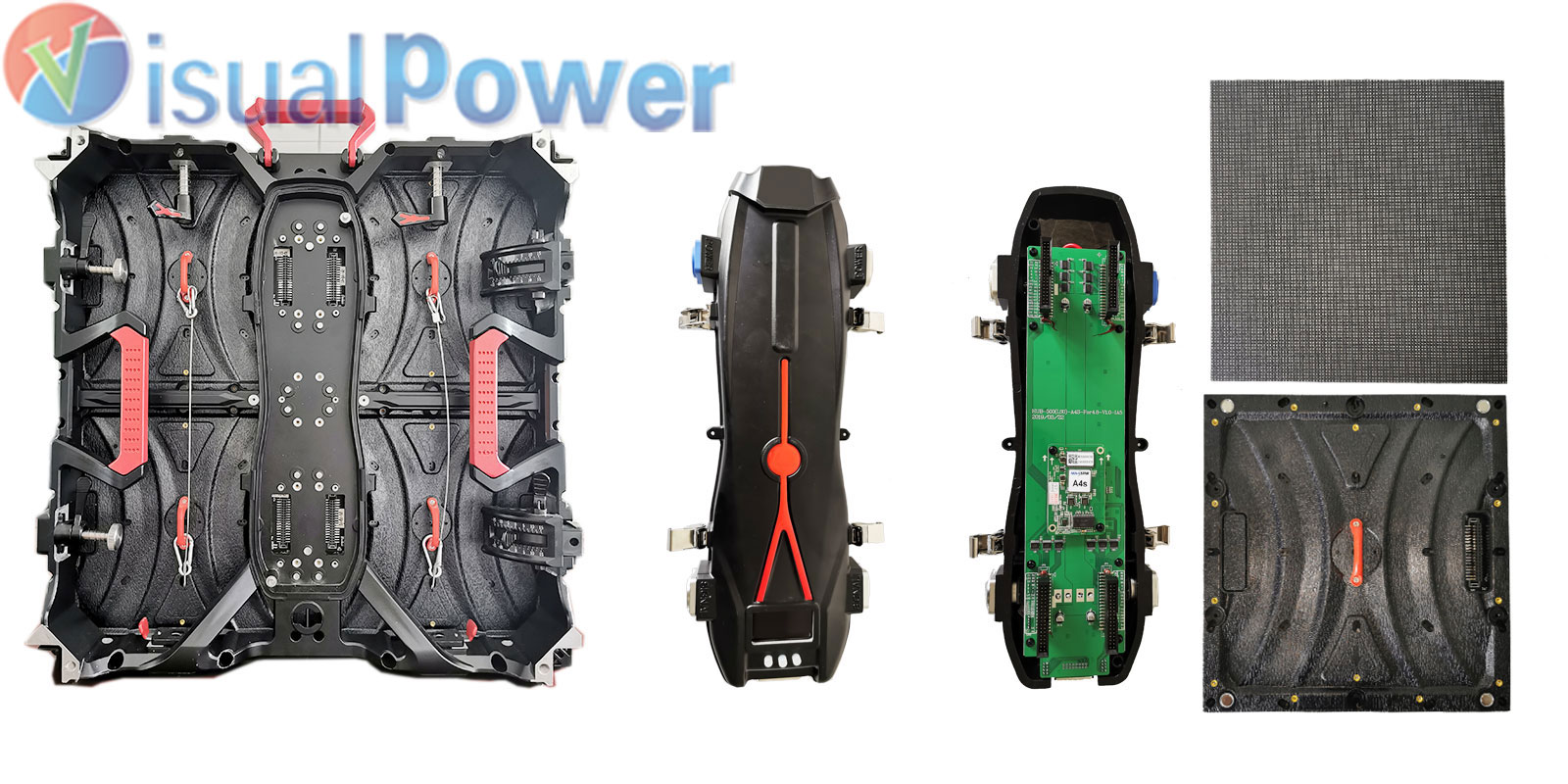

Modular design, all the modules,power supply, receiving cards and cabinets are independent part, can be fast assebled and detached for replacement.

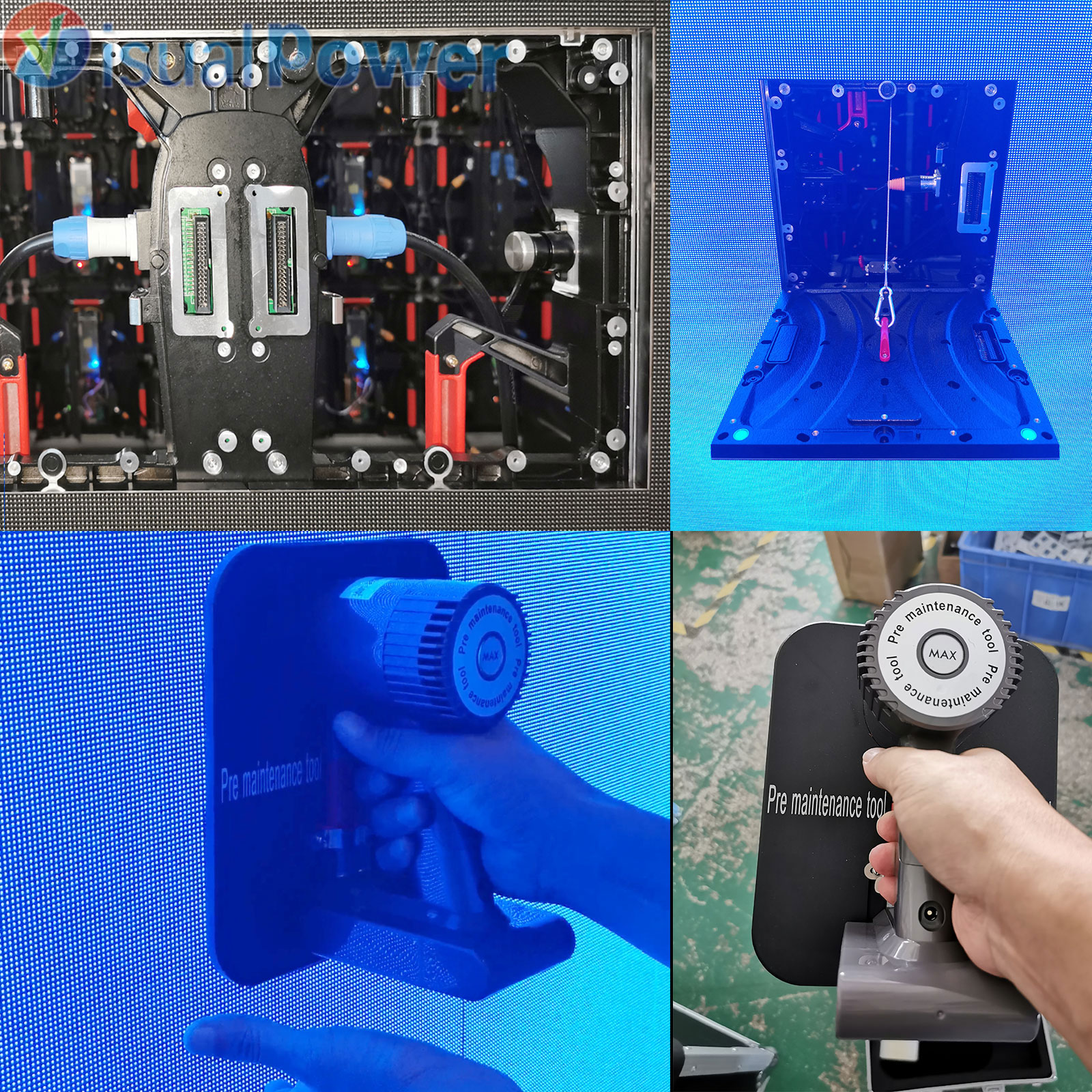

All modules, power supplies and receiving cards(with integrated box design) can be both front and rear serviceable with Visualpower’s specially designed vaccum sucktion tool, suitable for different installation and maintenance requirement. and each module are with safety rope, in case it falls off during maintenance job.
Eiffel series rental led display also has good protection both at the corner and the cabinet bottom. During event rental activities, the cabinet corner and edge is easy to be damaged because of hit or collision. this design can provide good protection and extend the life of the led display.

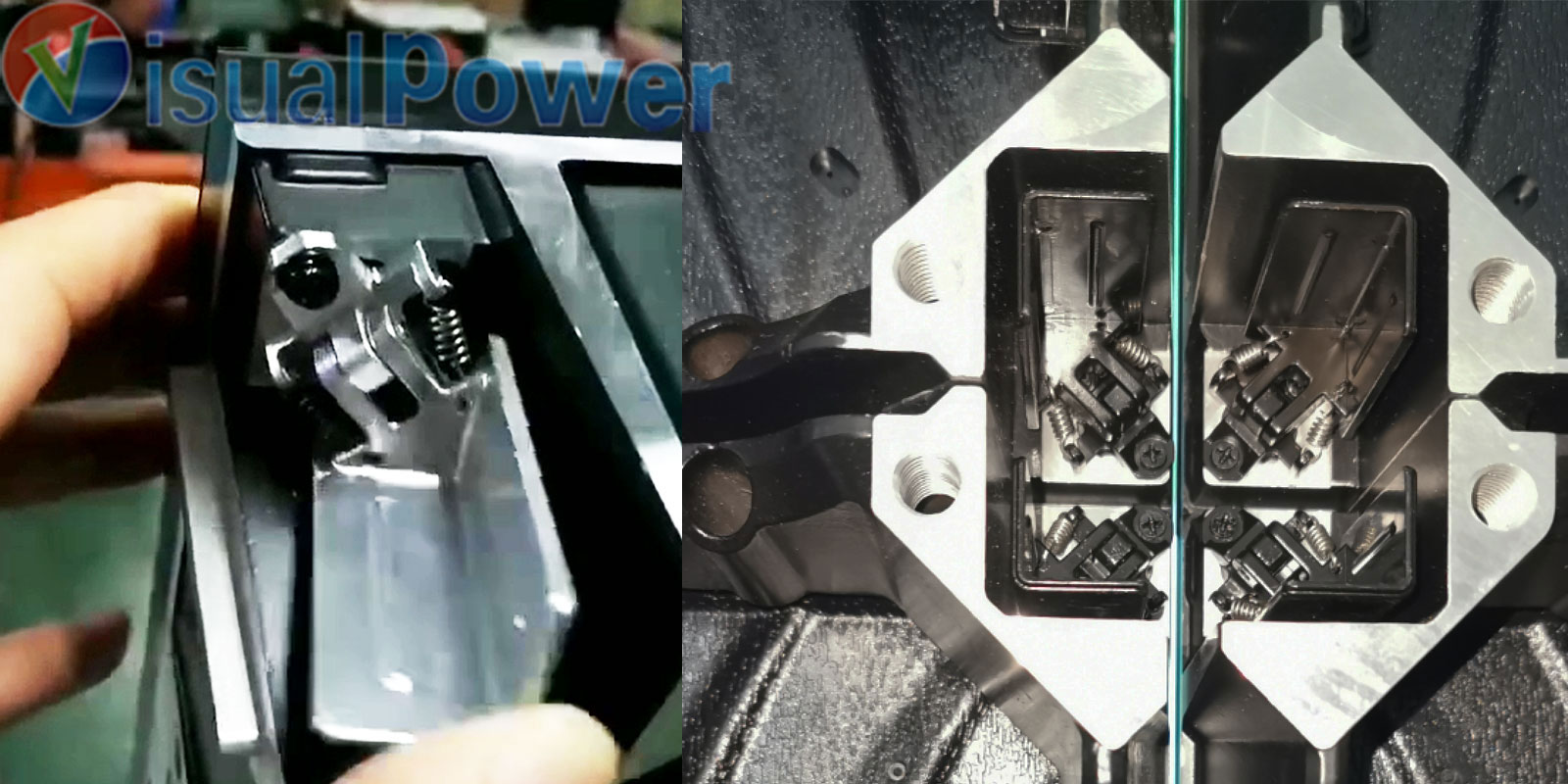

Corner protection-Each cabinet has four foldable corner protectors at the corner. and it is foldable and hidden, will not block the way of assembling.

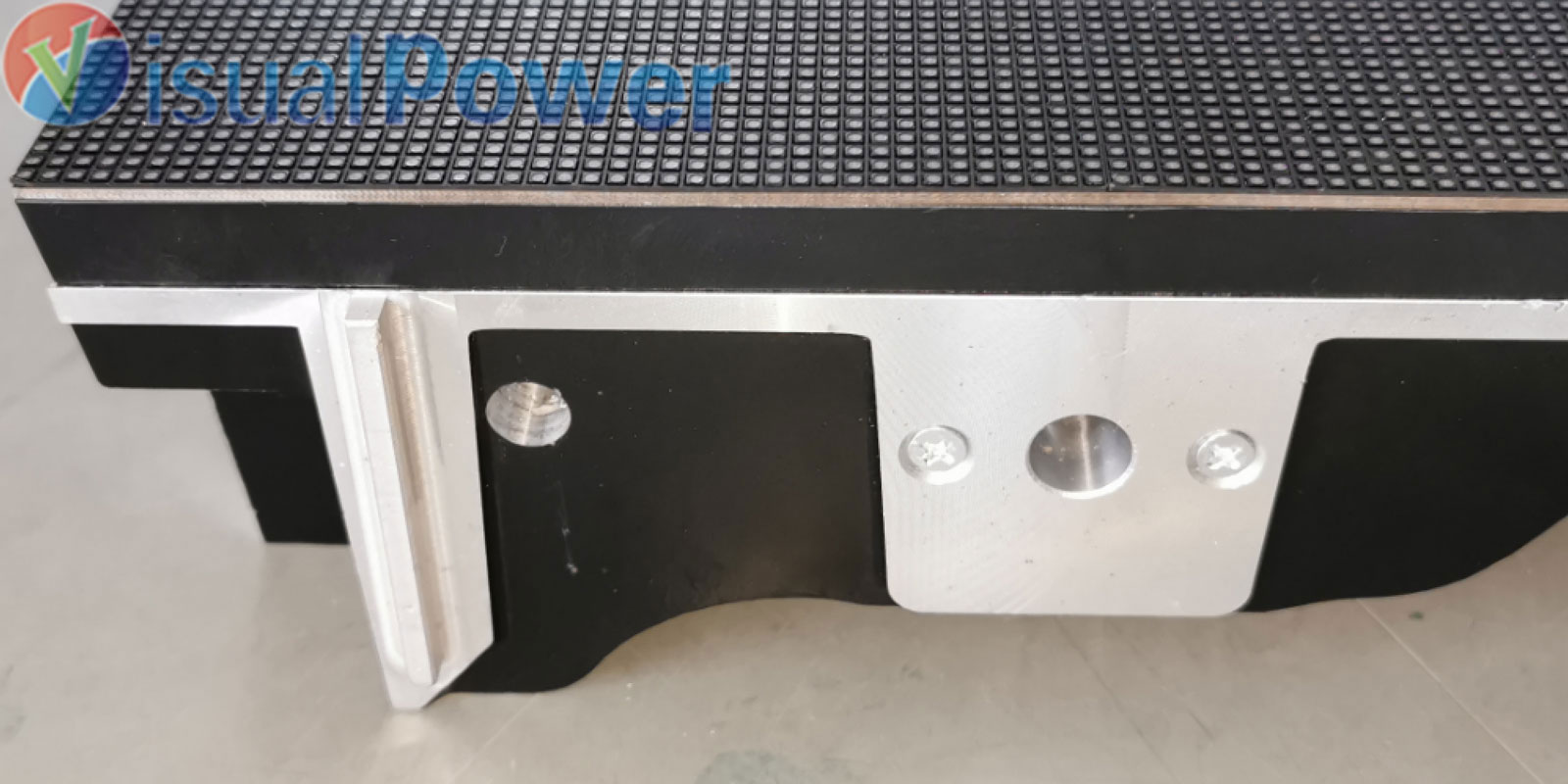

At the bottom of the cabinet, there are two bulges to make sure certain gap between the floor and the cabinet bottom edge, so when you put the cabinet on the ground, it will not hit the modules and the led lamps at the edge.

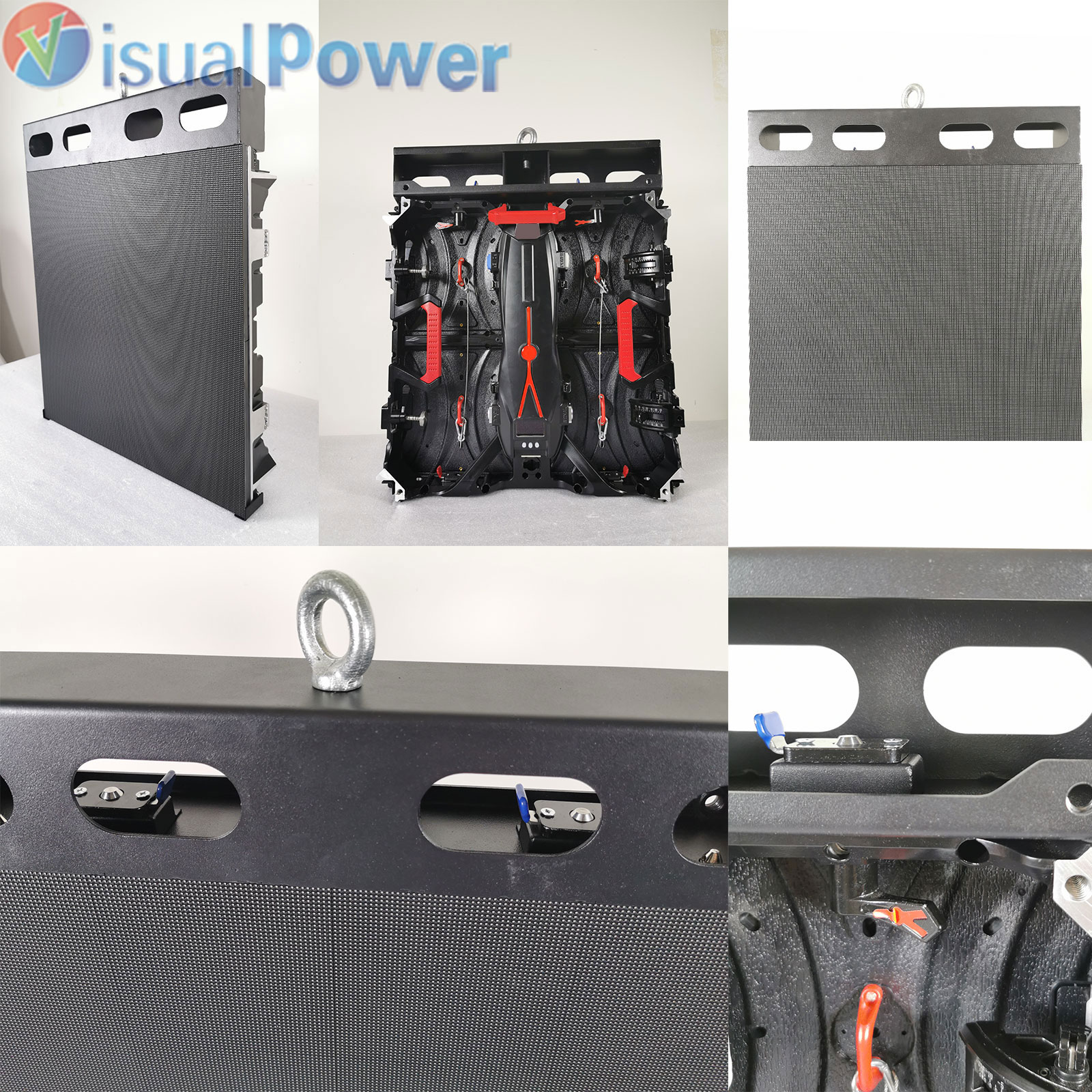

The eiffel series led display design hanging beam can be made into straight or slope type according to the cabinet shape. For curved lock type, the hanging beam will have two slopes at two sides, so that when assembling curved shape, the hanging beam will not block the way.
Eiffel series also has more advantages such as digital display, anti-hit soldering points and so on.
By Kinglight or Nationstar LED lamp, MBI5153 or ICN2153 driver IC, it has pure color and high refresh rate over 3840HZ.
| Indoor Eiffel series 480*480mm event rental led display | ||
| Model | P1.875-1/32 scan indoor | P2.5-1/32 scan indoor |
| Pixel configuration | SMD1515 black led lamp | SMD2121 black led lamp |
| Pixel pitch | 1.875mm | 2.5mm |
| Scan rate | 1/32 scanning, constant current | 1/32 scanning, constant current |
| Module size （W×H) | 240*240MM | 240*240MM |
| Resolution per module | W 128 x H 128 pixels | W 96 x H 96pixels |
| Standard cabinet dimension(W×H×D) | 480×480×85mm | 480×480×85mm |
| Pixel resolution/cabinet (W×H) | 256 x 256pixels | 192 x 192pixels |
| Resolution/sqm | 284,444 dots/㎡ | 160,000 dots/㎡ |
| Minimum viewing distance | Minimum 1.8 meters | Minimum 2.5 meters |
| Brightness | 800CD/M2 | 800CD/M2 |
| Gray scale | 16 bit, 65536 steps | 16 bit, 65536 steps |
| Color Number | 281trillion | 281trillion |
| Display Mode | Synchronous with video source | Synchronous with video source |
| Refresh rate | ≥3840HZ | ≥3840HZ |
| Viewing angle(degree) | H/160,V/140 | H/160,V/140 |
| Temperature range | -20℃ to +60℃ | -20℃ to +60℃ |
| Ambient Humidity | 10%-99% | 10%-99% |
| Service access | front and rear | front and rear |
| Standard cabinet weight | 7.5kgs/cabinet | 7.5kgs/cabinet |
| Max.Power Consumption | Max: 200w/panel | Max: 200w/panel |
| Protection Level | Front: IP43 Rear: IP31 | Front: IP43 Rear: IP31 |
| Lifetime to 50% brightness | 75,000hr | 75,000hr |
| LED Failure Rate | <0,00001 | <0,00001 |
| MTBF | > 10.000 hours | > 10.000 hours |
| Input power cable | AC110V /220V | AC110V /220V |
| Signal input | DVI | DVI |
| Eiffel series 500*500mm event rental led display Series | |||||
| Model | P2.604-1/32 scan indoor | P2.976-1/28 scan indoor | P3.91-1/16 scan indoor | P3.91-1/16 scan outdoor | P4.81-1/13 scan outdoor |
| Pixel configuration | SMD1515 or SMD2121 black led lamp | SMD1515 or SMD2121 black led lamp | SMD2121 black led lamp | SMD1921 black led lamp | SMD1921 black led lamp |
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 3.91mm | 4.81mm |
| Scan rate | 1/32 scanning, constant current | 1/28 scanning, constant current | 1/16 scanning, constant current | 1/16 scanning, constant current | 1/13 scanning, constant current |
| Module size （W×H) | 250*250MM | 250*250MM | 250*250MM | 250*250MM | 250*250MM |
| Resolution per module | W 96 x H 96 pixels | W 84 x H 84pixels | W 64 x H 64pixels | W 64 x H 64pixels | W52 x H52pixels |
| Standard cabinet dimension(W×H×D) | 500×500×85mm | 500×500×85mm | 500×500×85mm | 500×500×85mm | 500×500×85mm |
| Pixel resolution/cabinet (W×H) | 192 x 192pixels | 168 x 168pixels | 128 x 128pixels | 128 x 128 pixels | 104 x 104pixels |
| Resolution/sqm | 147,456 dots/㎡ | 112,896 dots/㎡ | 65,536dots/㎡ | 65,536dots/㎡ | 43,264 dots/㎡ |
| Minimum viewing distance | Minimum 2.6 meters | Minimum 2.9 meters | Minimum 3.9 meters | Minimum 3.9 meters | Minimum 4.8 meters |
| Brightness | 900(SMD1515)-1200CD/M2 | 900(SMD1515)-1200CD/M2 | 1200CD/M2 | 4600CD/M2 | 4500CD/M2 |
| Gray scale | 16 bit, 65536 steps | 16 bit, 65536 steps | 16 bit, 65536 steps | 16 bit, 65536 steps | 16 bit, 65536 steps |
| Color Number | 281trillion | 281trillion | 281trillion | 281trillion | 281trillion |
| Display Mode | Synchronous with video source | Synchronous with video source | Synchronous with video source | Synchronous with video source | Synchronous with video source |
| Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| Viewing angle(degree) | H/160,V/140 | H/160,V/140 | H/160,V/140 | H/160,V/140 | H/160,V/140 |
| Temperature range | -20℃ to +60℃ | -20℃ to +60℃ | -20℃ to +60℃ | -20℃ to +60℃ | -20℃ to +60℃ |
| Ambient Humidity | 10%-99% | 10%-99% | 10%-99% | 10%-99% | 10%-99% |
| Service access | front and rear | front and rear | front and rear | rear | rear |
| Standard cabinet weight | 8.5kgs/cabinet | 8.5kgs/cabinet | 8.5kgs/cabinet | 8.5kgs/cabinet | 8.5kgs/cabinet |
| Max.Power Consumption | Max: 200w/panel | Max: 200w/panel | Max: 200w/panel | Max: 200w/panel | Max: 200w/panel |
| Protection Level | Front/rear: IP43 | Front/rear: IP43 | Front/rear: IP43 | Front: IP65 rear:IP54 | Front: IP65 rear:IP54 |
| Lifetime to 50% brightness | 75,000hr | 75,000hr | 75,000hr | 75,000hr | 75,000hr |
| LED Failure Rate | <0,00001 | <0,00001 | <0,00001 | <0,00001 | <0,00001 |
| MTBF | > 10.000 hours | > 10.000 hours | > 10.000 hours | > 10.000 hours | > 10.000 hours |
| Input power cable | AC110V /220V | AC110V /220V | AC110V /220V | AC110V /220V | AC110V /220V |
| Signal input | DVI | DVI | DVI | DVI | DVI |
