First generation fine pitch led display 600-337.5 series

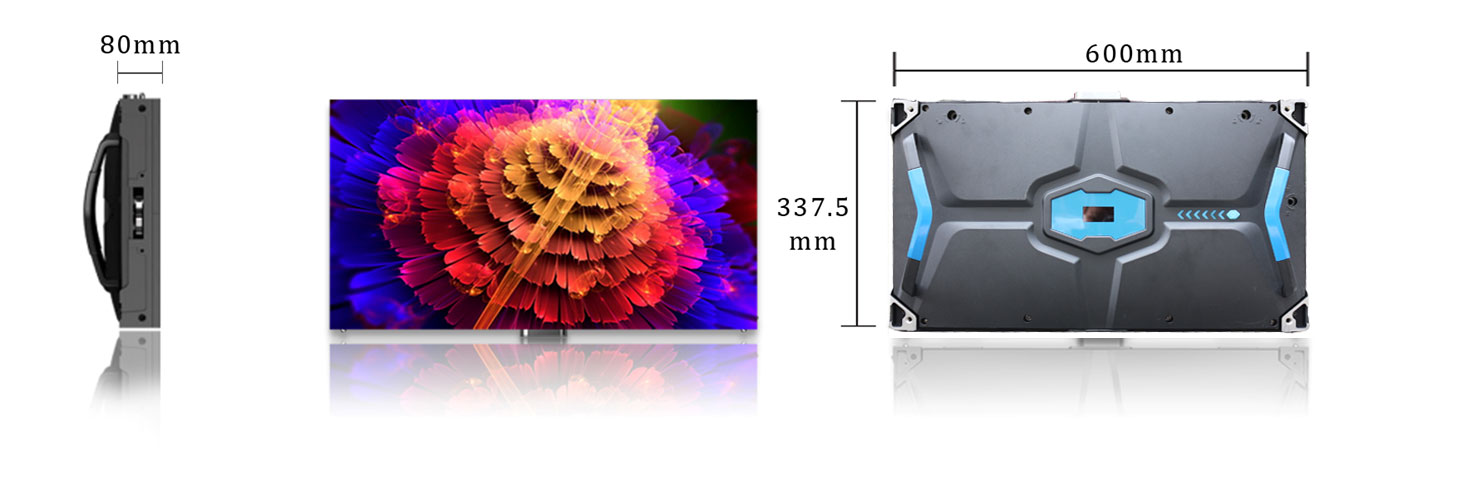

600*337.5mm private mould fine pitch led display is a 16:9 display ratio display designed for high end visual project.

such as banks, cinema, control center, shopping malls, event rental and so on.

The pixel pitch ranges from 1.25mm to 1.875mm.

All the product series are front serviceable.

Features:

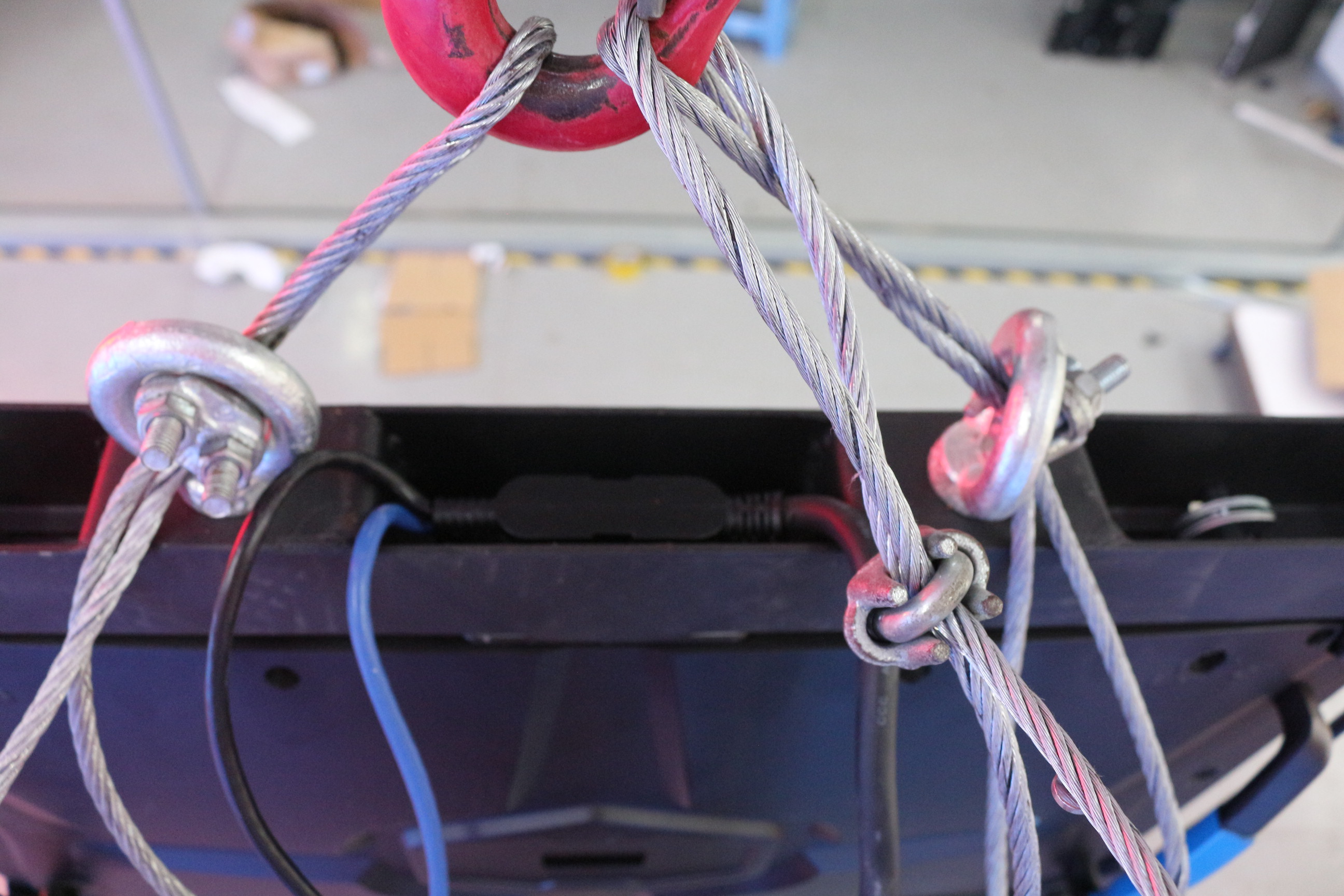

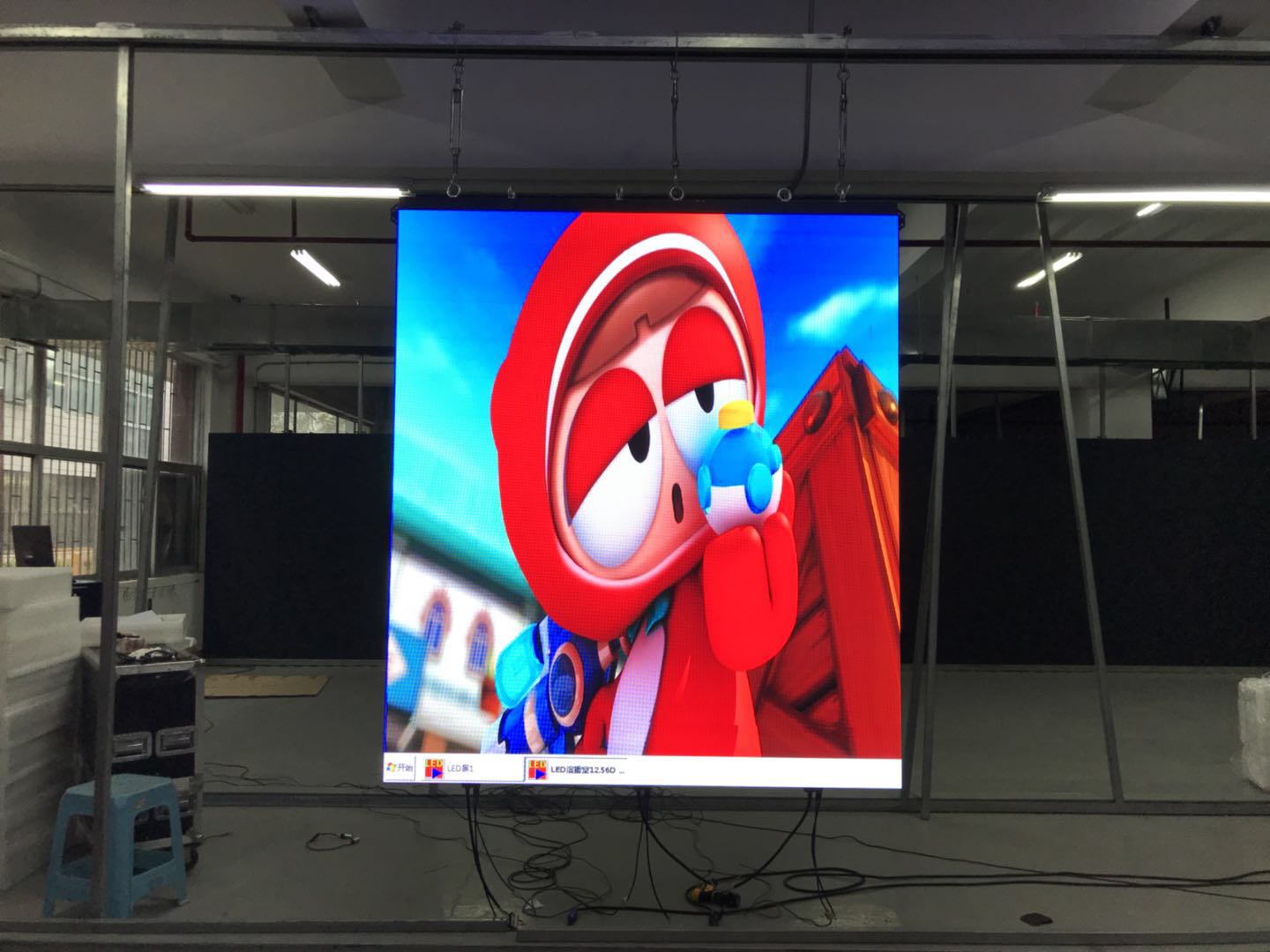

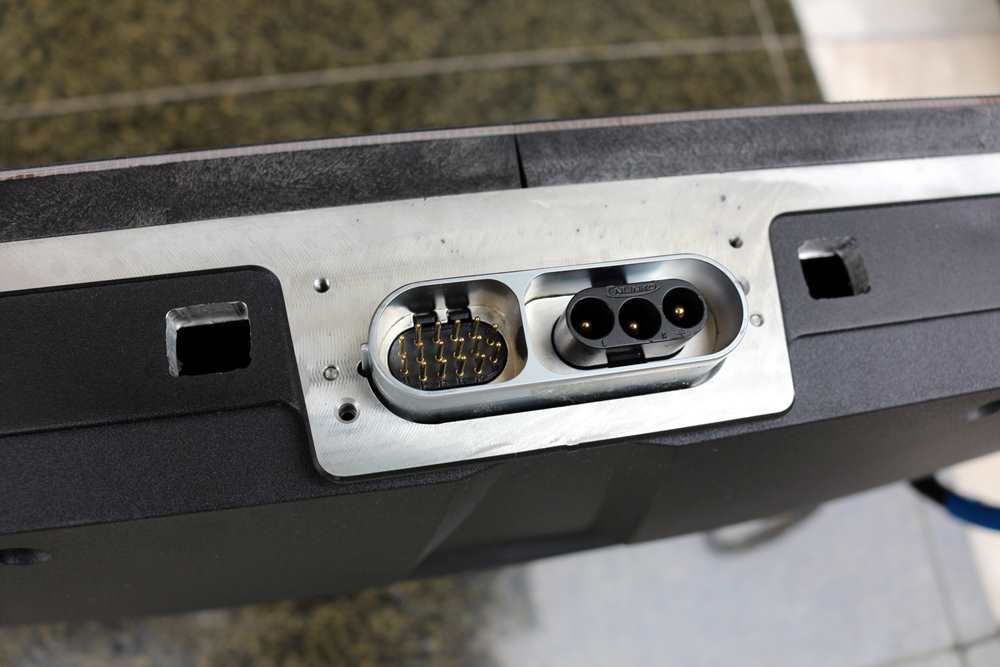

Support hanging installation for event and stage rental.can do wireless connection type, no need common CAT5 cable or power cable, all the connections between the cabinets are wireless. the backside of the display looks clean and neat.

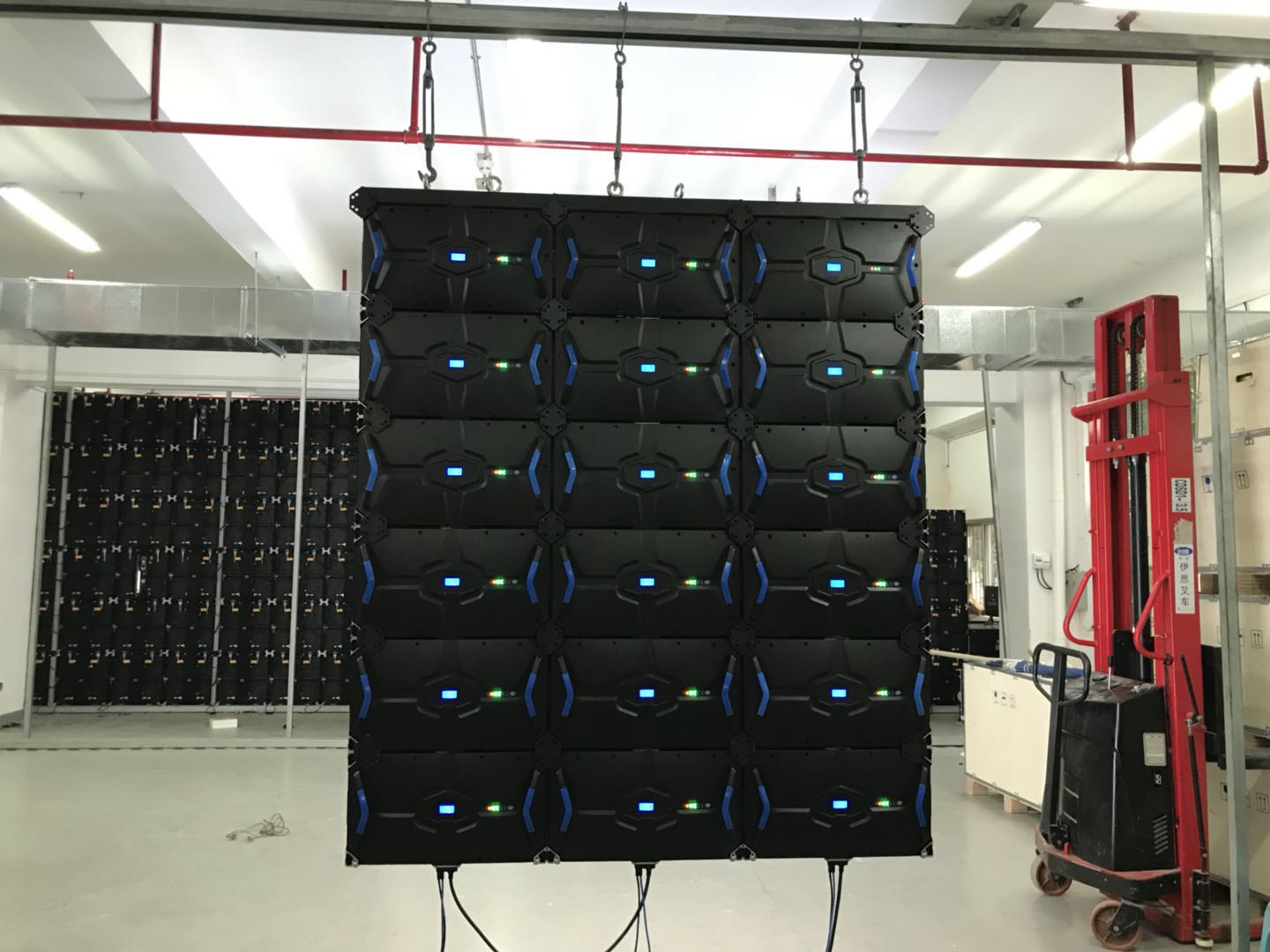

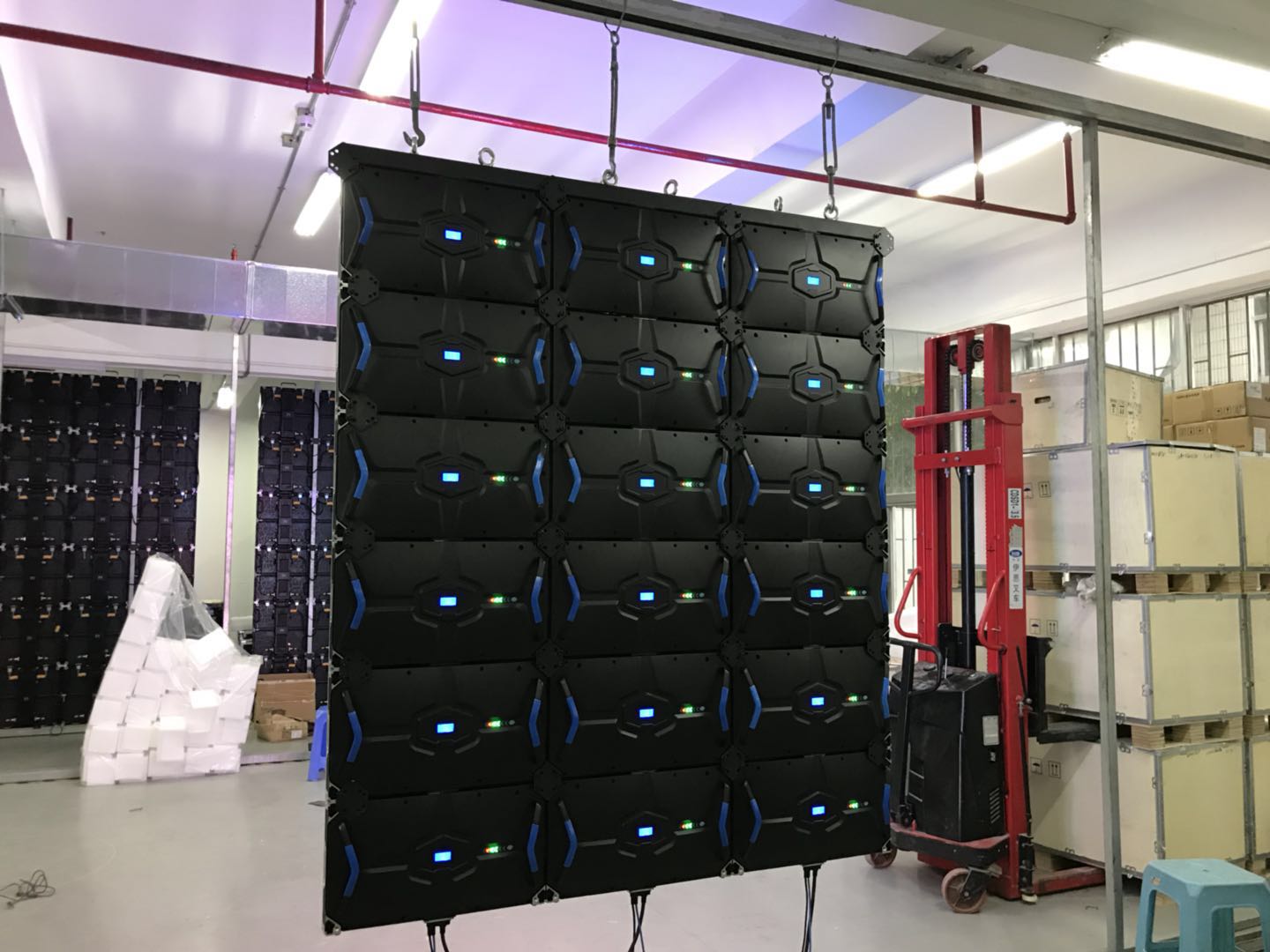

If do wirelss connection, the cables can come in from the top or from the bottom of each column. Below the cables come in from the bottom of each column

It can also come in from the top of each column as below

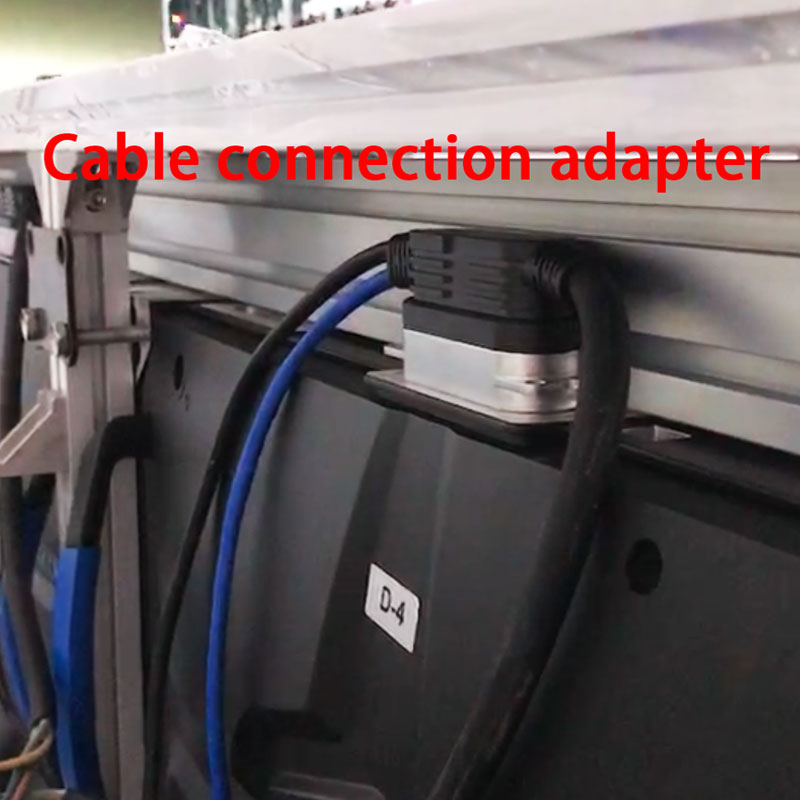

At each column end, it has an adapter for power and signal cable connection

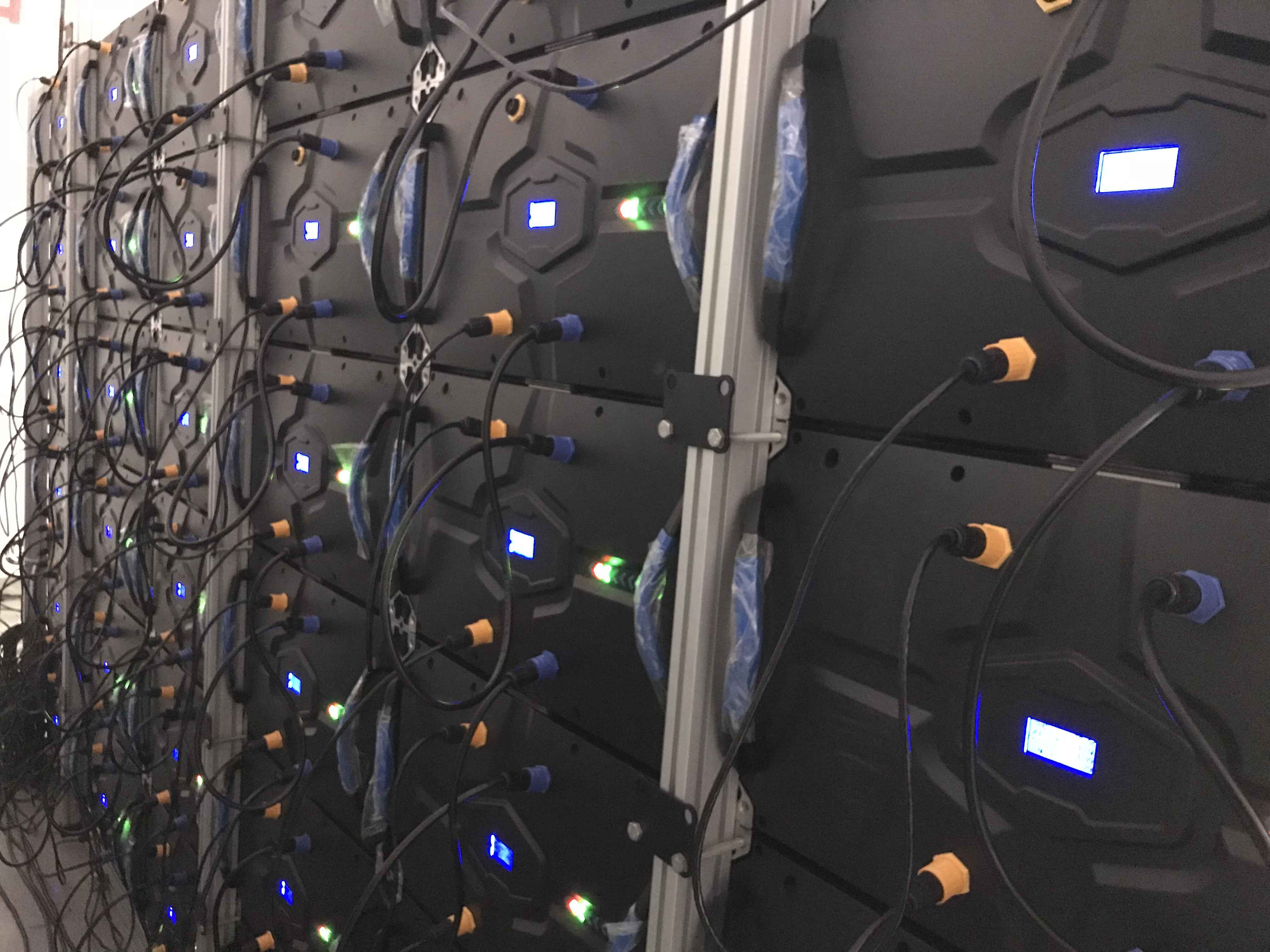

The cabinets can also do common wired type which goes the common routine of “N” or “Z”

The advantage of wired type is that it can follow the common routine and save some sending cards. The disadvantage is that it will have many cables and will look a little messy.

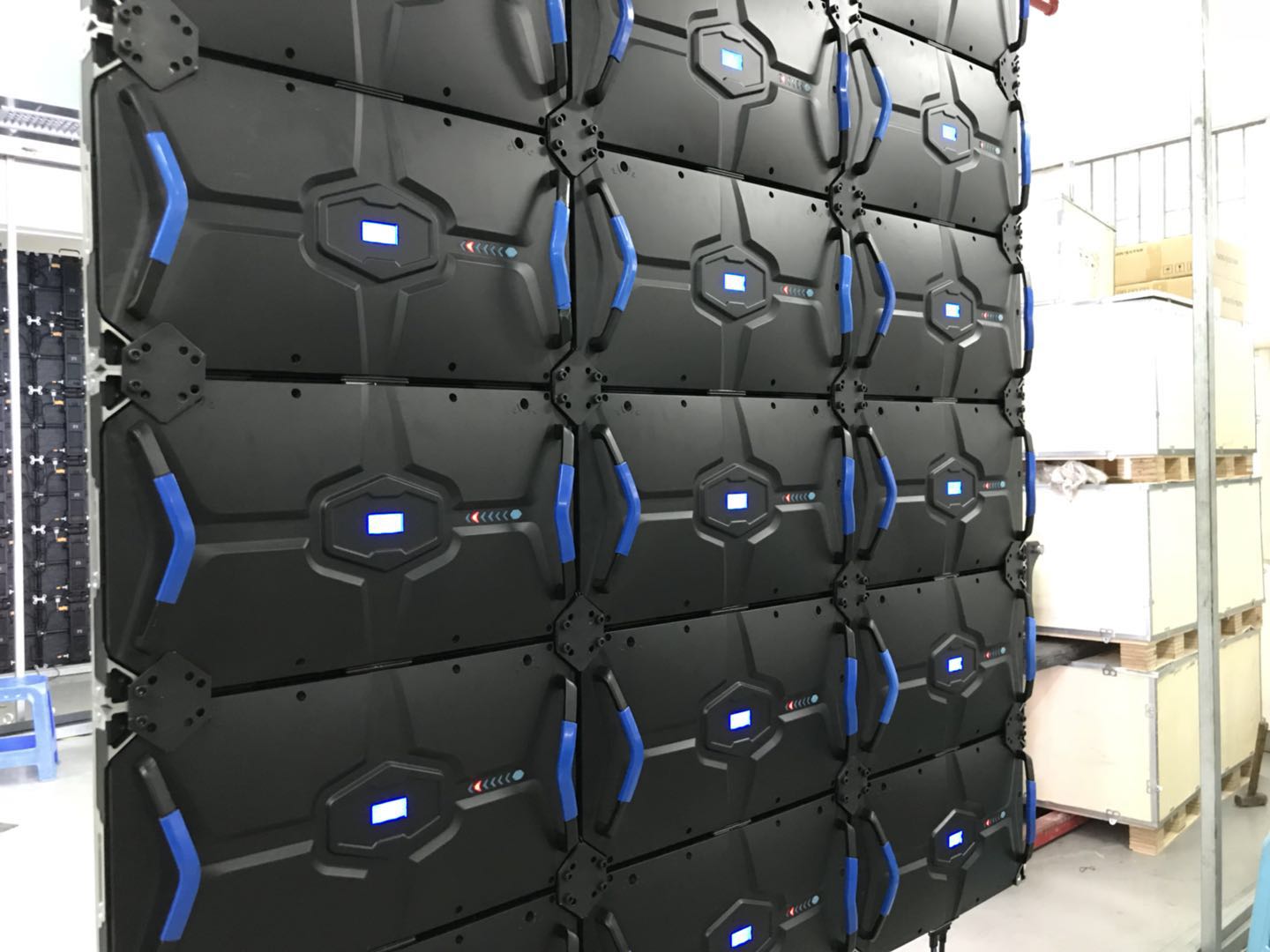

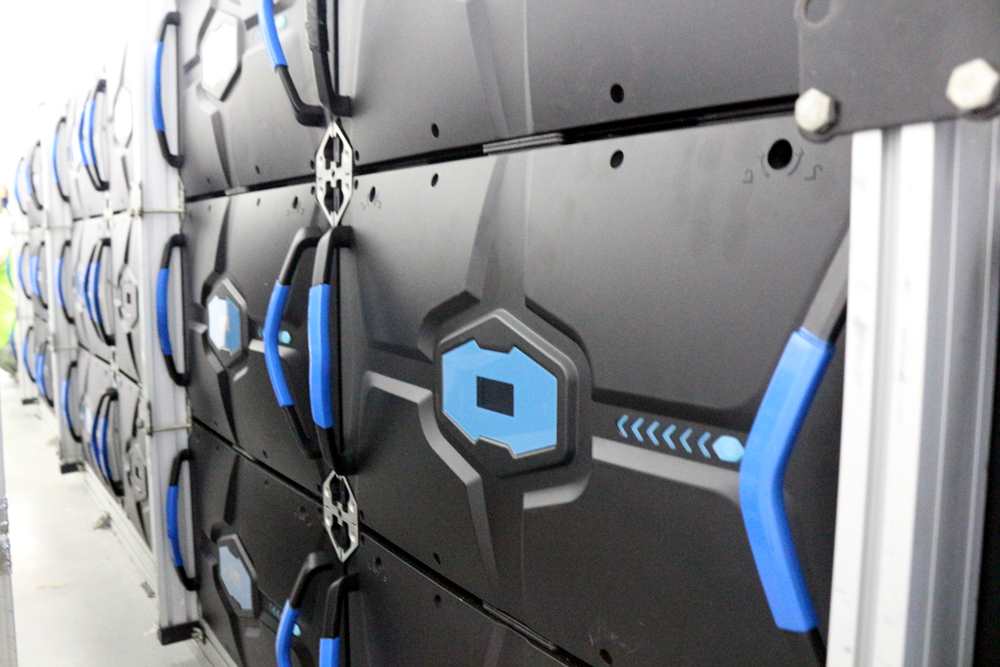

Each Cabinet back has digital display which can show the running temperature and other parameters.

All the product series supports front service way. By visualpower’s specially designed vacuum cleaner type front service tool, the modules can be easily pulled out from the front side,and with soft rubber sucker design, it will not damage the led modules.
