Fine pitch LED dislay

» Fine pitch LED dislay

    • X2 series 600-337.5mm fine pitch LED display

    CATEGORY AND TAGS:
    Fine pitch LED dislay, Fixed LED Display , , , , , , , ,

    Uniform W600*H337.5mm 16:9 aspect ratio design for all pixel pitches

    ultra slim and light weight

    suitable for wall mount or hanging or stacking.



    Downloadenquiry
    • Description
    • Specification

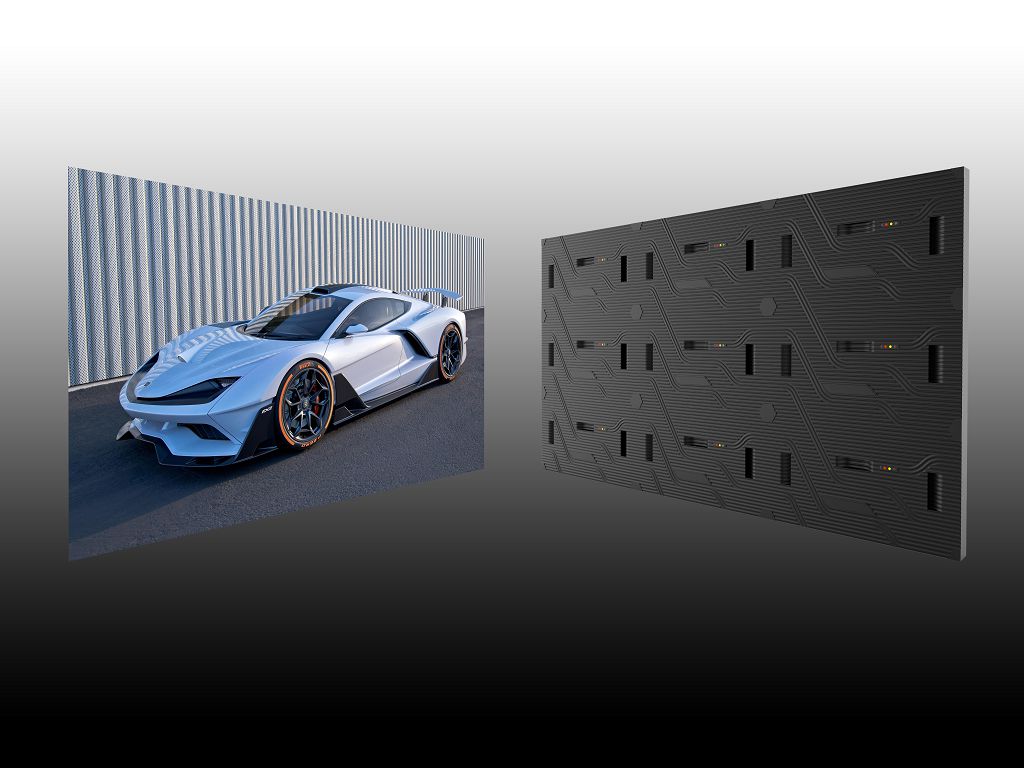

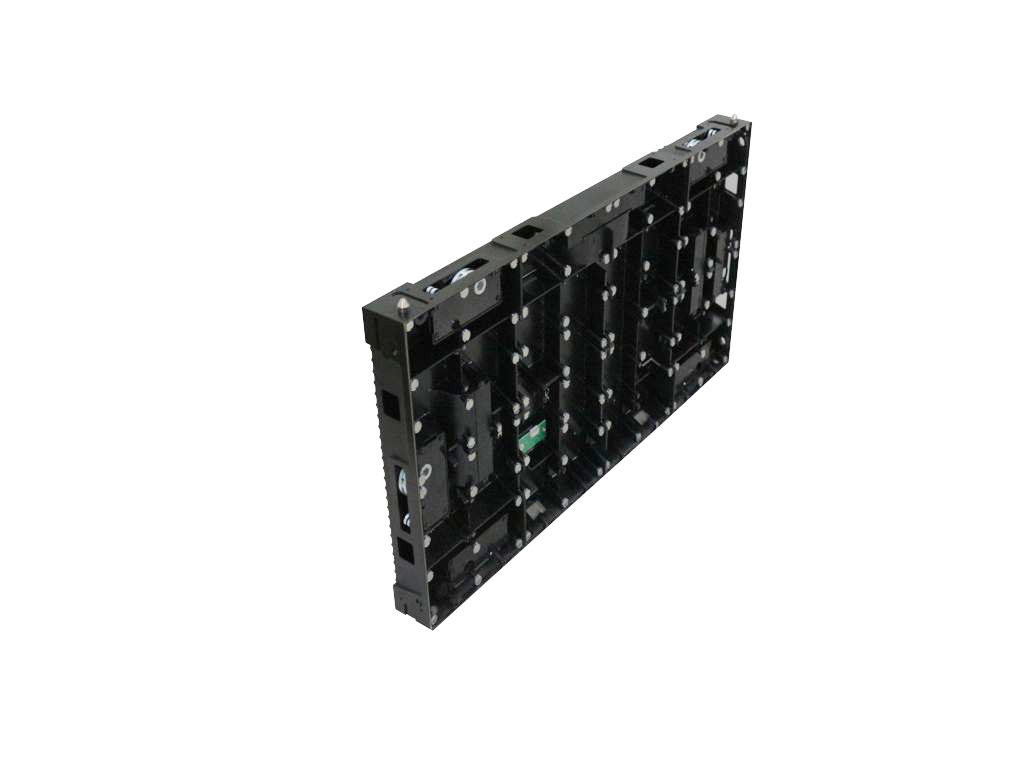

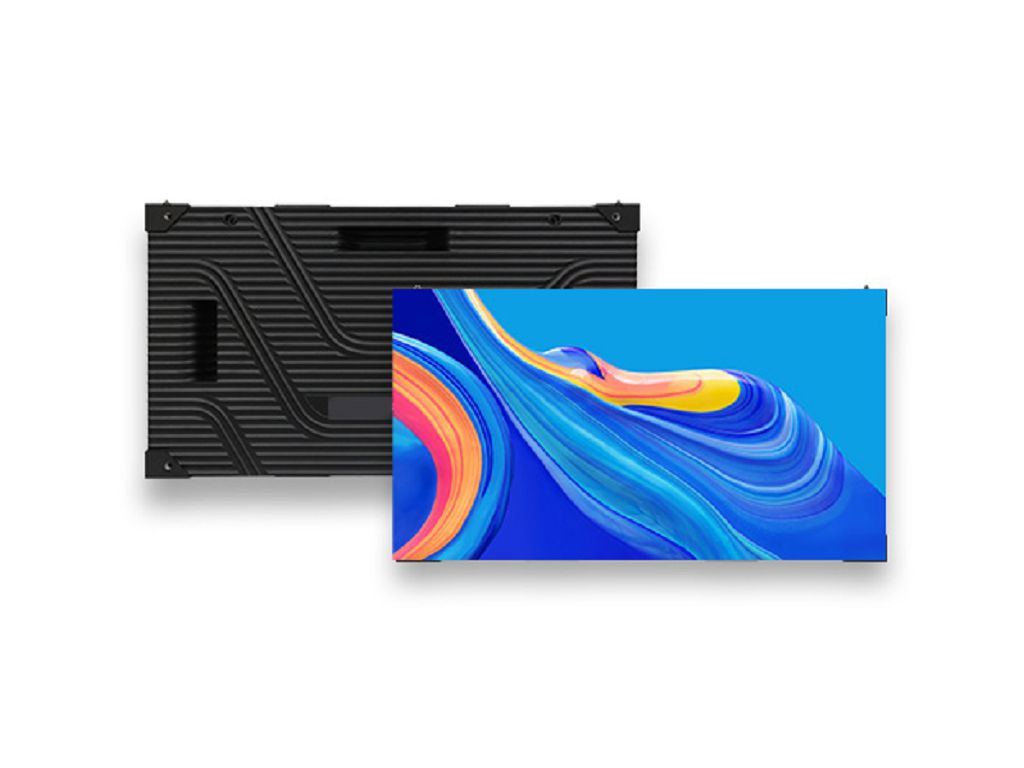

    This is an updated design of 600*337.5mm indoor fine pitch led display cabinet.

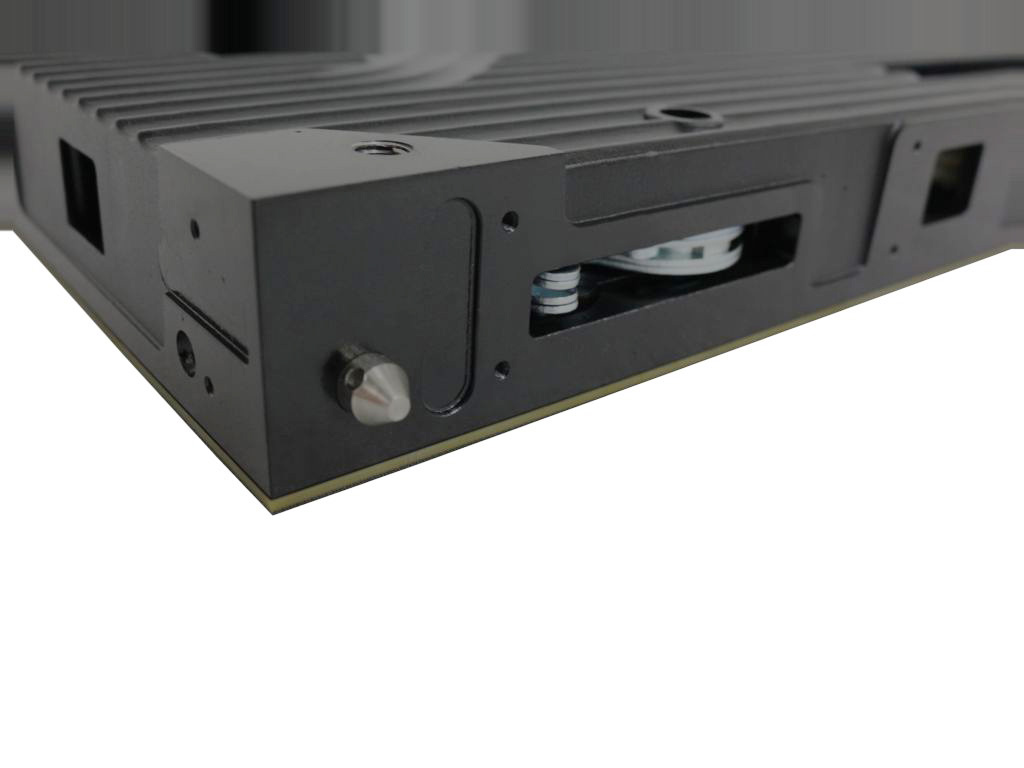

    Ultra slim design total only 48mm including modules.

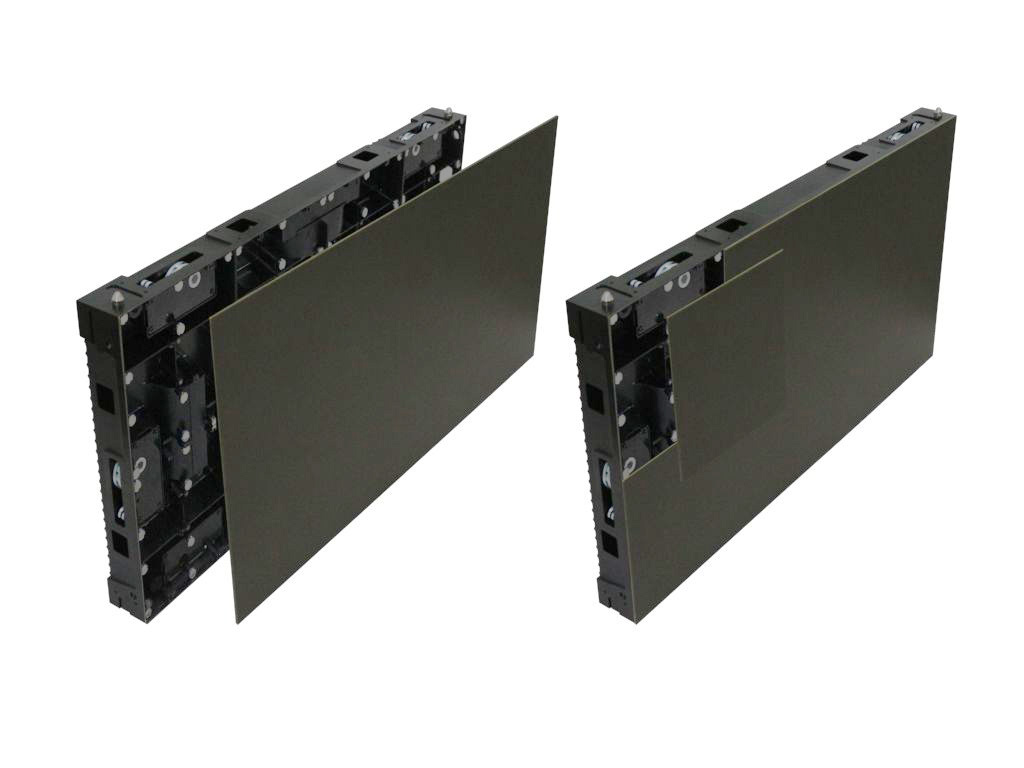

    total front installation and front service, wit calibration.

    all cables hard connection.

    precise mould design

    power and signal wireless design

    Parameters P0.9 P1.25 P 1.56 P1.875
    LED module Pixel pitch 0.9375mm 1.25mm 1.5625mm 1.875mm
    Pixel configuration Nationstar 4 in 1 common cathode LED SMD1010 black lamp SMD1212 black lamp SMD1515 black lamp
    LED lamp brightness R:15-30mcd
    G:25-40mcd
    B:4-10mcd    		 R:20-26mcd
    G:30-38mcd
    B:6-8mcd    		 R:20-26mcd
    G:30-38mcd
    B:6-8mcd    		 R:20-26mcd
    G:30-38mcd
    B:6-8mcd
    LED wavelength 620-630nm
    535-545nm
    464-480nm    		 619-624nm
    522-526nm
    469-474nm    		 619-624nm                       522-526nm                       469-474nm 619-624nm                       522-526nm                       469-474nm
    With mask no no yes yes
    Pixel density（pixels/㎡） 1137778 640000 409600 284444
    Resolution（W×H） 160x180 120x135 192x108 160x90
    Module size（mm） 150X168.75 150X168.75 300X168.75 300X168.75
    LED Cabinet Module Qty（W×H） 4x2 4x2 2x2 2x2
    Resolution（W×H） 640X360 480X270 384X216 320X180
    Cabinet dimenison（mm） 600(W)X337.5（H）x48(D) 600(W)X337.5（H）x48(D) 600(W)X337.5（H）x48(D) 600(W)X337.5（H）x48(D)
    Cabinet Area（m2） 0.2025 0.2025 0.2025 0.2025
    Cabinet weight（kg） 6.95 6.95 6.95 6.95
    Cabinet Material aluminum die casting Aluminum die casting Aluminum die casting Aluminum die casting
    Flatness（mm） ≦0.01 <0.1 <0.1 <0.1
    Optical features Brightness（nits） ≥450（6500K）adjustable ≥550（6500K）adjustable ≥650（6500K）adjustable ≥800（6500K）adjustable
    Color temperature（K） 3200—9300 adjustable 3200—9300 adjustable 3200—9300 adjustable 3200—9300 adjustable
    Viewing angle（H/V°） 160/160 160/160 160/160 160/160
    Light emitting offset <3% <3% <3% <3%
    brightness/color uniformity ≥97% ≥97% ≥97% ≥97%
    contrast ratio 8000:1 8000:1 8000:1 8000:1
    Brightness calibration support support support support
    color calibration support support support support
    Electric feature Max.power（W/sqm） 420 420 420 420
    Ave.power（W/sqm） 100 100 100 100
    Power supply AC100~240V，47-63（Hz） AC100~240V，47-63（Hz） AC100~240V，47-63（Hz） AC100~240V，47-63（Hz）
    Processing features Frame frequency（Hz） 50&60 50&60 50&60 50&60
    Driving mode Constant drive，1/30 Constant drive，1/27 Constant drive，1/27 Constant drive，1/30
    Gray scale 65536 65536 65536 65536
    refresh rate（Hz） ≥3840 ≥3840 ≥3840 ≥3840
    color depth 16bit 16bit 16bit 16bit
    Video display 2KHD，4KHD 2KHD，4KHD 2KHD，4KHD 2KHD，4KHD
    Usage working temperature/humidity（℃/RH） -20 – 60  / 10%-85%RH -20 – 60  / 10%-85%RH -20 – 60  / 10%-85%RH -20 – 60  / 10%-85%RH
    storage temperature/humidity（℃/RH） -20 – 60  / 10%-85%RH -20 – 60  / 10%-85%RH -20 – 60  / 10%-85%RH -20 – 60  / 10%-85%RH
    Certificate CE FCC CE FCC CE FCC CE FCC
