300-168.75mm fine pitch rigid and flexible LED display combination

CATEGORY AND TAGS:
Fine pitch LED dislay, Fixed LED Display, Flexible LED display concave, convex, Curved display, flexible led dispaly, Flexible LED module, P1.25, P1.5625, P1.875, P2.5, rigid and flexible combination, special shape led display, XR LED display

Fine pitch curved LED display
flexible LED display
corner LED display
irregular shape LED display
flexible and rigid module combination
straight and curved LED display combination

Download enquiry

Description
Specification

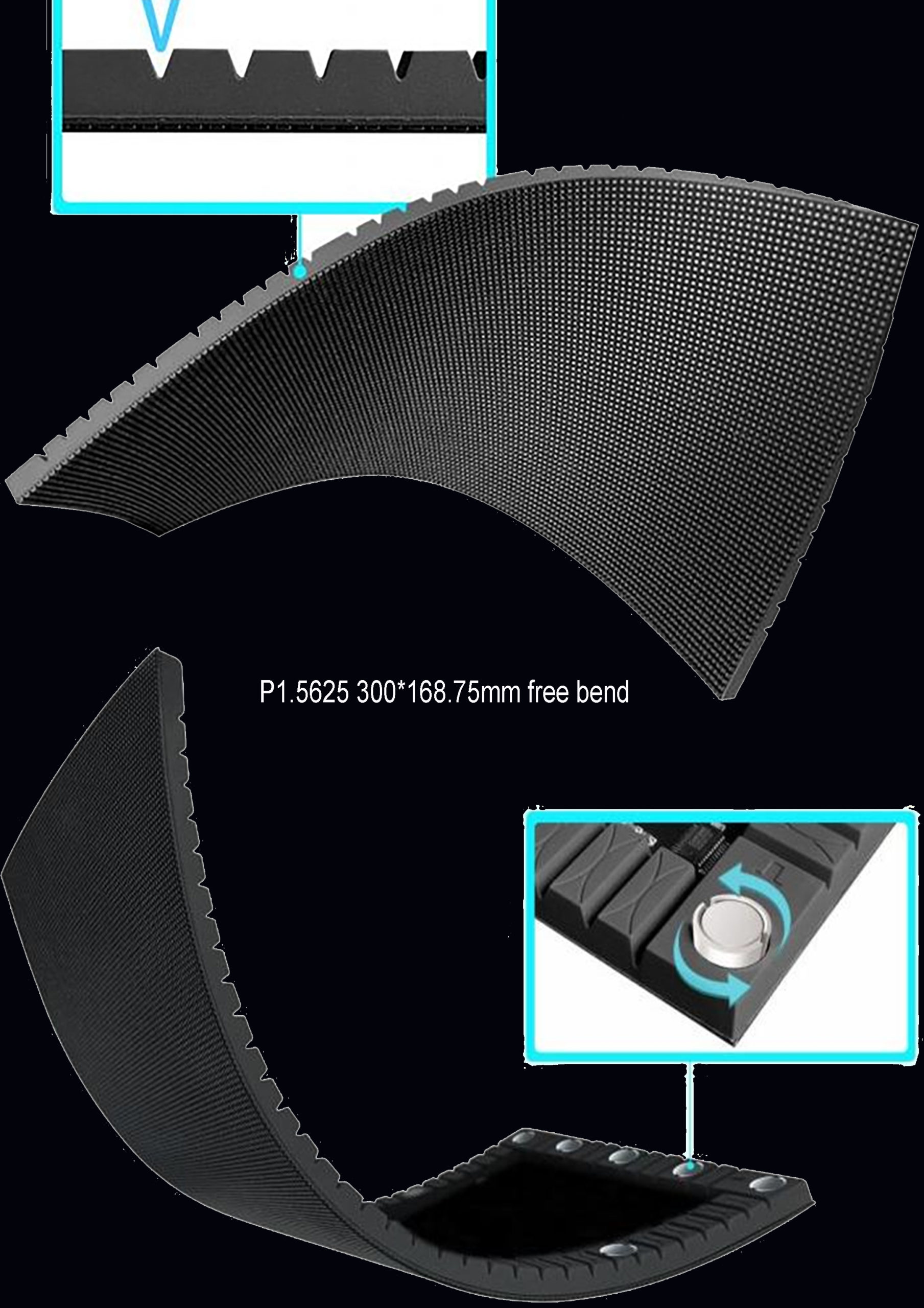

300*168.75mm flexible LED display module is designed for high end fine pitch indoor curved displays.

It is suitable fro close viewing distance and high resolution applications such as TV stations, company showroom, XR displays, banks, stock market .etc.

By 300*168.75mm uniform module size, it can be used to form 16:9 display ratio.

compatible model: P1.25/P1.5625/P1.875/P2.5

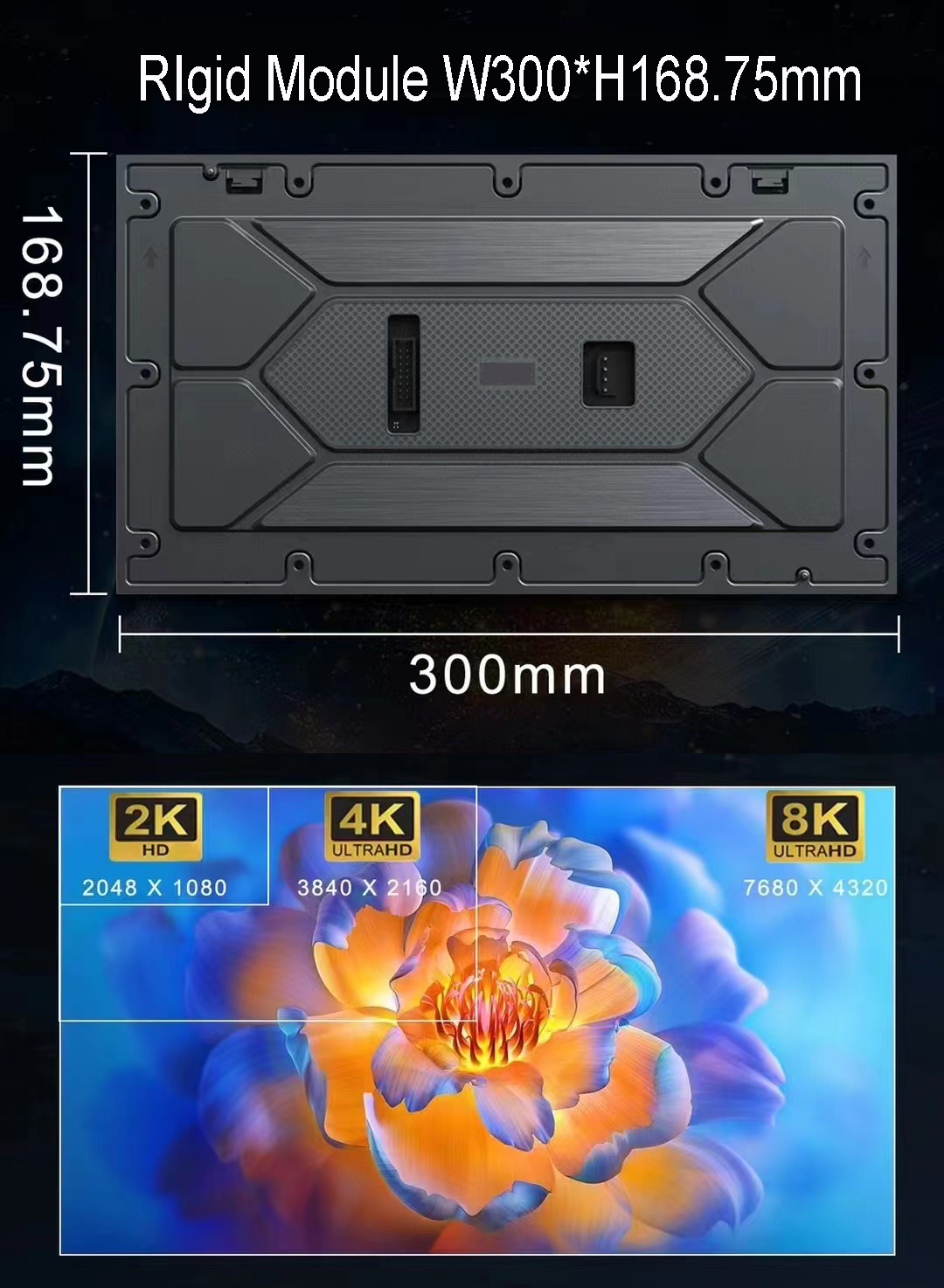

and by Visualpower same 300*168.75mm rigid display modules, it can be used to form curved display and straight display combination to do curved corner LED displays.

for the straight part, use rigid modules, it can reach better flatness.

and for curved part by flexible led module, it can make smooth curve.

Item		P1.25	P1.5625	P1.875
Technical	Pixel configuration	1R1G1B（full color）	1R1G1B（full color）	1R1G1B（full color）
	LED lamp type	SMD 1010 CHIP	SMD 1212	SMD 1515
	Pixel density（pixels/㎡）	640000	409600	284440
	Module size（mm）	300X168.75X7.5 （LxWxD）	300X168.75X7.5 （LxWxD）	300X168.75X7.5 （LxWxD）
	Module resolution	240X135	192X108	160X90
	scan number	45scan	54scan	45scan
	Driver IC type	PWM	PWM	PWM
	Refresh（Hz）	3840hz	3840hz	3840hz
	frame frequency（Hz）	60hz	60hz	60hz
	gray scale（bit）	13-14bit	13-14bit	12-13bit
	Smallest diameter	1146mm	955mm	764mm
	bend arc degree	≥165°	≥162°	≥158°
	HUB port type	HUB320(no cascade）	HUB75(no cascade）	HUB75(no cascade）
	Module bottom frame material	silicon rubber	silicon rubber	silicon rubber
	Module net weight（g/PCS）	280g	280g	290g
	flatness（mm）	≤ 0.3 mm	≤ 0.3 mm	≤ 0.5 mm
	IP rating	IP30	IP30	IP30
	Installation and service way	front or back	front or back	front or back
Optical	brightness（nits）	600-650cd	600-650cd	700-750cd
	color temperature（K）	10000-12000 K adjustable	10000-12000 K adjustable	10000-12000 K adjustable
	coordination	X:0.2500 Y:0.3000 ±0.01	X:0.2500 Y:0.3000 ±0.01	X:0.2500 Y:0.3000 ±0.01
	Horizontal/Vertical viewing angle	X:160° / Y:140°	X:160° / Y:140°	X:160° / Y:140°
	Contrast ratio	≥6000:1	≥6000:1	≥5000:1
Electrical	module Working voltage DC（V）	5V	5V	5V
	Module Max current DC（A）	4.5A	4.2A	4A
	Module Max. power（w/PCS）	22.5 w	21 w	20w
	Input voltage AC（V）	110-220 V	110-220 V	110-220 V
	Max. Power consumption（w/m2）	450w	420w	400 w
	Ave. Power consumption（w/m2）	128 w	120 w	115 w
Usage	Life span typical（h）	100 000 h	100 000 h	100 000 h
