transparent LED display

» transparent LED display

    • Description
    • specification

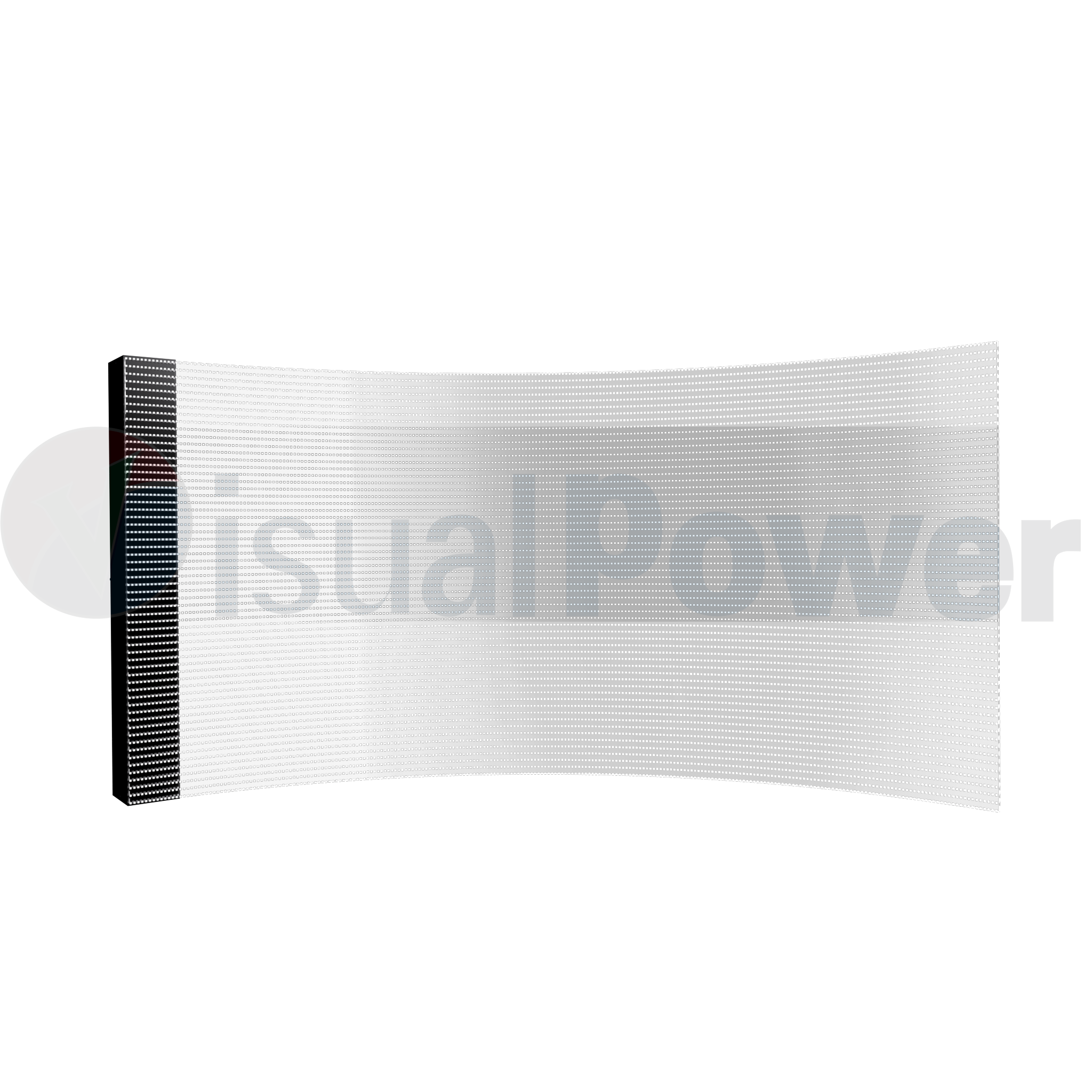

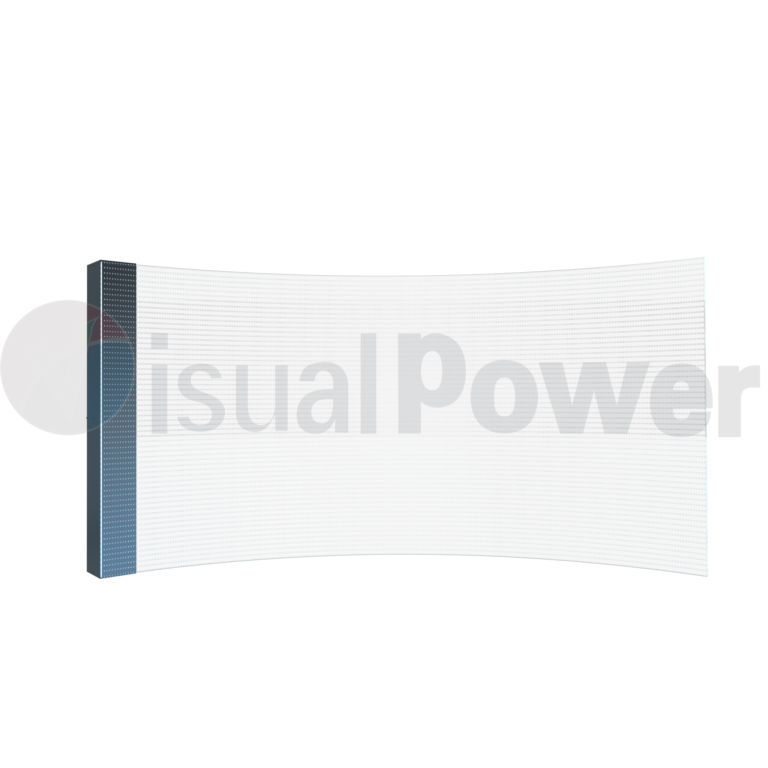

    Transparent flexible film display is used for glass surface to transform the glass into a display surface. The LED film is very thin only 3mm, and can be sticking to the glass surface easily.

    The LED is with driver IC inside, one LED dead will not affect the other led pixels.

    It is widely used for cloth, jewelry store, shop windows.

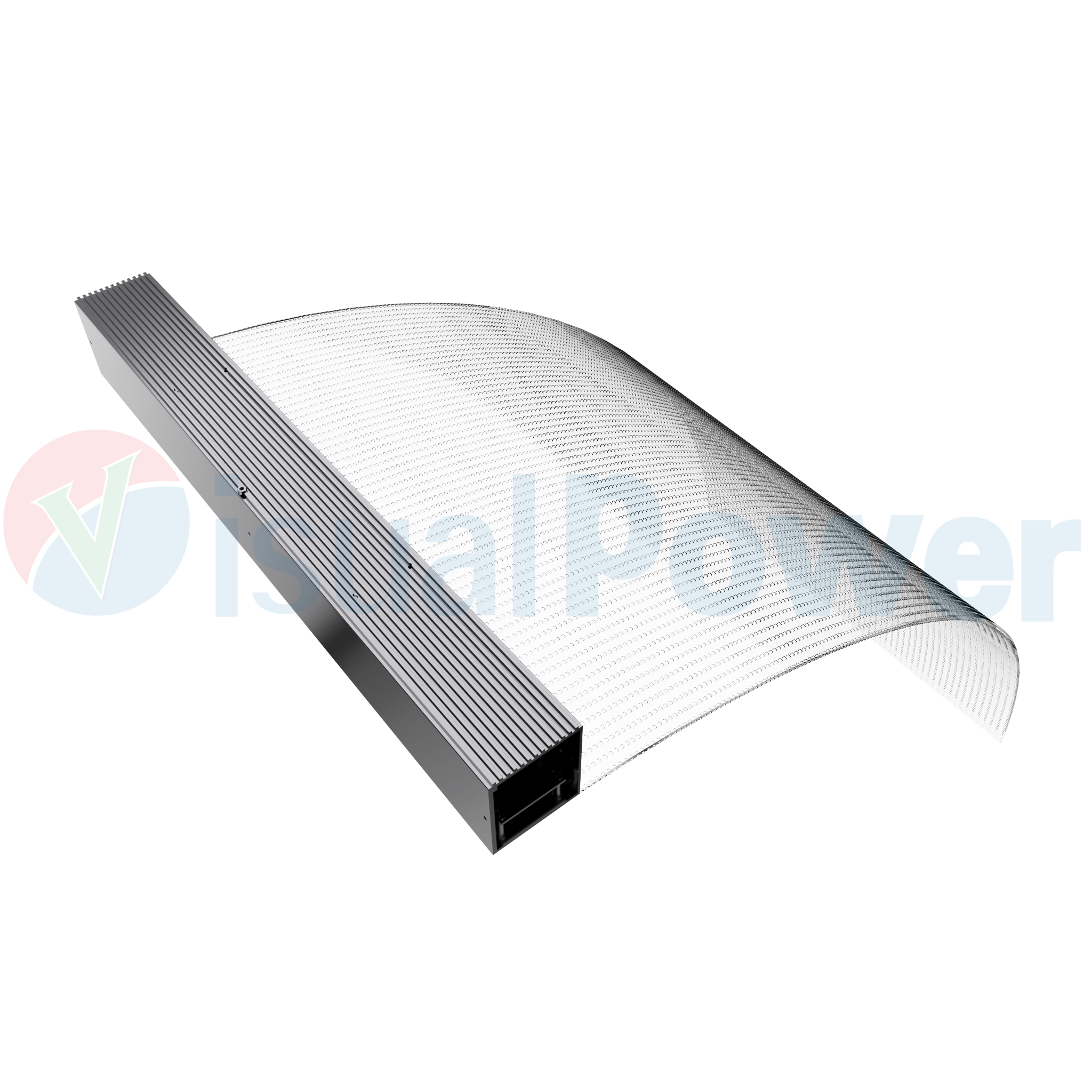

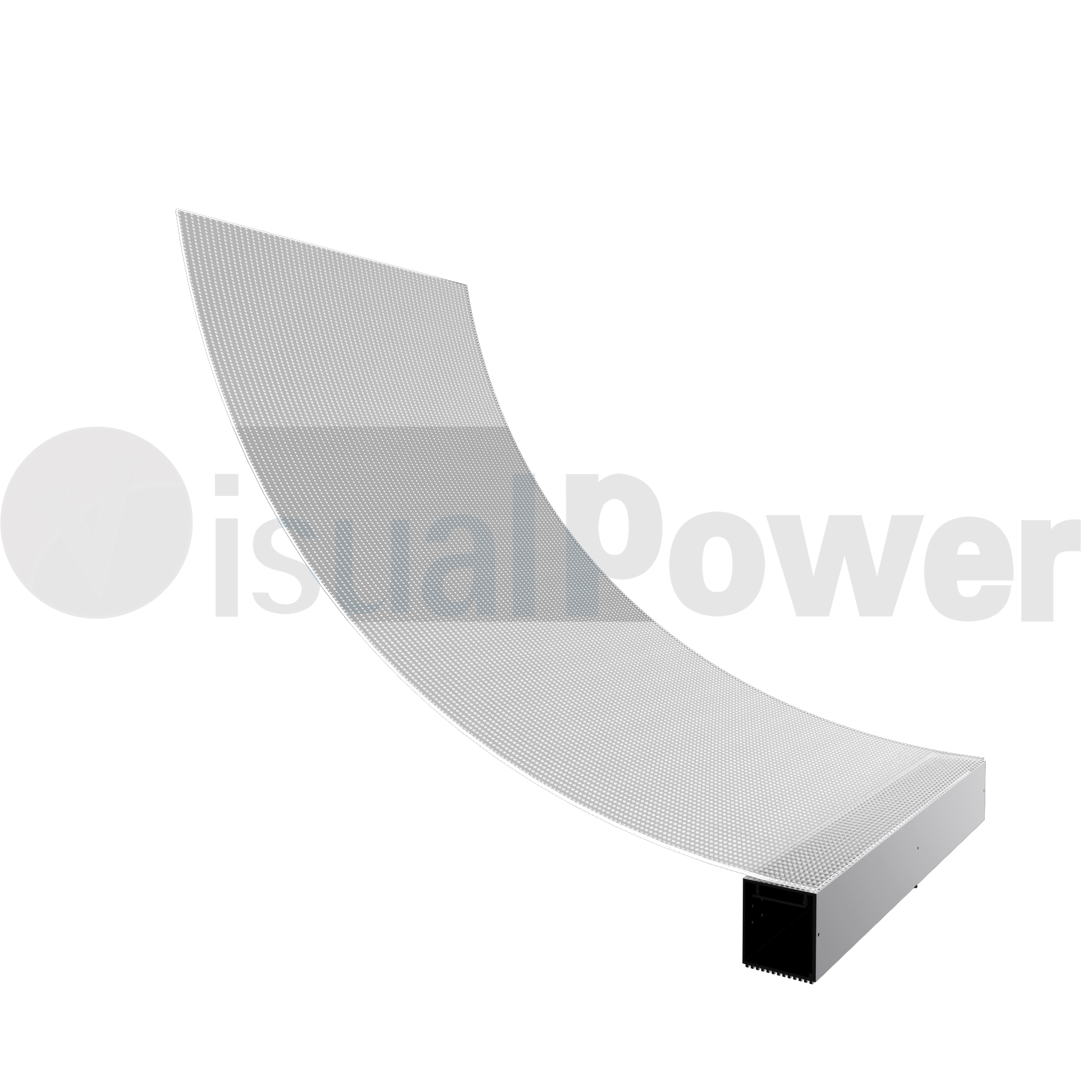

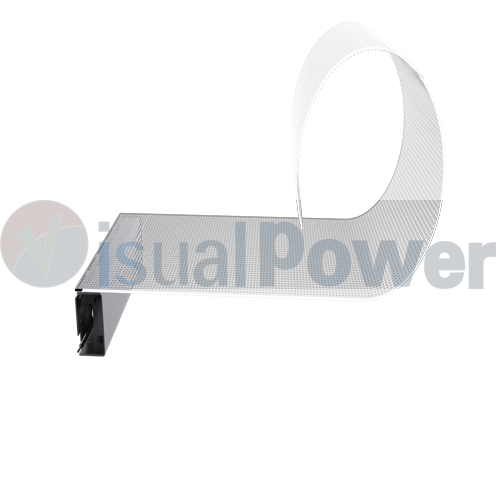

    LED panel is bendable, LED embedded in transparent PET film

    LED panel is cuttable to do special shape and size displays

               Transparent LED film display
    Item specs
    LED type SMD2121 with integrated driver IC
    Model P6 P8 P10 P15 P20
    Resolution/module(H*W) 136x64 100x50 80x40 66*26 50x20
    pixel Qty/module 8704 5000 3200 1716 1000
    pixel density（pixels/㎡） 27777 15625 10000 4356 2500
    Module size(H*W)（㎜） 816x384x2 800x400x2 800x400x2 1000x400x2 1000x400x2
    Module area 0.32(㎡) 0.32(㎡) 0.32(㎡) 0.4(㎡) 0.4(㎡)
    transparent ratio ≥85 ≥90 ≥95 ≥97 ≥97
    brightness 4800 4000 4000 2000 2000
    brightness/color uniformity ≥97％
    viewing angle 160x160
    Typical life span 100,000H
    PWM support
    operating temperature  －40℃~60℃
    curved display support
    color depth 16bit
    weight 3㎏/㎡
    workign voltage 5V
