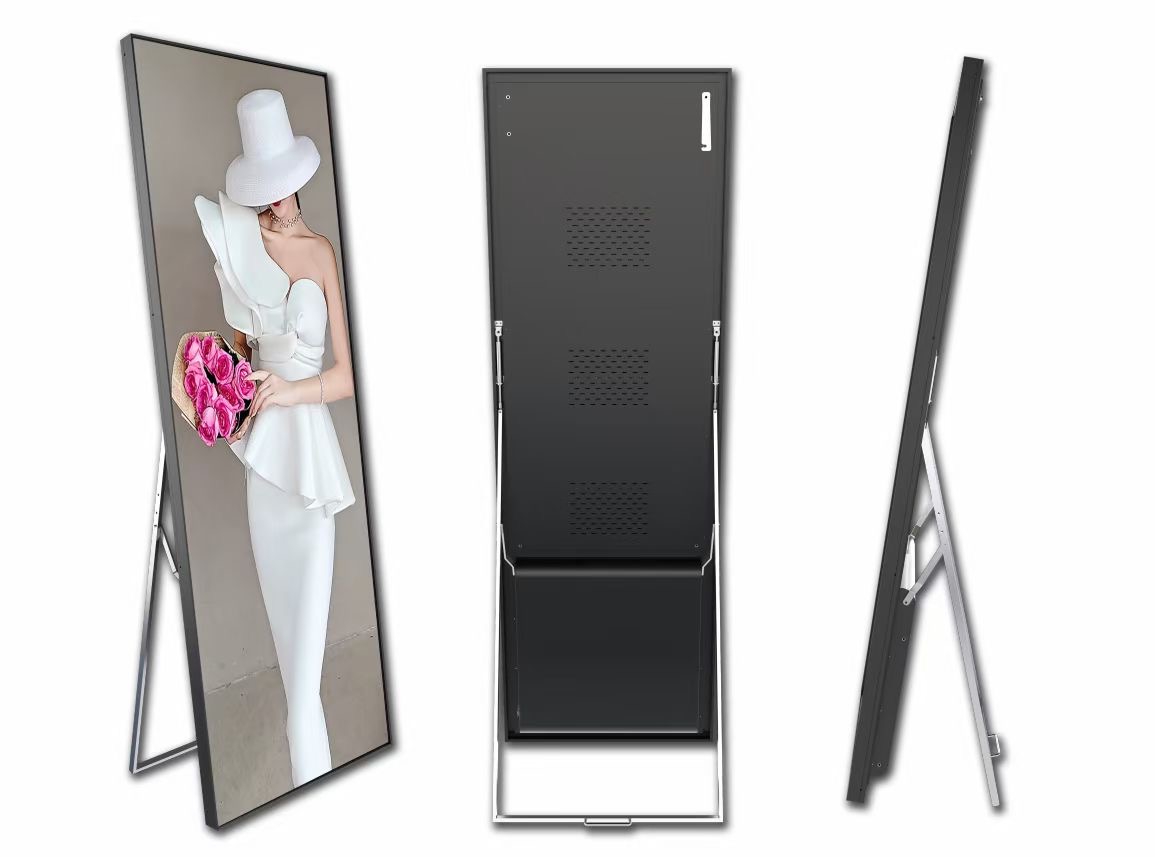

    LED poster display a unique design for event rental use or commercial use such as shops, exhibitions, fashion show .etc.

    It is very easy to use and move around.

    With W960*H1920mm uniform display size, it is compatible with most indoor led display modules with W320*H160mm size, such as P1.86, P2, P2.5.



    Visualpower Indoor LED poster Specs
    Model P1.86 P2 P2.5
    Pixel configuration Kinglight copper wire SMD1515 Kinglight copper wire SMD1515 Kinglight copper wire SMD1515
    Pixel pitch 1.86mm 2.0mm 2.5mm
    Scan rate 1/40 scanning, constant current 1/30 scanning, constant current 1/32 scanning, constant current
    Module size （W×H) 320*160MM 320*160MM 320*160MM
    Module Qty W2*H12=24PCS W2*H12=24PCS W2*H12=24PCS
    Resolution per module W172 x H 86pixels W160x H 80pixels W128 x H 64pixels
    cabinet dimension(W×H×D) W659*H1939*D93.8mm W659*H1939*D93.8mm W659*H1939*D93.8mm
    Display Area W640*H1920mm W640*H1920mm W640*H1920mm
    Pixel resolution/cabinet (W×H) W344*H1008=346,752pixels W320*H960=307,200pixels W256*H768=196,608pixels
    Resolution/sqm 289,050 dots/㎡ 250,000 dots/㎡ 160,000dots/㎡
    Minimum viewing distance Minimum 1.5 meters Minimum 2 meters Minimum 2.5 meters
    Brightness 800CD/M2 800CD/M2 800CD/M2
    Gray scale 16 bit, 8192steps 16 bit, 8192steps 16 bit, 8192steps
    Color Number 281 trillion 281 trillion 281 trillion
    Display Mode Synchronous with video source Synchronous with video source Synchronous with video source
    Refresh rate ≥3840HZ ≥3840HZ ≥3840HZ
    Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140
    working temperature range -40℃ to +70℃ -40℃ to +70℃ -40℃ to +70℃
    Ambient Humidity 10%-99% 10%-99% 10%-99%
    Service access back back back
    Standard cabinet weight 65kgs/PCS with base 65kgs/PCS with base 65kgs/PCS with base
    Max.Power Consumption 360w/pcs 360w/pcs 360w/pcs
    Ave. power consumption 120W/pcs 120W/pcs 120W/pcs
    Protection Level Front: IP43  Rear: IP31 Front: IP43  Rear: IP31 Front: IP43  Rear: IP31
    Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr
    LED Failure Rate <0,00001 <0,00001 <0,00001
    MTBF > 10.000 hours > 10.000 hours > 10.000 hours
    Input power cable AC110V /220V AC110V /220V AC110V /220V
    Signal input USB + wifi USB + wifi USB + wifi
