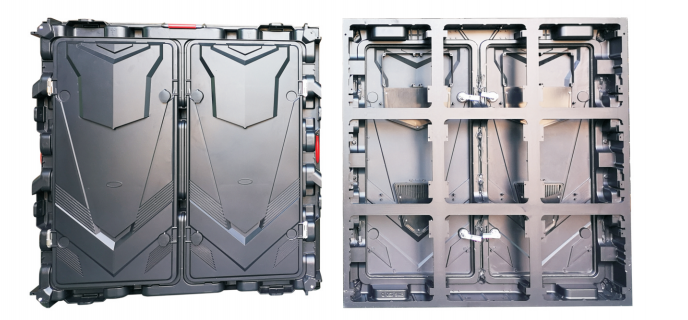

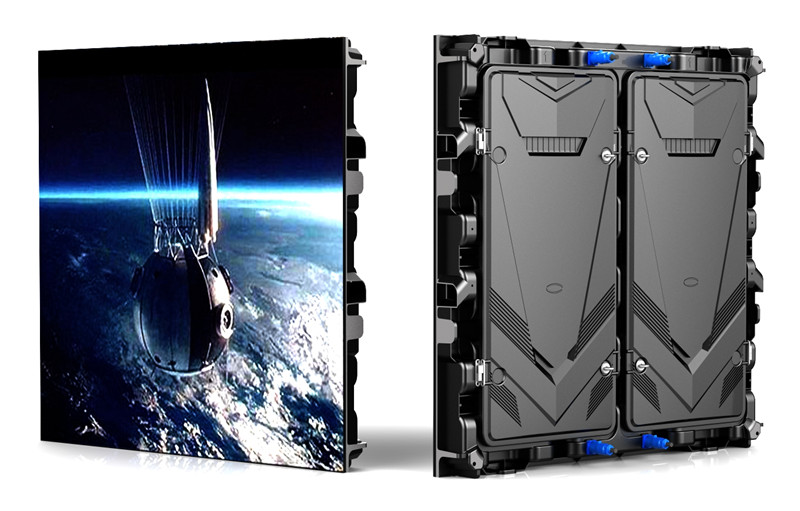

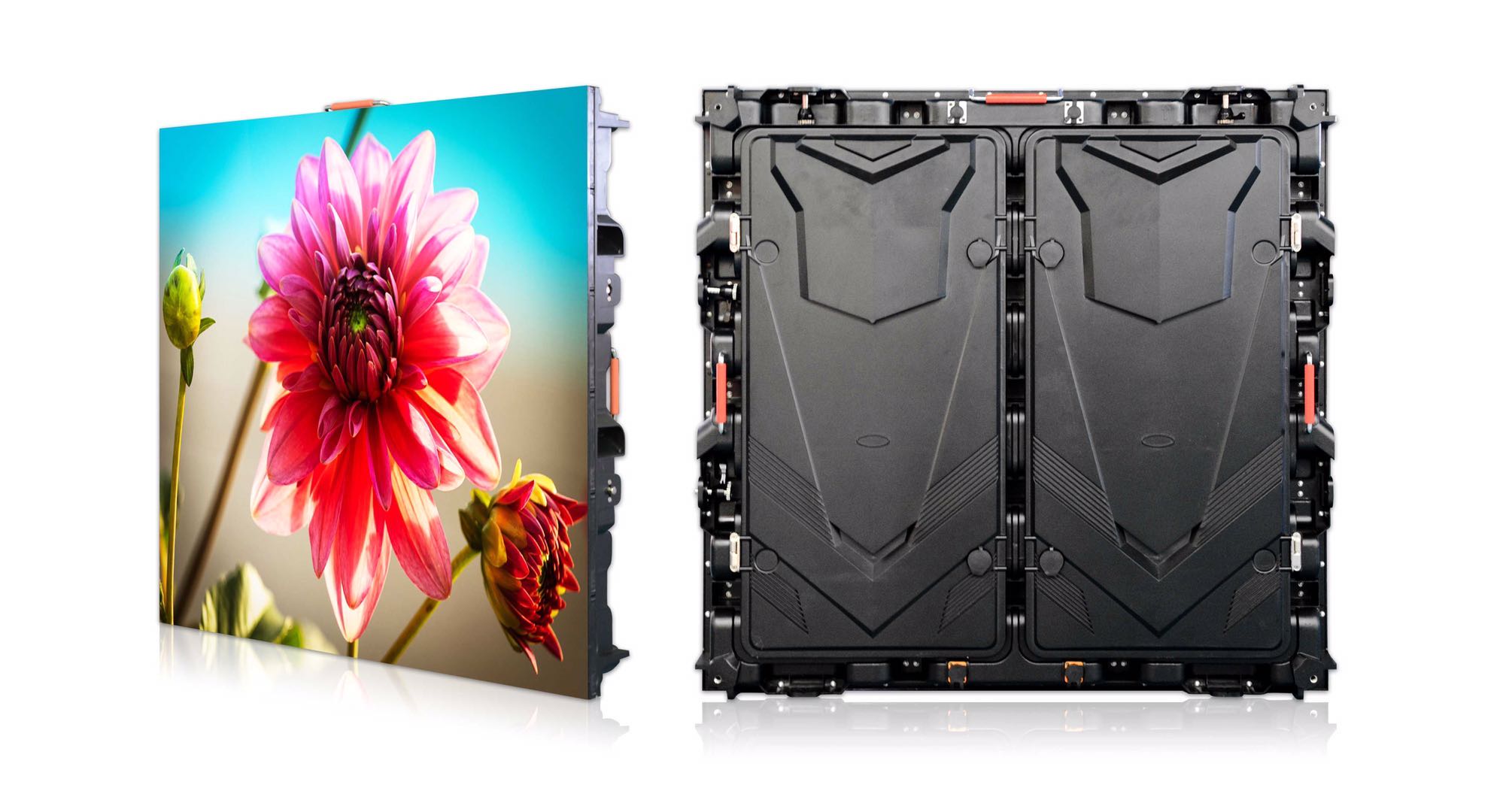

Visualpower 960*960mm dual maintenance LED display design uses standard aluminum die casting cabinet, with standard 320*320mm compatible for different pixel pitch.
it can be used for all kinds of outdoor LED signage applications.
The modules support both front and back service, suitable for wall mount displays, single post led displays. it can leave back maintenance space or not.
All the cables can go through the cabinets side, all cables hidden inside the cabinets.
Visualpower Outdoor Dual maintenance Fixed Installation 320-320mm LED Display Series | |||||
Model | P4 | P5.33 | P6.67 | P8 | P10 |
Pixel pitch | 4.0mm | 5.33mm | 6.667mm | 8.0mm | 10.0mm |
Pixel configuration | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
LED brand | Nationstar | Nationstar | Nationstar | Nationstar | Nationstar |
Driver IC | ICN2153 | ICN2153 | ICN2153 | ICN2153 | ICN2153 |
Cabinet Type | Aluminum die casting dual maintenance | Aluminum die casting dual maintenance | Aluminum die casting dual maintenance | Aluminum die casting dual maintenance | Aluminum die casting dual maintenance |
Scan rate | 1/8 scanning, constant current | 1/7-8 scanning, constant current | 1/6 scanning, constant current | 1/5 scanning, constant current | 1/2 scanning, constant current |
Module size (W×H) | 320*320MM | 320*320MM | 320*320MM | 320*320MM | 320*320MM |
Resolution per module | W80 x H 80pixels | W60 x H 60pixels | W48 x H 48pixels | W40 x H 40pixels | W32 x H 32pixels |
Standard cabinet dimension(W×H×D) | 960×960×110mm | 960×960×110mm | 960×960×110mm | 960×960×110mm | 960×960×110mm |
Pixel resolution/cabinet (W×H) | 240 x 240pixels | 180 x 180pixels | 144 x 144pixels | 120 x 120pixels | 96 x 96pixels |
Resolution/sqm | 62500 dots/㎡ | 35200 dots/㎡ | 22,477 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
Minimum viewing distance | Minimum 4 meters | Minimum 5 meters | Minimum 6 meters | Minimum 8 meters | Minimum 10 meters |
Brightness | 6000cd/sqm | 5500cd/sqm | 6000cd/sqm | 6000cd/sqm | 6800cd/sqm |
Gray scale | 16 bit, 8192 steps | 16 bit, 8192 steps | 16 bit, 8192 steps | 16 bit, 8192 steps | 16 bit, 8192 steps |
Color Number | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Module Display port | HUB75E | HUB75E | HUB75E | HUB75E | HUB75E |
Display Mode | Synchronous with video source | Synchronous with video source | Synchronous with video source | Synchronous with video source | Synchronous with video source |
Refresh rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
Viewing angle(degree) | H/160,V/140 | H/160,V/140 | H/160,V/140 | H/160,V/140 | H/160,V/140 |
Temperature range | -20℃ to +60℃ | -20℃ to +60℃ | -20℃ to +60℃ | -20℃ to +60℃ | -20℃ to +60℃ |
Ambient Humidity | 10%-99% | 10%-99% | 10%-99% | 10%-99% | 10%-99% |
Service access | front and rear | front and rear | front and rear | front and rear | front and rear |
Standard cabinet weight | 30kgs/㎡ | 30kgs/㎡ | 30kgs/㎡ | 30kgs/㎡ | 30kgs/㎡ |
Max.current/module | 15A | 14A | 13A | 13A | 15A |
Max.Power Consumption | 800w/sqm | 700 w/sqm | 635 w/sqm | 635 w/sqm | 800 w/sqm |
Ave. Power Consumption | 250W/sqm | 250W/sqm | 250W/sqm | 200W/sqm | 250W/sqm |
Protection Level | Front: IP65 Rear: IP54 | Front: IP65 Rear: IP54 | Front: IP65 Rear: IP54 | Front: IP65 Rear: IP54 | Front: IP65 Rear: IP54 |
Lifetime to 50% brightness | 75,000hr | 75,000hr | 75,000hr | 75,000hr | 75,000hr |
LED Failure Rate | <0,00001 | <0,00001 | <0,00001 | <0,00001 | <0,00001 |
MTBF | > 10.000 hours | > 10.000 hours | > 10.000 hours | > 10.000 hours | > 10.000 hours |
Input power cable | AC110V /220V | AC110V /220V | AC110V /220V | AC110V /220V | AC110V /220V |
Signal input | DVI, HDMI | DVI, HDMI | DVI, HDMI | DVI, HDMI | DVI, HDMI |
