Event rental led display

» Event rental led display

    • Description
    • Specifications

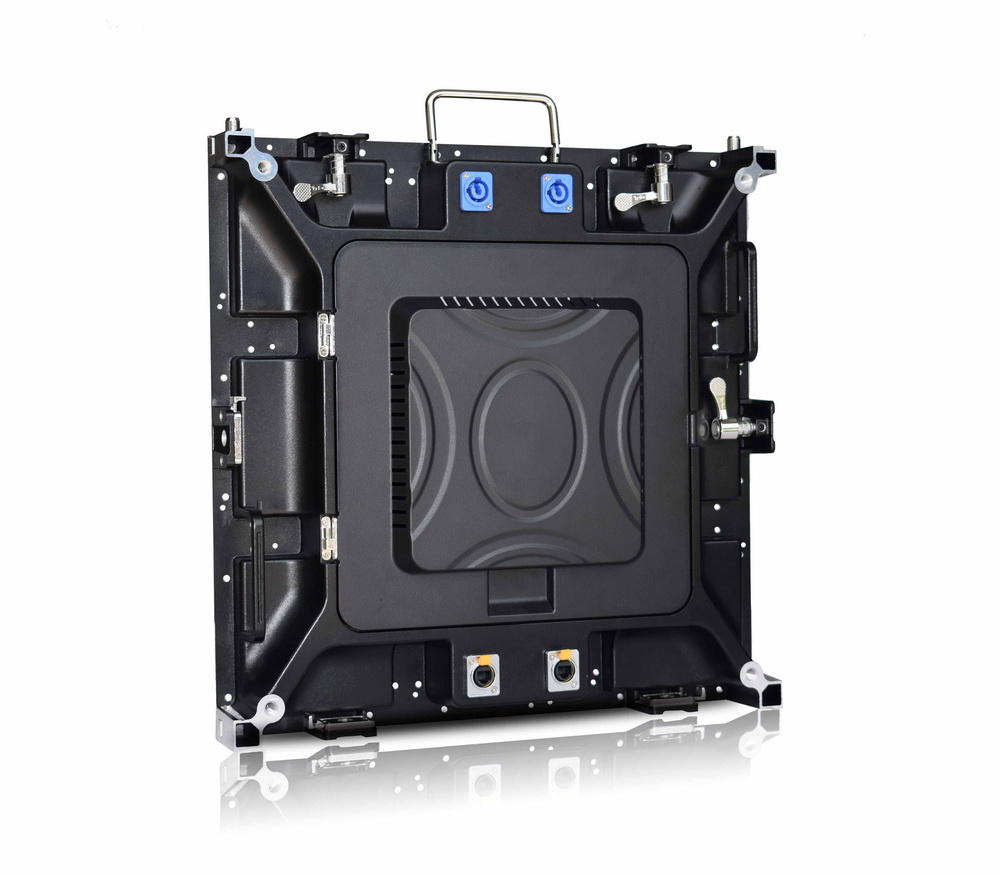

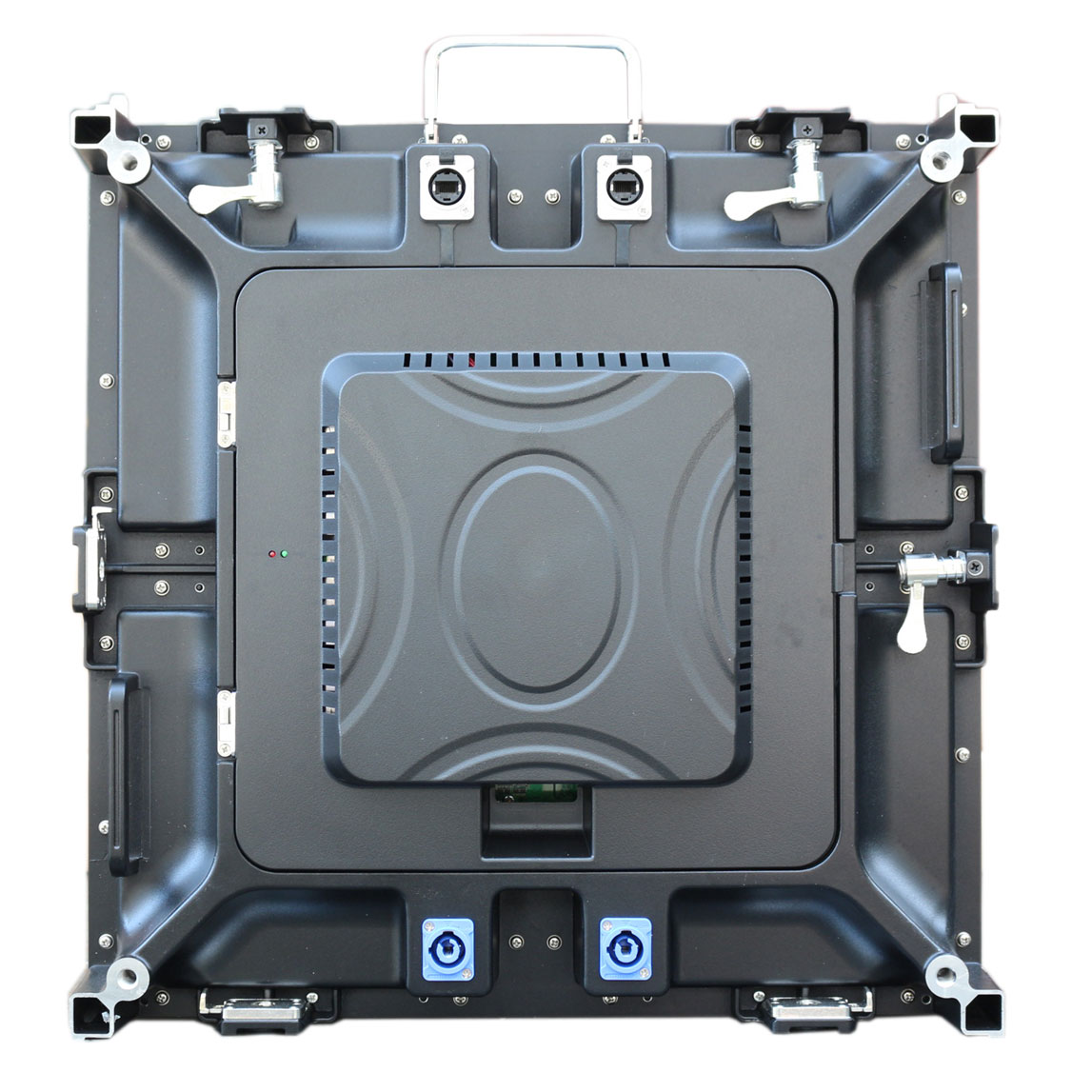

    480*480mm aluminum die casting cabinet design is universal use for P2.0, P2.5 and P1.875mm indoor rental led displays.

    Precise mould design, seamless connection, and with high refresh driver IC, refresh rate can reach 3840HZ.

    For all kinds of indoor event and stage rental, and commercial led displays, it can all work fine.

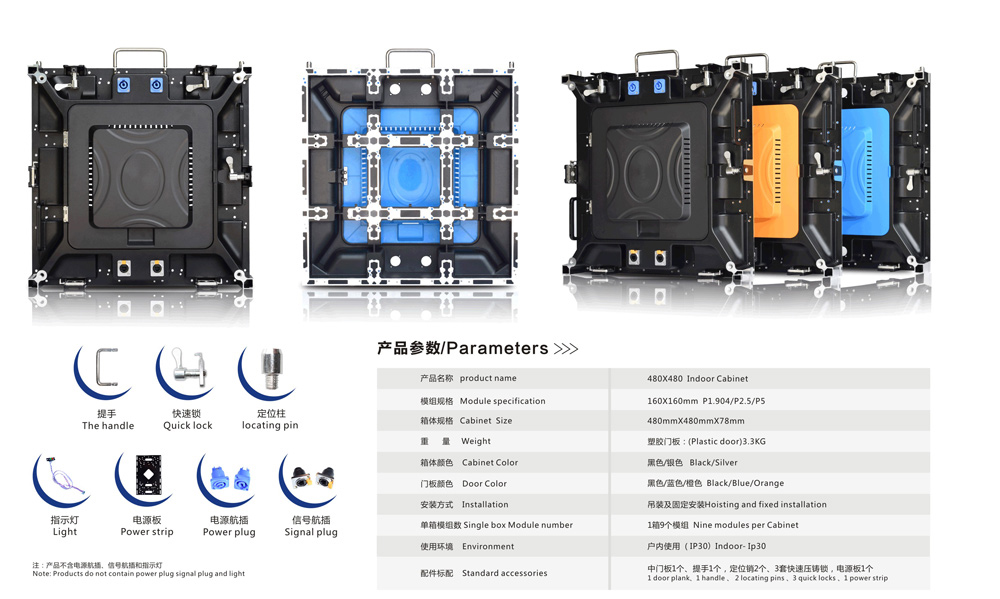

    480*480mm common mould event rental led display series
    Model P1.875-1/32 scan indoor P2.0-1/32 scan indoor P2.5-1/32 scan indoor
    Pixel configuration SMD1515 black led lamp SMD2121 black led lamp SMD2121 black led lamp
    Pixel pitch 1.875mm 2.0mm 2.5mm
    Scan rate 1/32 scanning, constant current 1/32 scanning, constant current 1/32 scanning, constant current
    Module size （W×H) 240*240MM 240*240MM 240*240MM
    Resolution per module W 128 x H 128 pixels W 120 x H 120pixels W 96 x H 96pixels
    Standard cabinet dimension(W×H×D) 480×480×85mm 480×480×85mm 480×480×85mm
    Pixel resolution/cabinet (W×H) 256 x 256pixels 240 x 240 pixels 192 x 192pixels
    Resolution/sqm 284,444 dots/㎡ 250,000 dots/㎡ 160,000 dots/㎡
    Minimum viewing distance Minimum 1.8 meters Minimum 2 meters Minimum 2.5 meters
    Brightness 800CD/M2 800CD/M2 800CD/M2
    Gray scale 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps
    Color Number 281trillion 281trillion 281trillion
    Display Mode Synchronous with video source Synchronous with video source Synchronous with video source
    Refresh rate ≥3840HZ ≥3840HZ ≥3840HZ
    Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140
    Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
    Ambient Humidity 10%-99% 10%-99% 10%-99%
    Service access front and rear front and rear front and rear
    Standard cabinet weight 7.5kgs/cabinet 7.5kgs/cabinet 7.5kgs/cabinet
    Max.Power Consumption Max: 200w/panel Max: 200w/panel Max: 200w/panel
    Protection Level Front: IP43  Rear: IP31 Front: IP43  Rear: IP31 Front: IP43  Rear: IP31
    Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr
    LED Failure Rate <0,00001 <0,00001 <0,00001
    MTBF > 10.000 hours > 10.000 hours > 10.000 hours
    Input power cable AC110V /220V AC110V /220V AC110V /220V
    Signal input DVI DVI DVI
