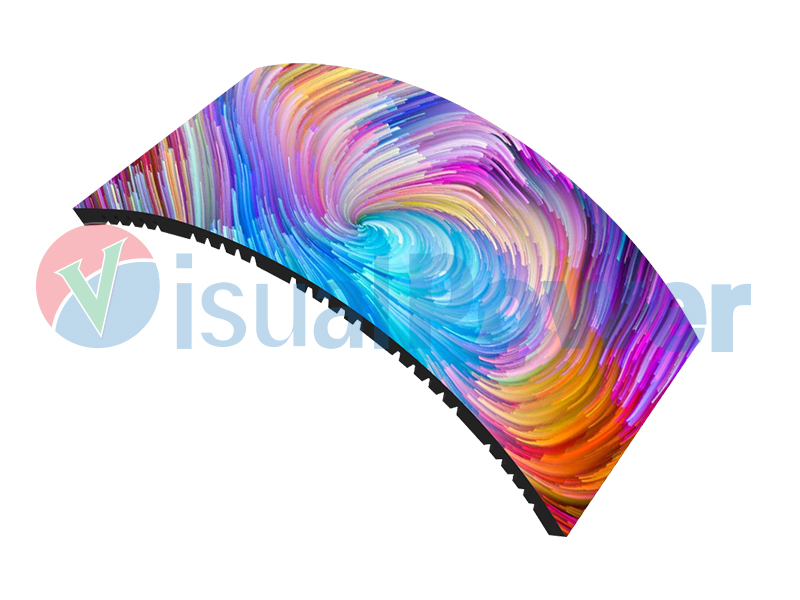

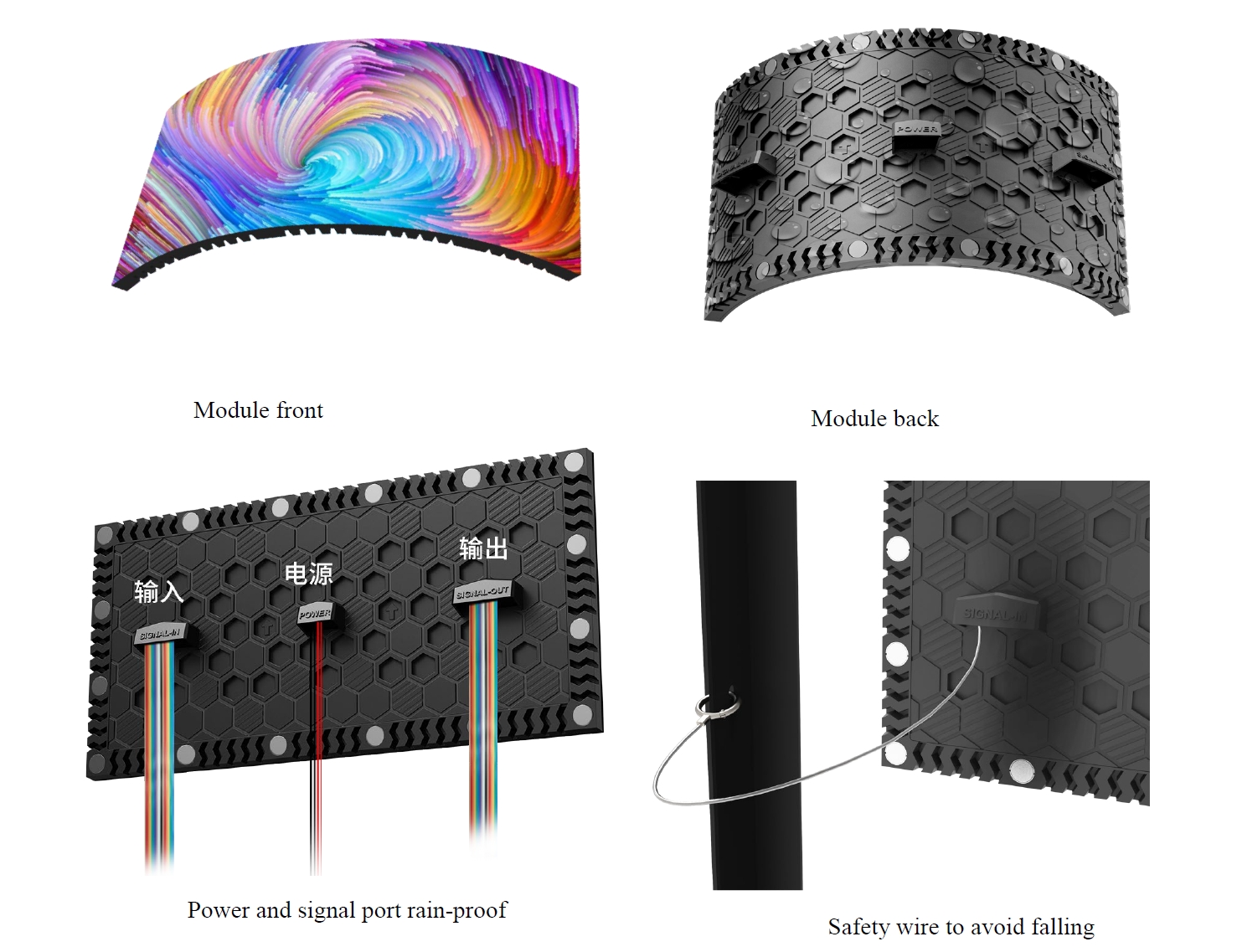

P4 outdoor flexible LED display module

Features of P4 outdoor water-proof flexible LED display module
With the development of the times, LED indoor soft modules can no longer meet the current people’s high standard requirements for the perfect combination of modeling and practical effects. However, the emergence of outdoor soft modules gets rid of the pain point that traditional soft modules are only installed in indoor environments without waterproof function, and the waterproof process before and after outdoor soft modules can meet the conditions of indoor/outdoor environment use at the same time, and has soft and bendable performance, and the waterproof advantages and high brightness display effect that traditional indoor soft modules cannot match. The module can be assembled: inner arc display surface, outer arc display surface, corner screen display surface. It can meet different outdoor shapes and is widely used in: outdoor central squares, exhibition venues, high-end shopping malls, airport stations and other public places and many other media release and display places and other wide application fields. Let the outdoor display go beyond the plane;
2. Main process characteristics
Module standardized size design 320X160mm, low current, low heat, high contrast, high refresh;
The bottom shell is equipped with 16 magnets, and the magnetic content of a single piece reaches 2500 GS, which makes the fit between the module and the box body stronger, the magnet is resistant to salt spray, and the corrosion resistance test is 48 hours, and the magnet height can be adjusted, effectively improving the flatness and use effect of the screen body;

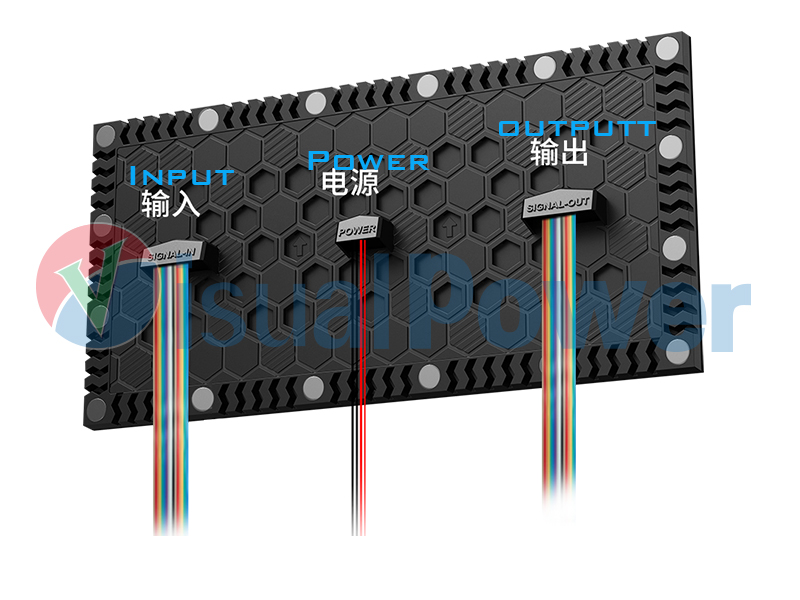

Support front installation/maintenance design, front and rear waterproof process to meet the requirements of IP65 waterproof level;
The module lamp surface is equipped with a protective mask to protect the lamp beads, anti-reflection, and prevent solid dust from entering;

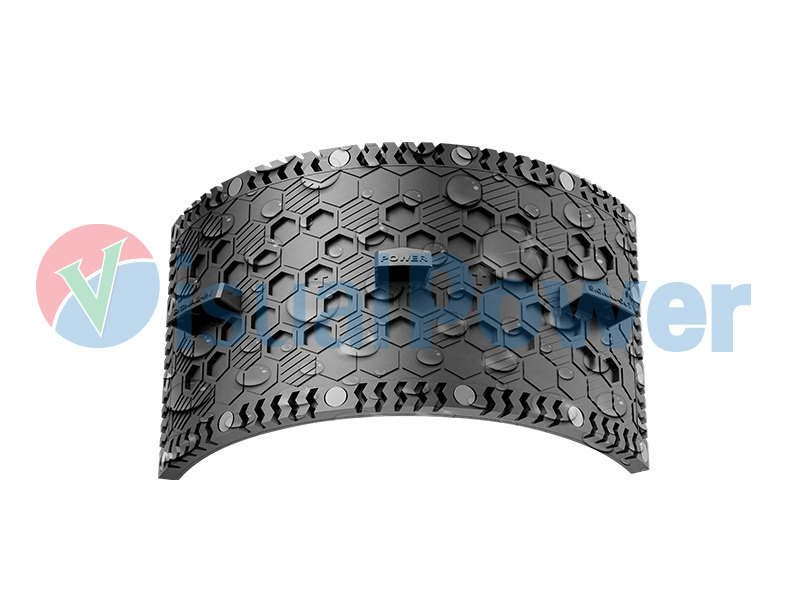

The back cover of the bottom shell adopts honeycomb design pattern with great visual beauty, and the back cover of the bottom shell can be removed, which is convenient for maintenance, better protects the components on the back of the module from being easily damaged, and prevents the module from entering the water;

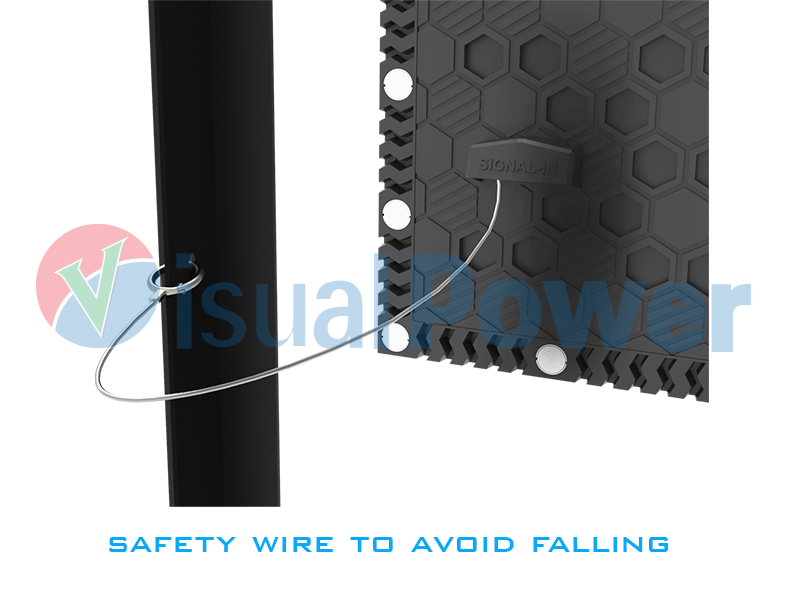

The anti-fall safety rope is combined with the strengthening magnet to add an extra layer of safety to prevent the module from falling due to strong wind in the environment or during high-altitude installation operations;
PCB board adopts flexible soft board, the bottom shell adopts silicone material, good flexibility, eliminate static electricity;

Maximum bending angle

Installation guide
