Creative Geometric LED Display

» Creative Geometric LED Display

Round shape DMX LED pixel light

CATEGORY AND TAGS:
Creative Geometric LED Display DMX LED fixture, DMX LED pixel, DMX LED spot light, nightclub design, nightclub lighting design

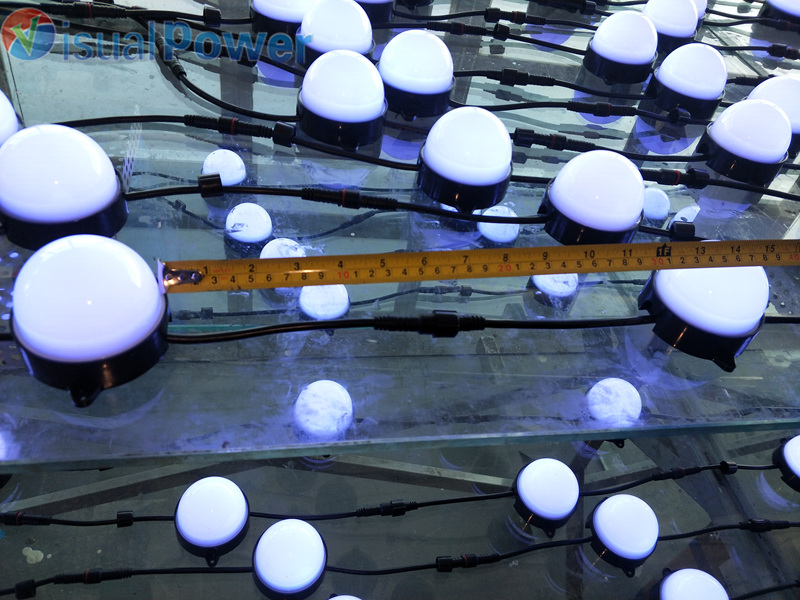

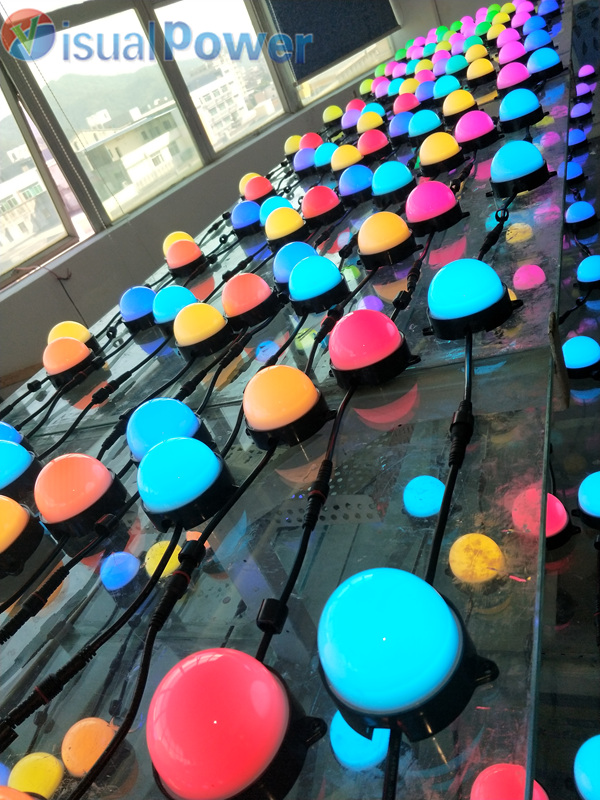

Round shape led pixel
Nightclub LED pixel
DMX LED pixel light
high brightness DMX LED spot light
Creative LED pixel light for nightclub design

enquiry

Description

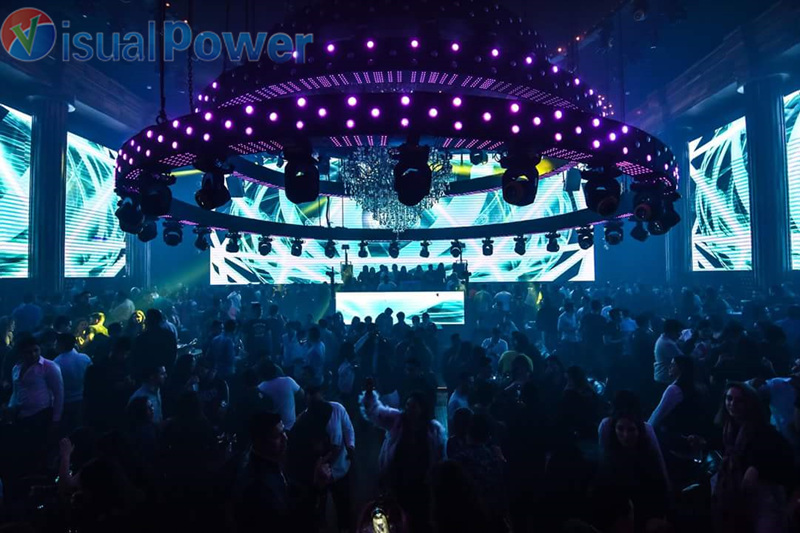

The round shape LED pixel light is a design widely used for nightclub or casino inner decorations. Controlled by DMX way, which can be compatible with Madrix software to create stunning effects.

Specs

DMX LED PIXEL LIGHT
dimension：¢80*H62（mm）
Material：black plastic base+milky PC cover
LED lamp type：SMD3535 RGB 3-in-1
Pixel configuration: 12pcs LED/pixel
Pixel pitch：P300mm(cables between two pixels) or other pitch
Gray scale：RGB 8BIT

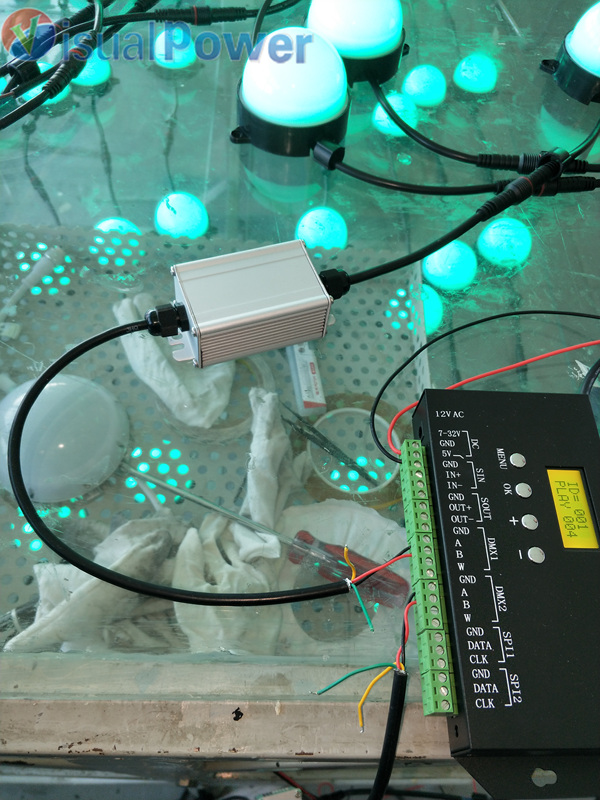

Control method:DMX512 single line(four core cable)
Working voltage：DC24V
Max. power：3W/pixel
Protection level: IP31 for indoor use
each pixel with 150mm flat cable length left and right with male and female connectors
Cable type: 4 core cable with male and female connector
