US-X3 series indoor fine pitch LED display
CATEGORY AND TAGS:Fine pitch LED dislay, Fixed LED Display Fine pitch led display, front service led display, P0.9 LED display, P1.25 LED display, P1.56 LED display, small pitch led display, super thin LED display, ultra slim LED display, ultra thin led display, wall paper LED display

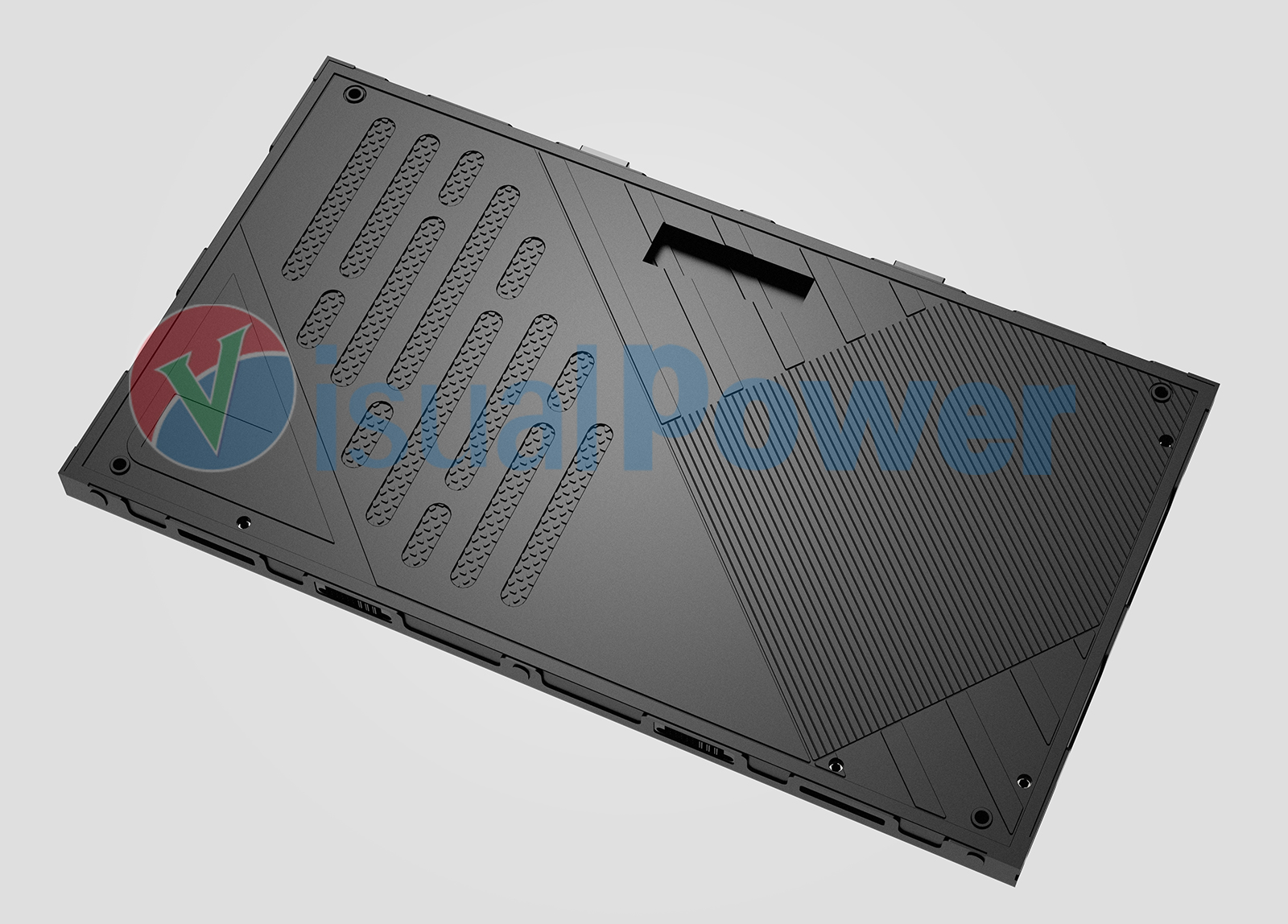

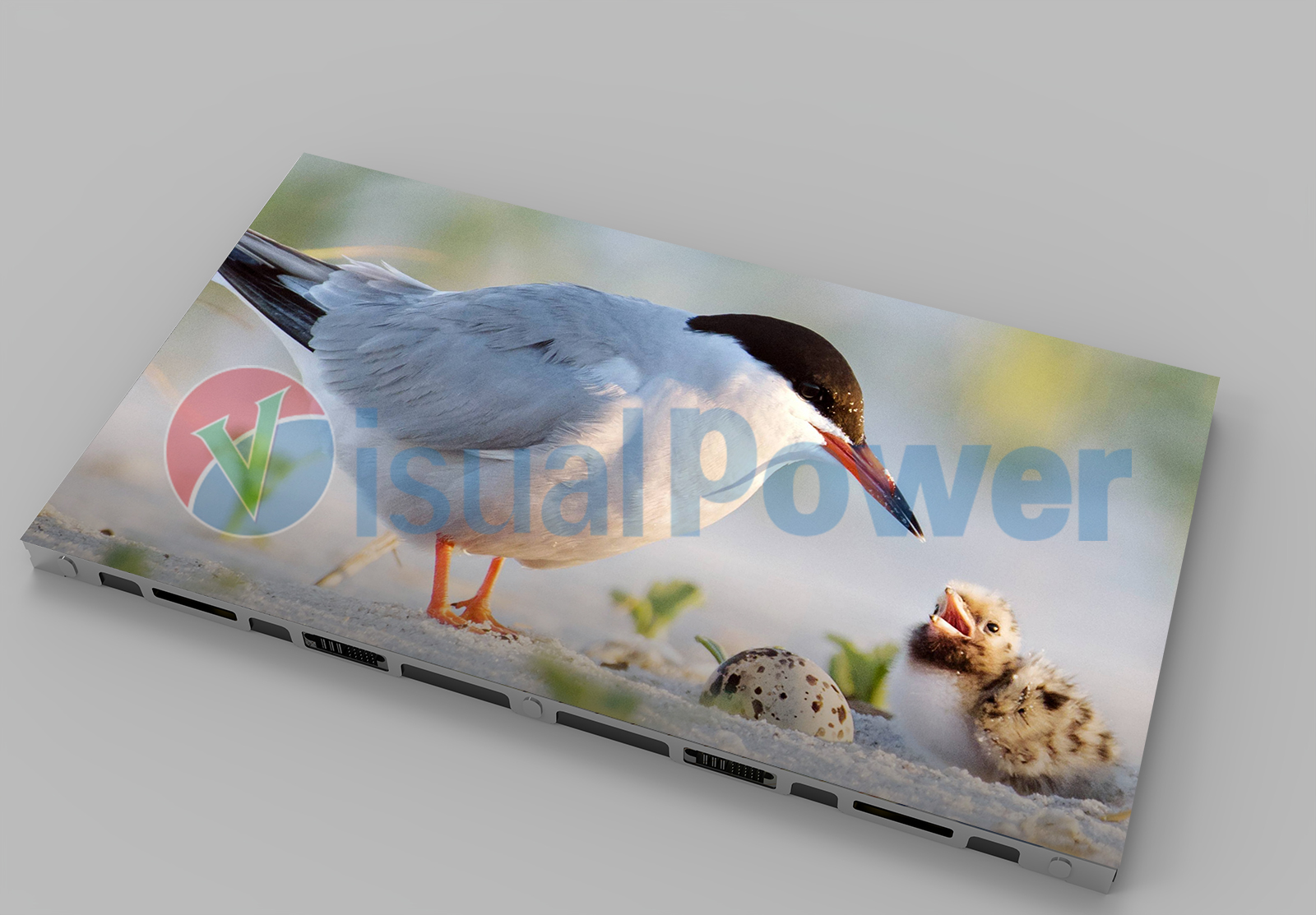

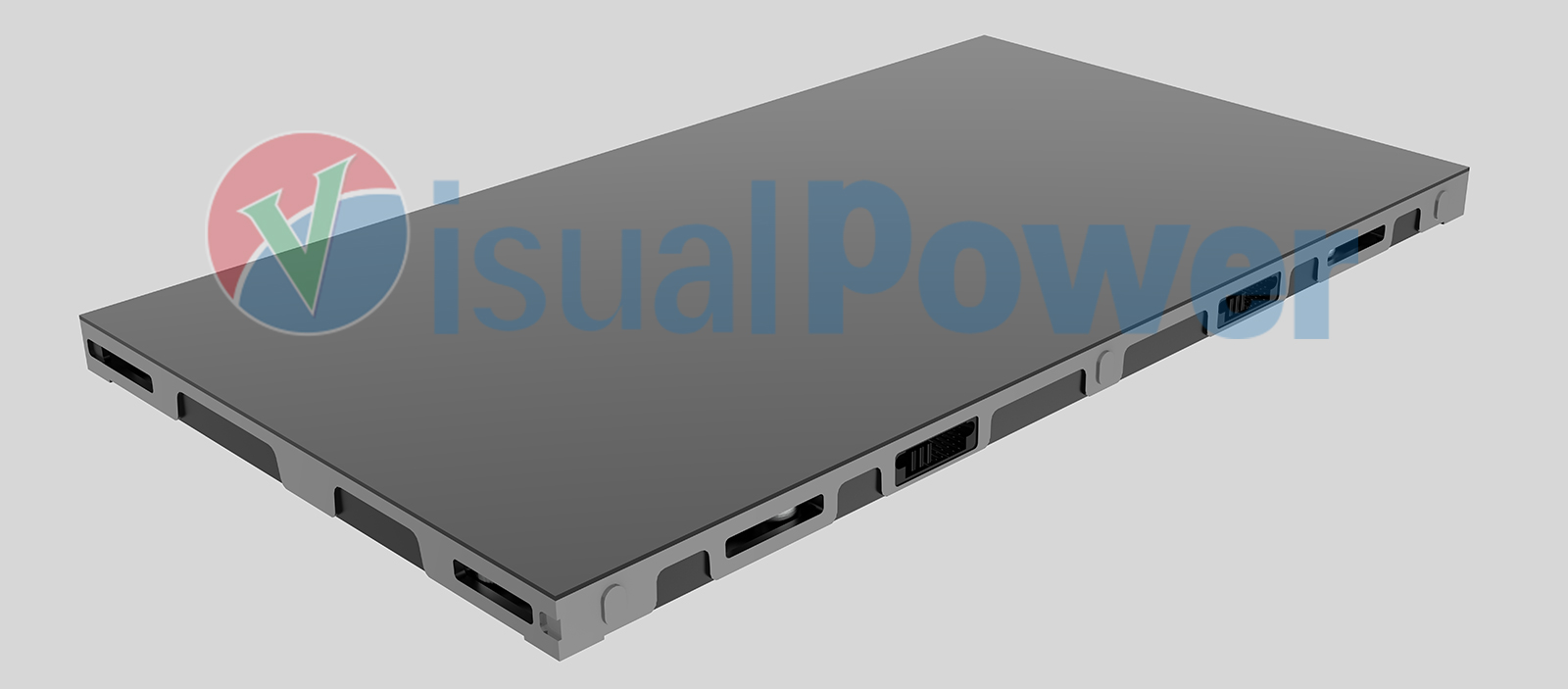

- Ultra slim 28mm thickness 600-337.5mm indoor fine pitch LED display
- Compatible with P0.9, P1.25, P1.56, P1.875, P2.5.
- Ultra light weight only 4.3kgs/cabinet

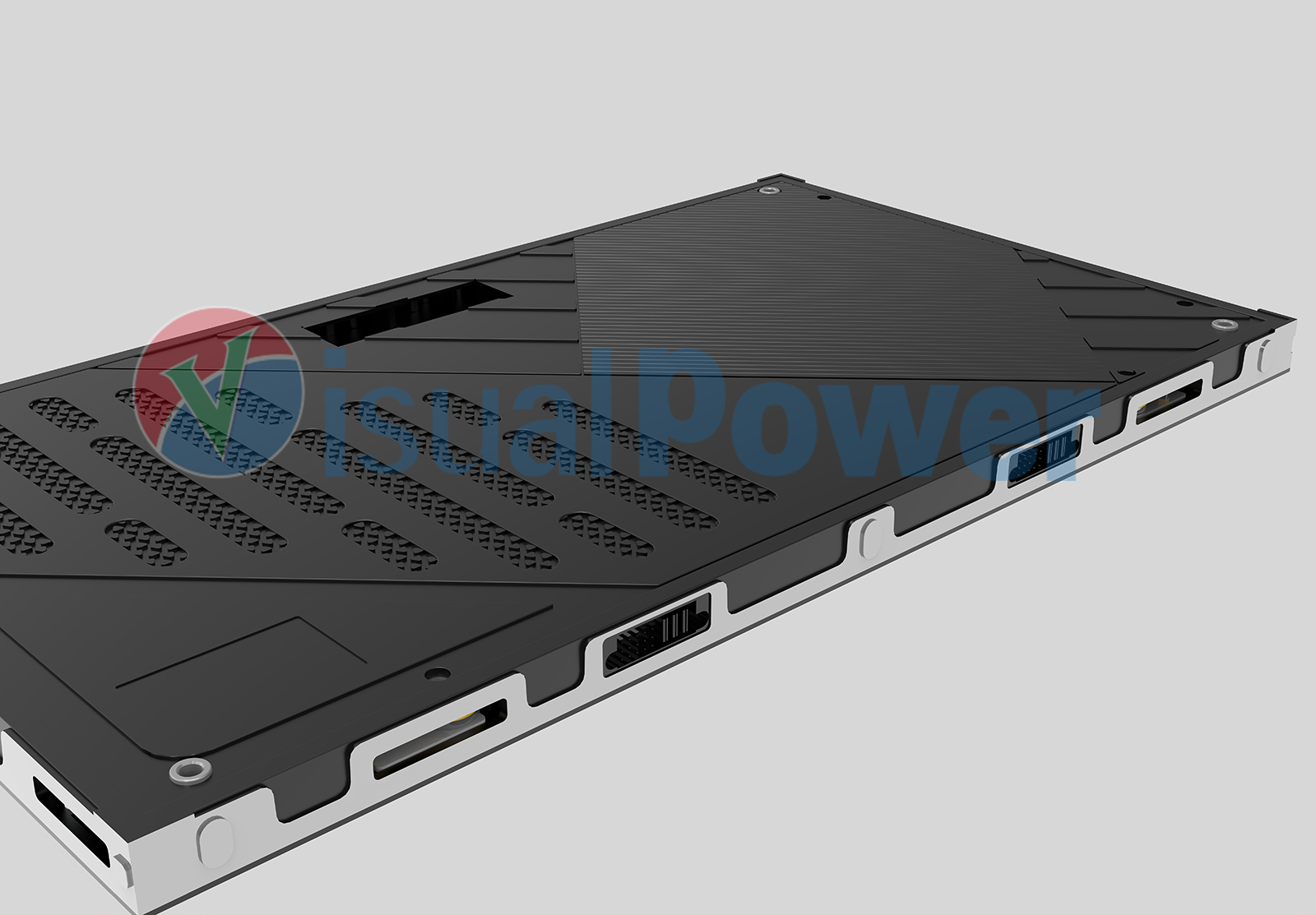

- Total front service and front installation

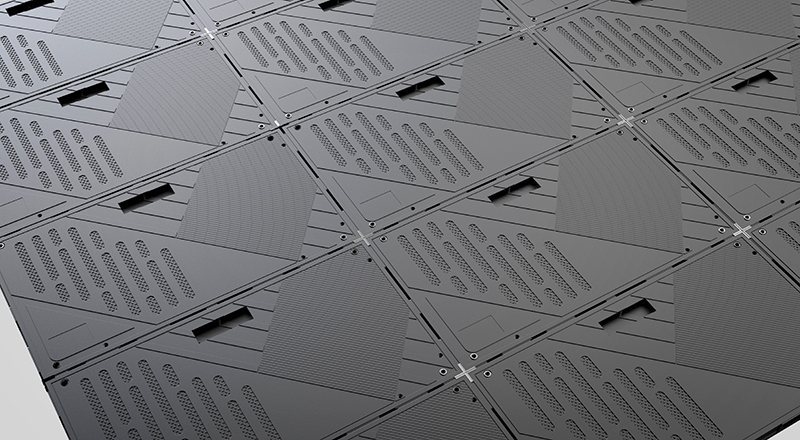

- Support wall direct mounting
- Aluminum die casting cabinet design.
- Easy to make 16:9 displays.
- All modules with intelligent memory flash driver IC on board.
- Support easy calibration
- Description
- specification
- Video show
US-X3 series fine pitch led display
US means “ultra slim”. it is the new generation 600-337.5mm indoor fine pitch LED display.
Which is the upgrade of first generation and L series 600-337.5mm indoor fine pitch LED display.

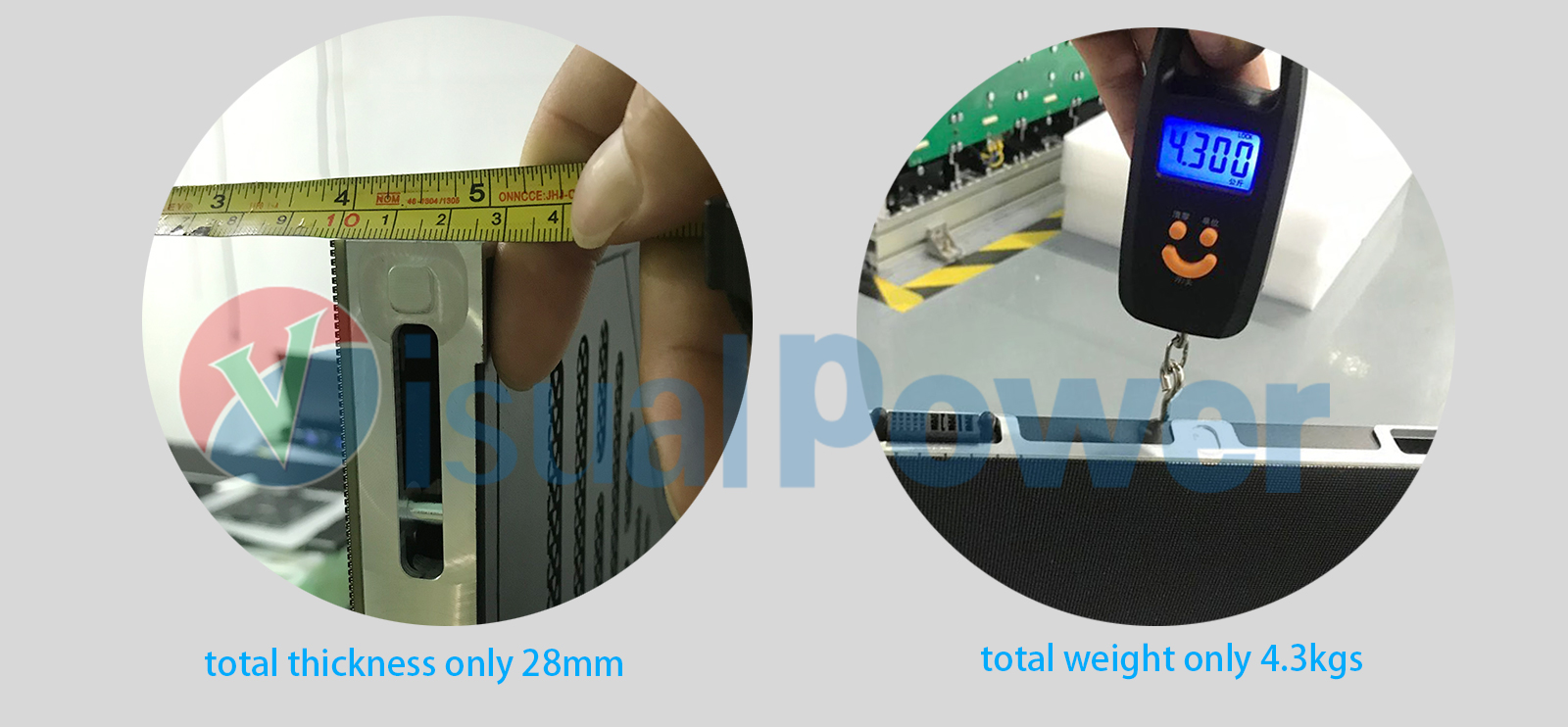

The cabinet and inner components are better arranged and making the cabinet thickness now only 28mm. weight only 4.3KGS/cabinet.

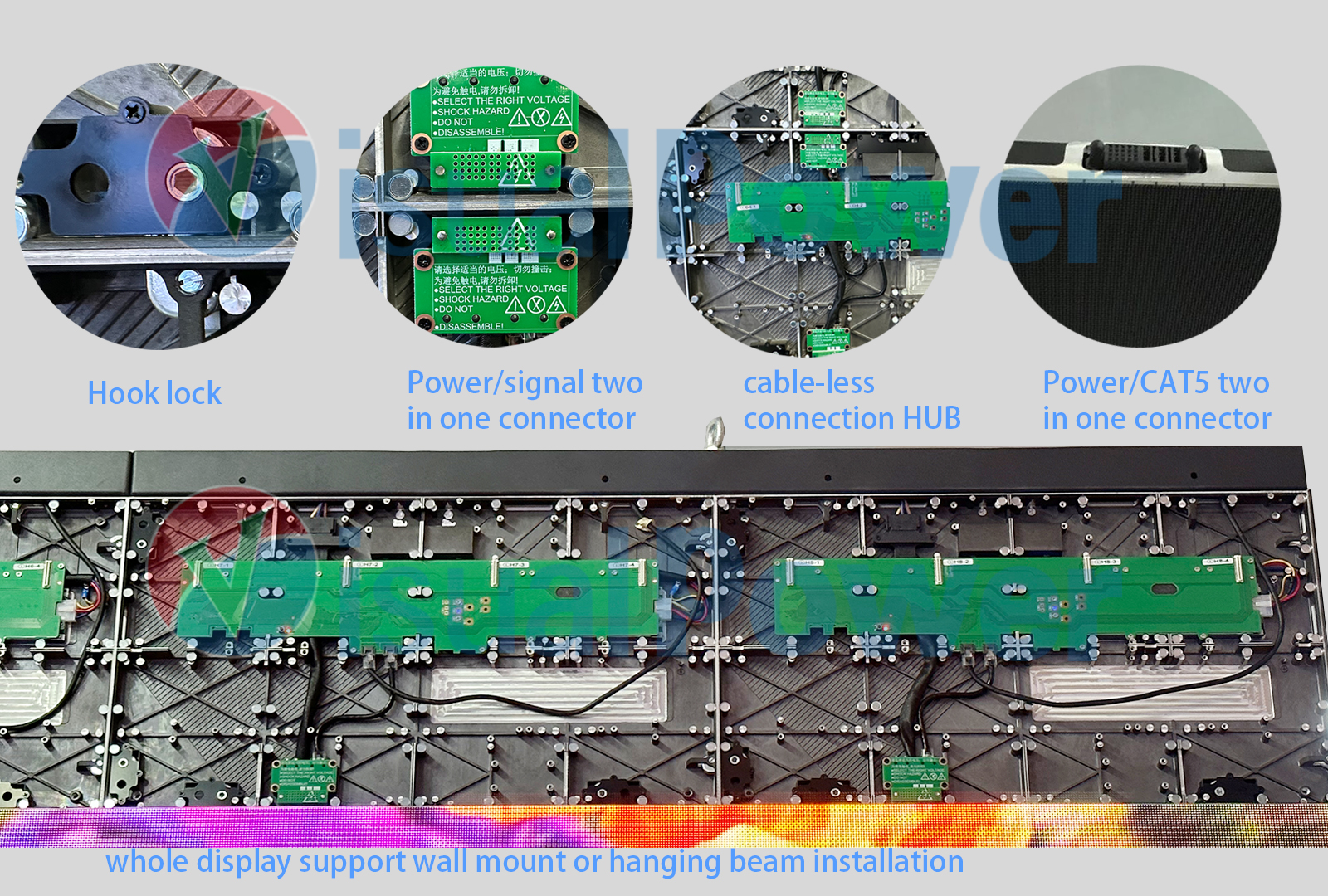

all parts including power supply, CAT5 cable, HUB board, and modules are cable-less connection. more integrated and reliable design.

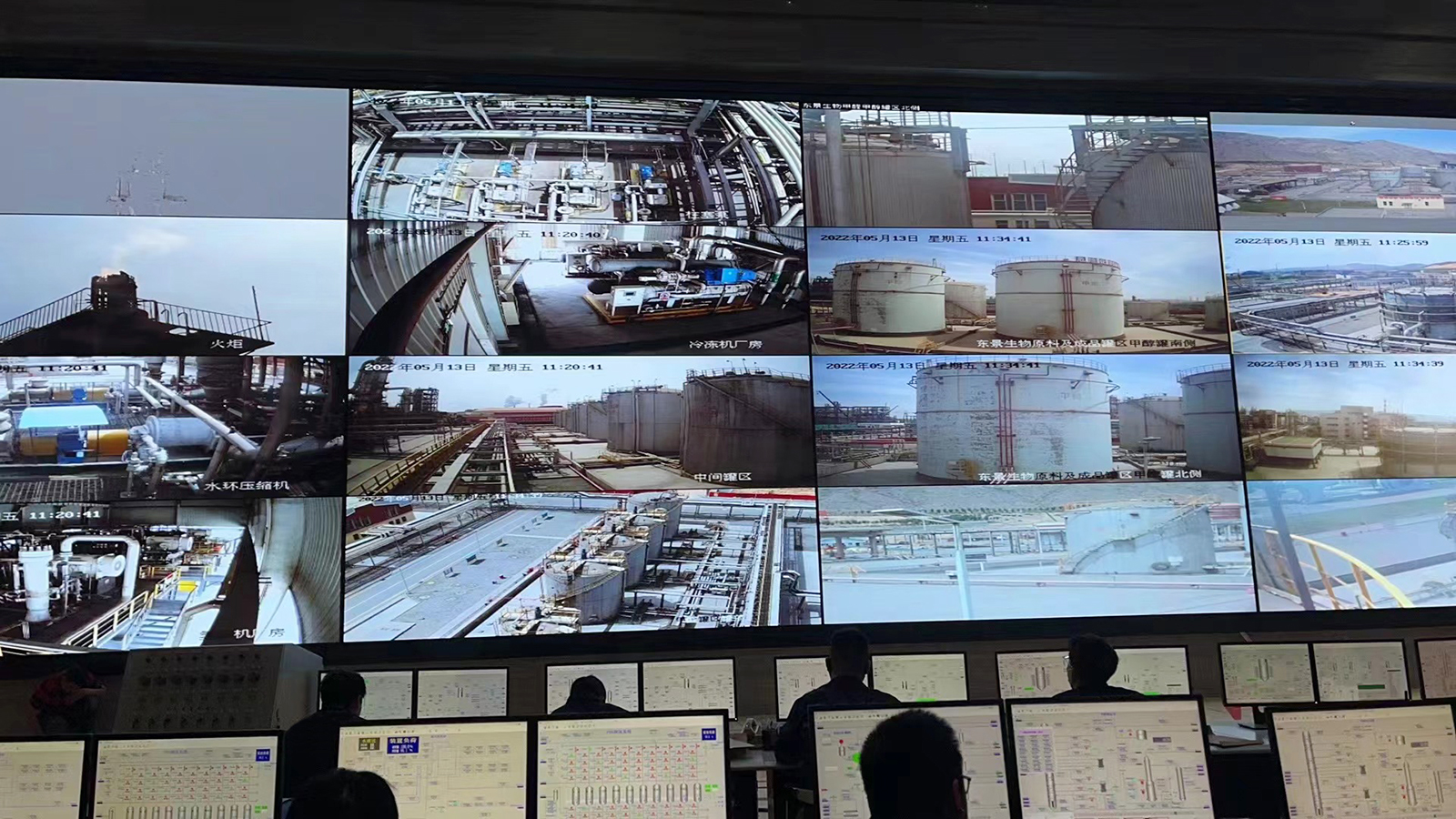

Fine pitch LED display P0.9, P1.25, P1.56 and P1.875 are widely used for meeting room, control room, TV station .etc
| Parameters | P0.9 | P1.25 | P 1.56 | P1.875 | P2.5 | |
| LED module | Pixel pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm | 2.5mm |
| Pixel configuration | Nationstar 4 in 1 common cathode LED | SMD1010 | SMD1212 | SMD1515 | SMD1515 | |
| LED lamp brightness | R:15-30mcd G:25-40mcd B:4-10mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
R:20-26mcd G:30-38mcd B:6-8mcd |
|
| LED wavelength | 620-630nm 535-545nm 464-480nm |
619-624nm 522-526nm 469-474nm |
619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | |
| With mask | no | no | yes | yes | yes | |
| Pixel density（pixels/㎡） | 1137778 | 640000 | 409600 | 284444 | 284444 | |
| Resolution（W×H） | 160x180 | 240x135 | 192x108 | 160x90 | 60x135 | |
| Module size（mm） | 150X168.75 | 300X168.75 | 300X168.75 | 300X168.75 | 150X337.5 | |
| LED Cabinet | Module Qty（W×H） | 4x2 | 2x2 | 2x2 | 2x2 | 4x1 |
| Resolution（W×H） | 640X360 | 480X270 | 384X216 | 320X180 | 240X135 | |
| Cabinet dimenison（mm） | 600(W)X337.5（H）x28(D) | 600(W)X337.5（H）x28(D) | 600(W)X337.5（H）x28(D) | 600(W)X337.5（H）x28(D) | 600(W)X337.5（H）x28(D) | |
| Cabinet Area（m2） | 0.2025 | 0.2025 | 0.2025 | 0.2025 | 0.2025 | |
| Cabinet weight（kg） | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 | |
| Cabinet Material | aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | |
| Flatness（mm） | ≦0.01 | <0.1 | <0.1 | <0.1 | <0.1 | |
| Optical features | Brightness（nits） | ≥450（6500K）adjustable | ≥550（6500K）adjustable | ≥650（6500K）adjustable | ≥800（6500K）adjustable | ≥800（6500K）adjustable |
| Color temperature（K） | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | |
| Viewing angle（H/V°） | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | |
| Light emitting offset | <3% | <3% | <3% | <3% | <3% | |
| brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | |
| contrast ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | |
| Brightness calibration | support | support | support | support | support | |
| color calibration | support | support | support | support | support | |
| Electric feature | Max.power（W/sqm） | 420 | 420 | 420 | 420 | 420 |
| Ave.power（W/sqm） | 100 | 100 | 100 | 100 | 100 | |
| Power supply | AC100~240V，47-63（Hz） | AC100~240V，47-63（Hz） | AC100~240V，47-63（Hz） | AC100~240V，47-63（Hz） | AC100~240V，47-63（Hz） | |
| Processing features | Frame frequency（Hz） | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| Driving mode | Constant drive，1/30 | Constant drive，1/45 | Constant drive，1/48 | Constant drive，1/45 | Constant drive，1/27 | |
| Gray scale | 65536 | 65536 | 65536 | 65536 | 65536 | |
| refresh rate（Hz） | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | |
| color depth | 16bit | 16bit | 16bit | 16bit | 16bit | |
| Video display | 2KHD，4KHD | 2KHD，4KHD | 2KHD，4KHD | 2KHD，4KHD | 2KHD，4KHD | |
| Usage | working temperature/humidity（℃/RH） | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH |
| storage temperature/humidity（℃/RH） | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH | -20 – 60 / 10%-85%RH | |
| Certificate | CE FCC | CE FCC | CE FCC | CE FCC | CE FCC | |
