1000×1000mm standard cabinet size

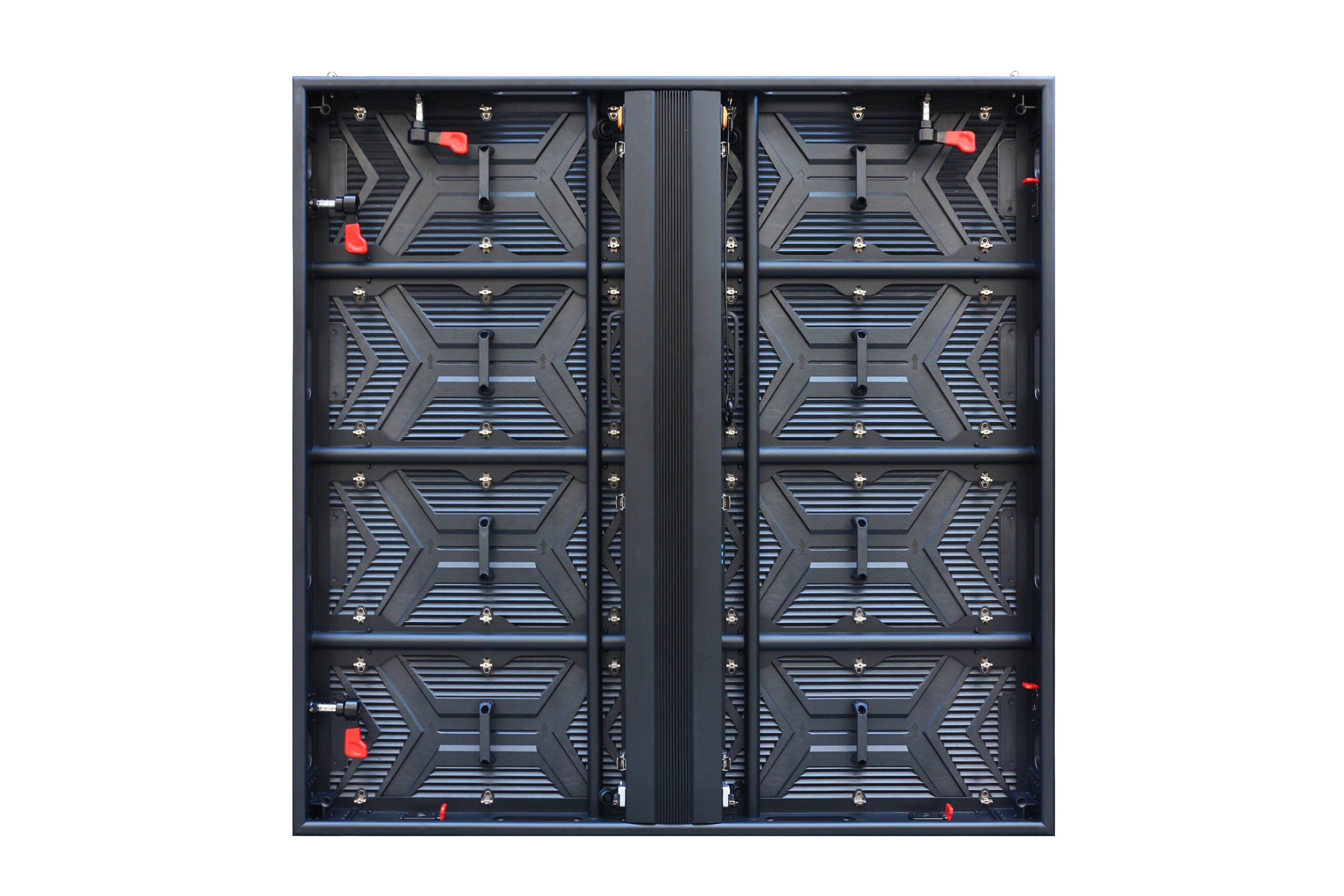

support both front and back service

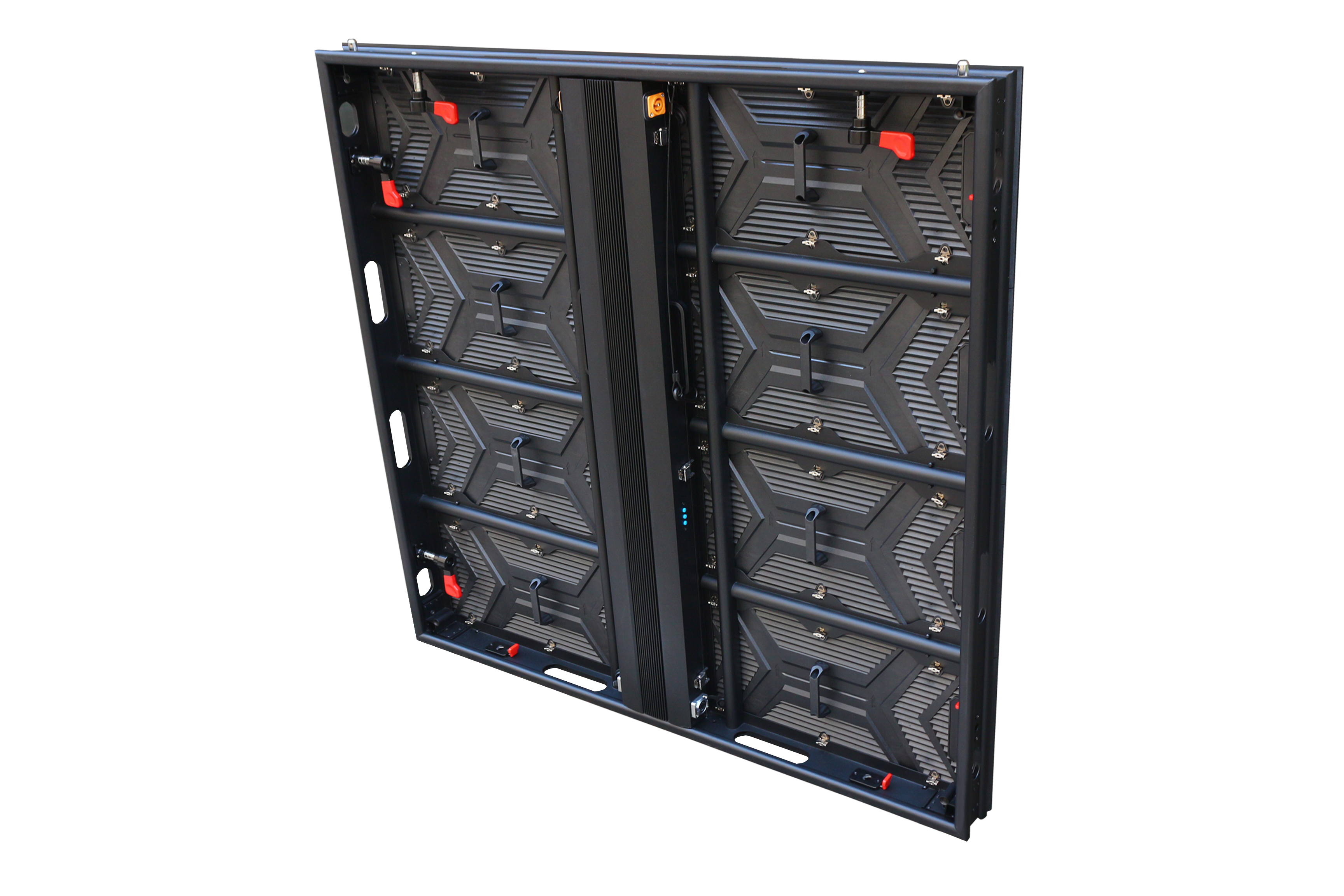

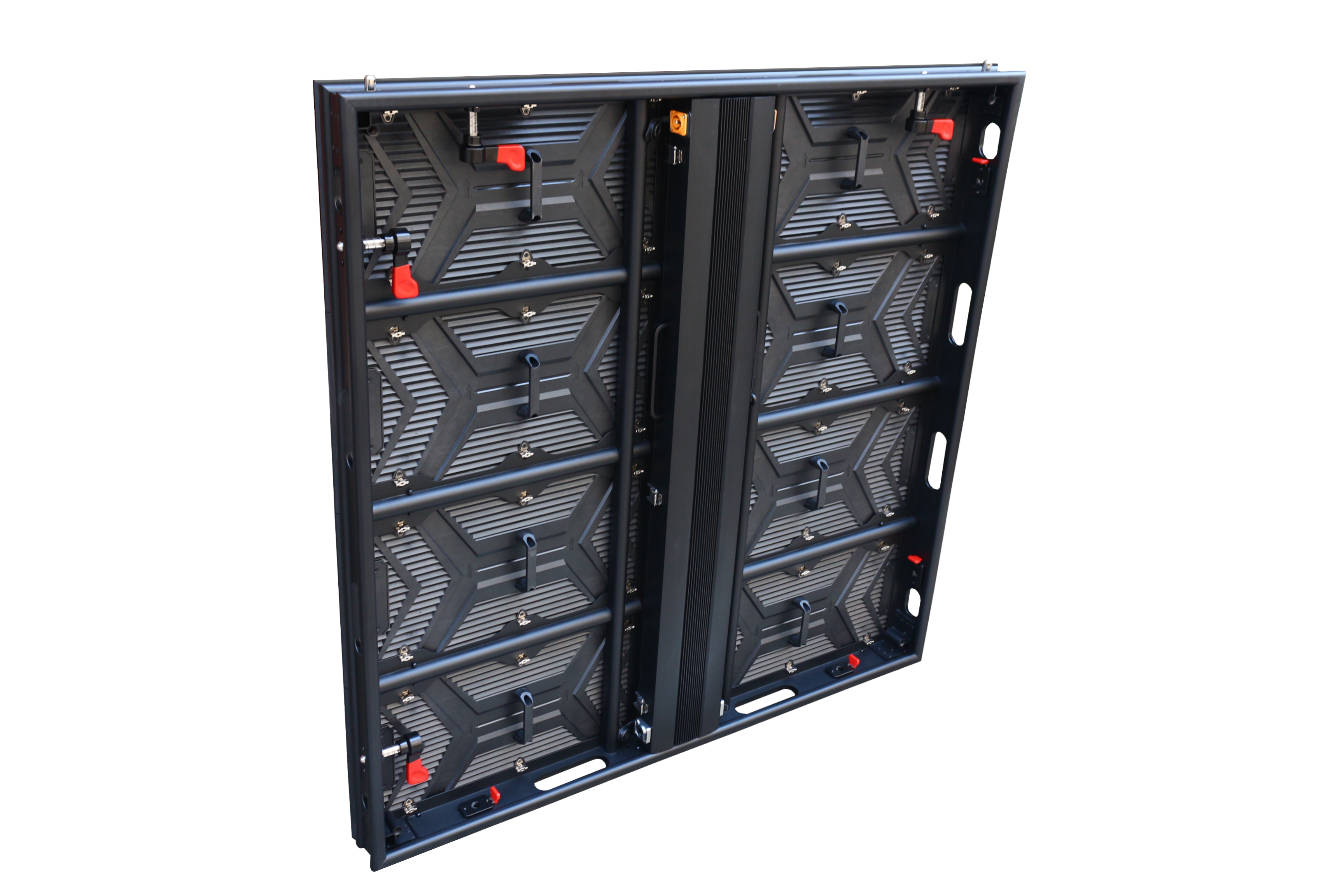

Aluminum profile cabinet
5000*250mm standard module size
easy to install and maintain

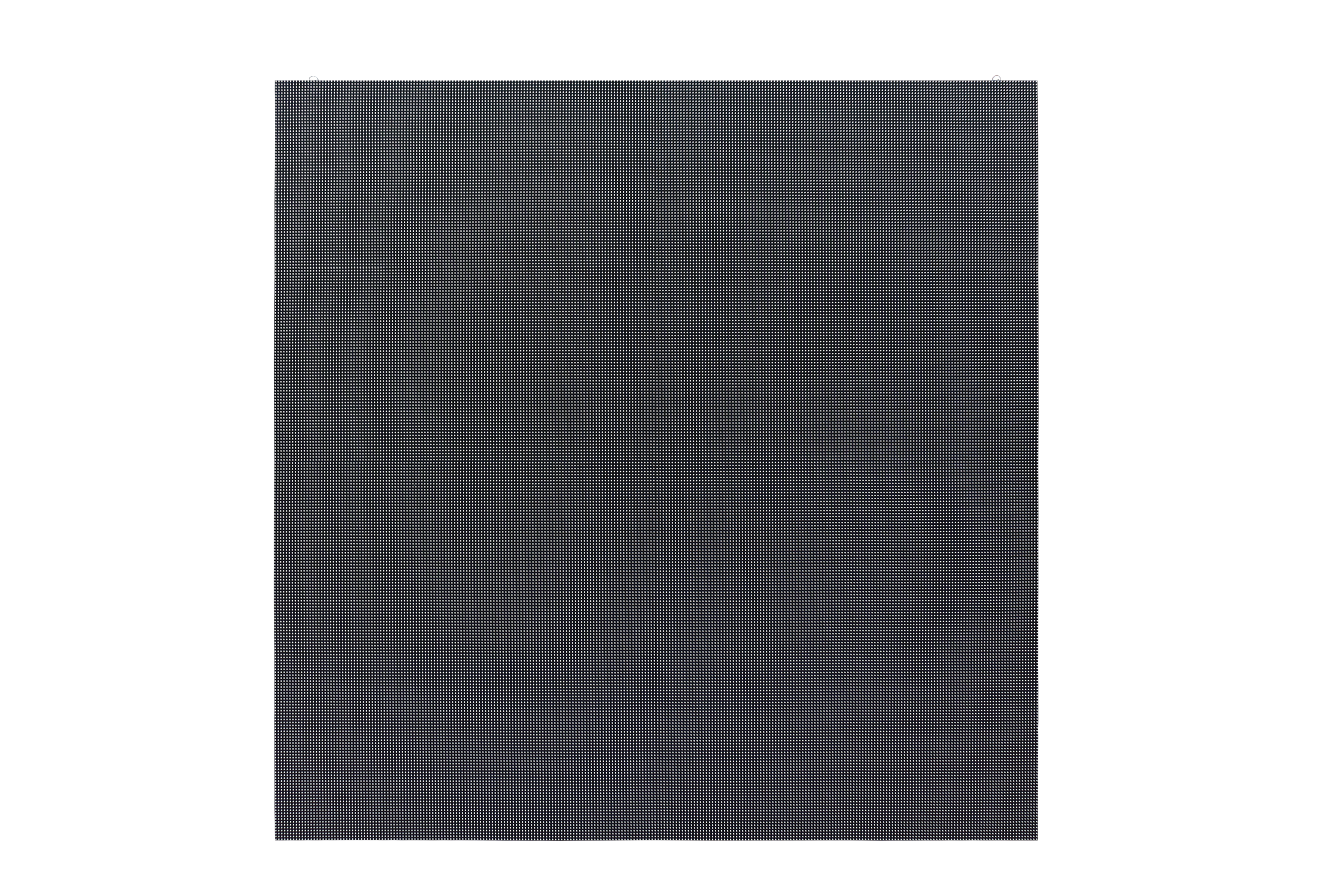

enquiryVisualpower VE series outdoor 1000×1000mm series LED display is designed for small to large size LED signs.
which can easily form differnet size displays.
and module size can do 45 degree slope to make rectangle shape LED displays.
All parts front service, front install.
rectangle LED display supported.
Specs | P3.91 |
|
P6.25 | P7.81 | P 10.42 | ||
LED Module | Pixel Pitch | 3.91mm | 4.81mm | 6.25mm | 7.81mm | 10.42mm | |
LED type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | ||
LED brand | Nationstar | Nationstar | Nationstar | Nationstar | Nationstar | ||
Pixel density(Px/㎡) | 65536 | 43264 | 25600 | 16384 | 9216 | ||
Module resolution(W×H) | 128x64 | 104x52 | 80x40 | 64x32 | 48x24 | ||
Module size(mm) | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 | ||
Cabinet | Module Qty(W×H) | 2x4 | 2x4 | 2x4 | 2x4 | 2x4 | |
Resolution(W×H) | 256x256 | 208x208 | 160x160 | 128x128 | 96x96 | ||
Cabinet size(mm) | 1000(W)X 1000(H)x85(D) | 1000(W)X 1000(H)x85(D) | 1000(W)X 1000(H)x85(D) | 1000(W)X 1000(H)x85(D) | 1000(W)X 1000(H)x85(D) | ||
Area(㎡) | 1 | 1 | 1 | 1 | 1 | ||
Cabinet weight(kg) | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 | ||
Cabinet Material | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | ||
Flatness(mm) | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 | ||
Optical | Brightness(nits) | ≥5500 | ≥5500 | ≥6000 | ≥6500 | ≥7000 | |
Color temperature(K) | 3200—9300adjustable | 3200—9300adjustable | 3200—9300adjustable | 3200—9300adjustable | 3200—9300adjustable | ||
Viewing angle(H/V°) | H:±160°/V:±140° | H:±160°/V:±140° | H:±160°/V:±140° | H:±160°/V:±140° | H:±160°/V:±140° | ||
center offset | <3% | <3% | <3% | <3% | <3% | ||
Brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ||
Contrast ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | ||
Electrical | Max.power(W/㎡) | 800 | 800 | 800 | 800 | 800 | |
Ave.Power(W/㎡) | 200-250 | 200-250 | 200-250 | 200-250 | 200-250 | ||
Working voltage | AC100~240V,47-63(Hz) | AC100~240V,47-63(Hz) | AC100~240V,47-63(Hz) | AC100~240V,47-63(Hz) | AC100~240V,47-63(Hz) | ||
Proccessing | Maintenance way | front and back | front and back | front and back | front and back | front and back | |
frame frequency(Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | ||
scan | 1/16 | 1/13 | 1/8 | 1/4 | 1/2 | ||
Gray scale | 16384/16bits | 16384/16bits | 16384/16bits | 16384/16bits | 16384/16bits | ||
Refresh rate(Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ||
video display | 2KHD,4KHD | 2KHD,4KHD | 2KHD,4KHD | 2KHD,4KHD | 2KHD,4KHD | ||
Usage | IP rating | 65 | 65 | 65 | 65 | 65 | |
Best Viewing distance(m) | 4-50 | 5-150 | 6-150 | 8-200 | 10-300 | ||
working temperature/humidity(℃/RH) | -40–65 / 20%-90% | -40–65 / 20%-90% | -40–65 / 20%-90% | -40–65 / 20%-90% | -40–65 / 20%-90% | ||
Storage temperature/humidity(℃/RH) | -40–85 / 10%-95% | -40–85 / 10%-95% | -40–85 / 10%-95% | -40–85 / 10%-95% | -40–85 / 10%-95% | ||
Certificate | CE FCC | CE FCC | CE FCC | CE FCC | CE FCC |
