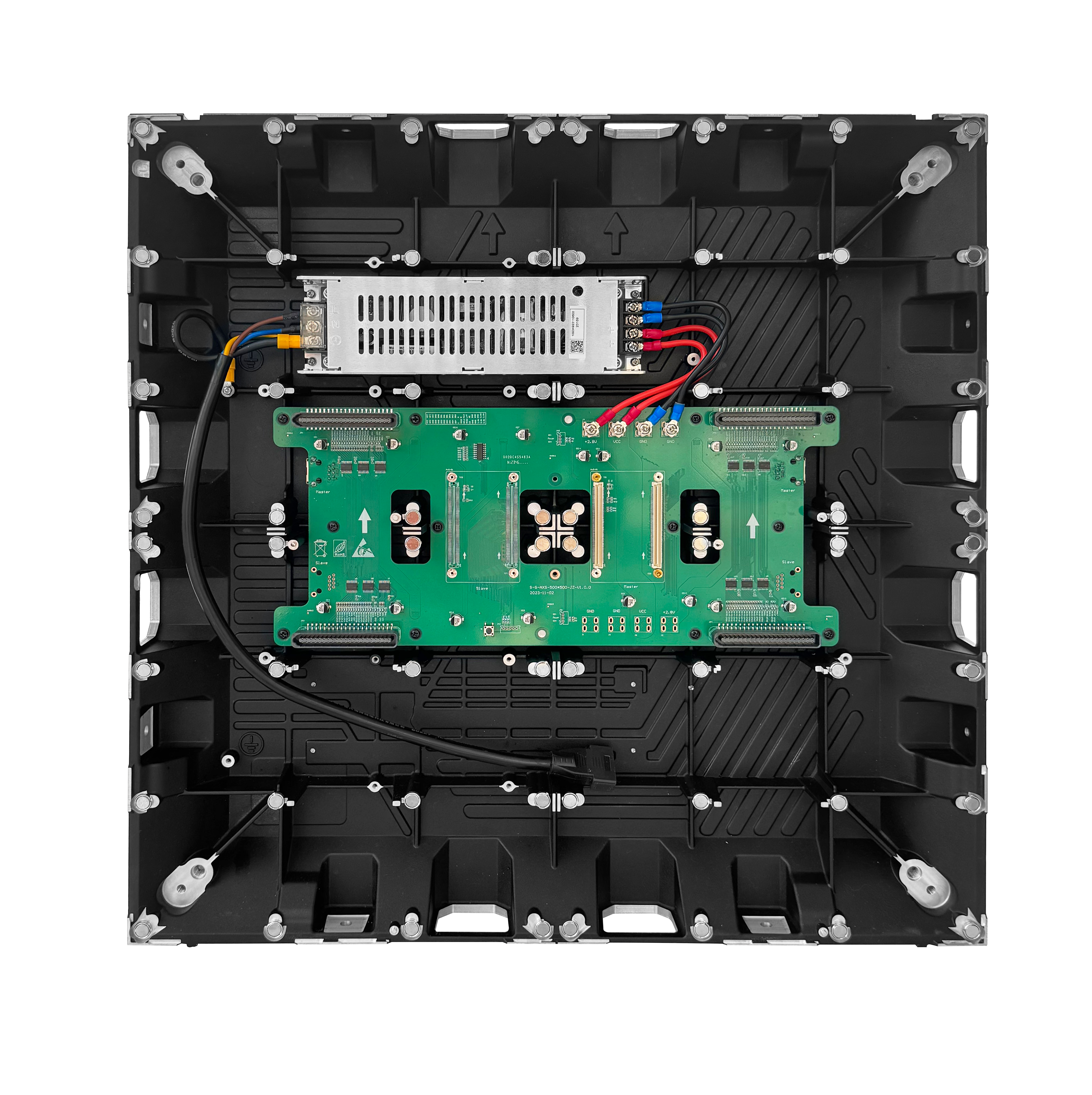

    Visualpower VX series COB LED display 500*500mm

    Compatible model P1.25, P1.56, P1.95

    hign contrast ratio, and clear image.

    multiple cabinet size and installation method.

    suitable for all kinds of indoor applications

    Downloadenquiry
    • Description
    • specification

    VX COB fine pitch LED display is designed for high end indoor applications such as meeting room, school, shopping malls, .etc.

    By COB technology, it can reach high contrast ratio and clear image quality.

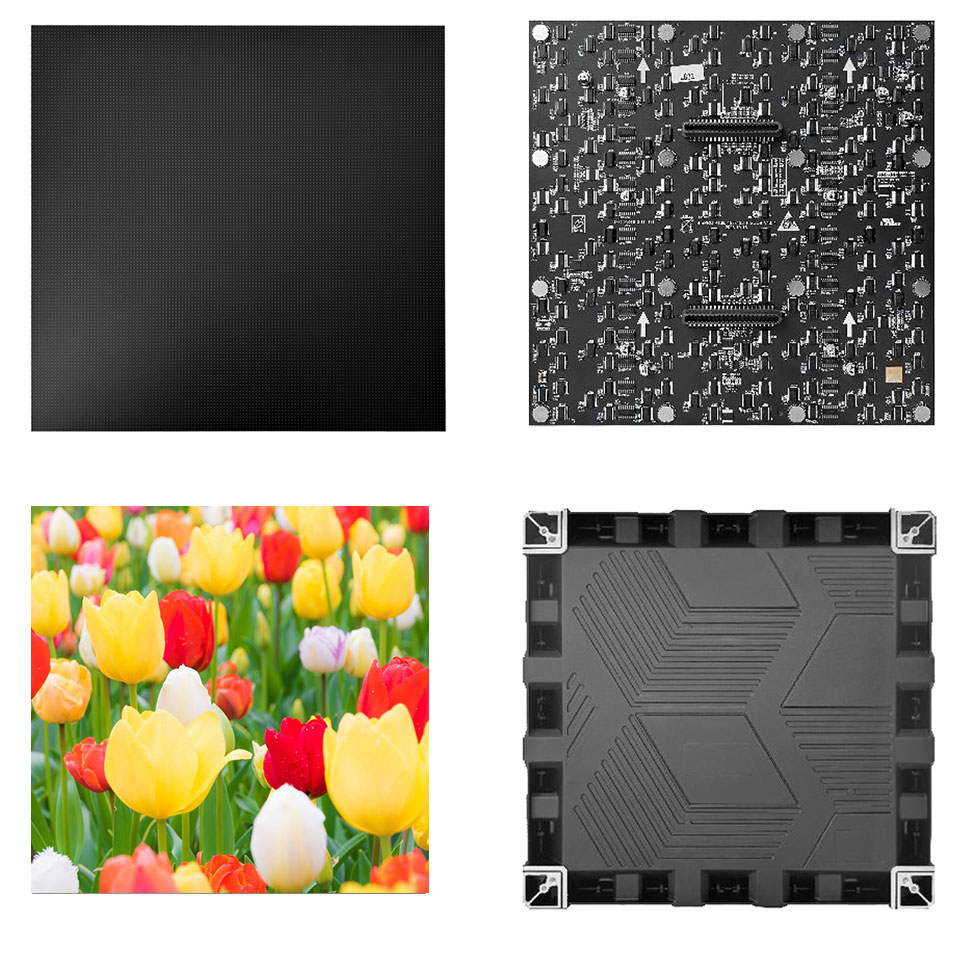

    LED Module design: Flip COB type 250*250mm standard size, compatible with most indoor fine pitch LED display model including P1.25, P1.56, P1.95.

    Module without bottom plastic frame design, ensuring the slim cabinet size and uniform flatness.

    all modules are cable-less connection without flexible power and signal cables.

    Uniform cabinet size of 500*500mm,1000*500mm, and 500*250mm. free combination thickness only 50mm, support fully front service and front installation close to the wall.

    Mutiple cabinet size of 500*500mm and 500*250mm, support left and right side cut into 45 degree to make rectangle shape displays.

    Cabient also support hanging installation

    cube shape led display possible

    It is suitable for most indoor led display applications.

    Pixel Pitch (mm) 1.25 1.5625 1.953 1.953
    Technical LED Configuration COB1R1G1B COB1R1G1B COB1R1G1B COB1R1G1B
    Physical Density (dot/m²) 640000 409600 262144 262144
    Module Size (W ×H ×D) 250*250 250*250 250*250 250*250
    mm
    Module Resolution (W×H) 200*200 160*160 128*128 128*128
    Cabinet Size (W ×H ×D) mm 500*500*51 500*500*51 500*500*51 500*500*51
    Cabinet Resolution(W ×H) 400*400 320*320 256*256 256*256
    Cabinet Material Die Casting Aluminum
    Scanning Mode 1/50 1/40 1/64 1/16
    Cabinet Flatness (mm) ≤0.10
    Grey Scale (Bit) 14Bit
    Protection Level IP65
    Installation/Service Method Front or back installation/Front service
    Brightness (cd/m2 ) 500-700cd/㎡ 2000cd/㎡
    Color Temperature 3200 - 9300 K adjustable
    Brightness Uniformity ≥98%
    Color Uniformity Within 0 . 003 Cx, Cy
    Horizontal/Vertical View Angle ≥170°
    Contrast Ratio ≥10000:1
    Optical Color Calibration of Single Dot Yes
    Brightness Calibration of Single Dot Yes
    Drive Mode Constant Current Drive
    Module Input Voltage DC 4.2V
    Module Max Current DC 6A
    Standard Receiving Card A8S-N A8S-N A8S-N A8S-N
    Refresh Frame Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
    Max Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
    Input Voltage AC 110-220V 110-220V 110-220V 110-220V
    Cabinet Max Power Consumption ≤460W/m2 ≤460W/m2 ≤460W/m2 ≤460W/m2
    Operation Cabinet Aver. Power Consumption ≤210W/m2 ≤210W/m2 ≤210W/m2 ≤210W/m2
    Working Temperature -20℃～+45℃
    Working Humidity 10%～95%RH
